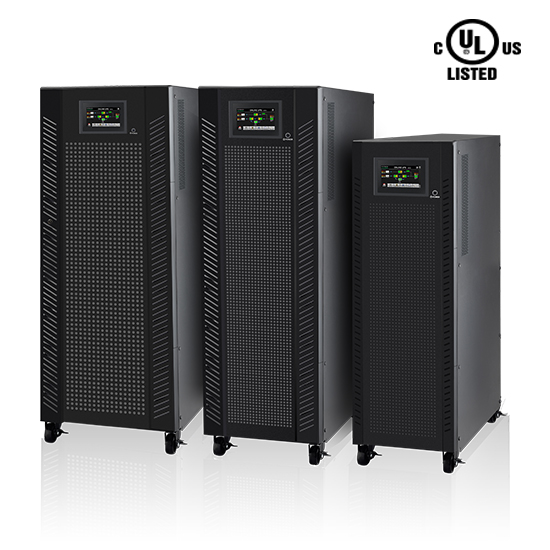

Galleon II 3P/3P 10K-40K UL

3-phase in / 3-phase out

Galleon II 3P/3P 10K-40K UL series are certified with UL and provides output power factor 1.0. Equipped with 4.3” touch colored LCD, this series are easy and comprehensive to set up functions and modify all setting parameters through the touch screen.

Add to Compare Add to Inquiry

Main Features

True double-conversion
DSP technology guarantees high performance
4.3 LCD for comprehensive ups information
Active power factor correction in all phases
50hz/60hz frequency converter mode
eco mode operation for energy saving (eco)
Emergency power off function (epo)
Generator compatible
Snmp+usb multiple communications
3-stage extendable charging design for optimized battery performance
Maintenance bypass available
Parallel operation with common battery
Dual AC inputs
Optional parallel operation

MODEL		Galleon II-3/3 10K(L)	Galleon II-3/3 15K(L)	Galleon II-3/3 20K(L)	Galleon II-3/3 30KL	Galleon II-3/3 40KL
CAPACITY		10 KVA / 10 KW	15 KVA / 15 KW	20KVA/20KW	30 KVA / 30 KW	40 KVA / 40 KW
PHASE		3-phase in/3-phase out	3-phase in/3-phase out	3-phase in/3-phase out	3-phase in/3-phase out	3-phase in/3-phase out
PARALLEL CAPABILITY		up to 3 units in parallel	up to 3 units in parallel	up to 3 units in parallel	up to 3 units in parallel	up to 3 units in parallel
INPUT
Voltage Range		190 - 520 VAC (3-phase) @ 50% load; 305 - 478 VAC (3-phase) @ 100% load	190 - 520 VAC (3-phase) @ 50% load; 305 - 478 VAC (3-phase) @ 100% load	190 - 520 VAC (3-phase) @ 50% load; 305 - 478 VAC (3-phase) @ 100% load	190 - 520 VAC (3-phase) @ 50% load; 305 - 478 VAC (3-phase) @ 100% load	190 - 520 VAC (3-phase) @ 50% load; 305 - 478 VAC (3-phase) @ 100% load
Nominal Voltage		3 x 400 VAC ( 3 Ph +N)	3 x 400 VAC ( 3 Ph +N)	3 x 400 VAC ( 3 Ph +N)	3 x 400 VAC ( 3 Ph +N)	3 x 400 VAC ( 3 Ph +N)
Frequency Range		46~54 Hz or 56~64Hz	46~54 Hz or 56~64Hz	46~54 Hz or 56~64Hz	46~54 Hz or 56~64Hz	46~54 Hz or 56~64Hz
Power Factor		≧ 0.99 @ 100% load	≧ 0.99 @ 100% load	≧ 0.99 @ 100% load	≧ 0.99 @ 100% load	≧ 0.99 @ 100% load
OUTPUT
Output Voltage		3 x 360*/380/400/415 (3 Ph +N)	3 x 360*/380/400/415 (3 Ph +N)	3 x 360*/380/400/415 (3 Ph +N)	3 x 360*/380/400/415 (3 Ph +N)	3 x 360*/380/400/415 (3 Ph +N)
AC Voltage Regulation (Batt. Mode)		± 1%	± 1%	± 1%	± 1%	± 1%
Frequency Range (Batt. Mode)		50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz	50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz	50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz	50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz	50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Transfer Time	AC Mode to Battery Mode	zero	zero	zero	zero	zero
Transfer Time	Inverter to Bypass	zero	zero	zero	zero	zero
Waveform (Batt. Mode)		Pure Sine Wave	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave
Current Crest Ratio		3:1 (max.)	3:1 (max.)	3:1 (max.)	3:1 (max.)	3:1 (max.)
Harmonic Distortion		≦ 2 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load)	≦ 2 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load)	≦ 2 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load)	≦ 2 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load)	≦ 2 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load)
Frequency Range (Synchronized Range)		46~54Hz or 56~64Hz	46~54Hz or 56~64Hz	46~54Hz or 56~64Hz	46~54Hz or 56~64Hz	46~54Hz or 56~64Hz
Overload	AC Mode	100-110% for 60 min, 110-125% for 10 min, >150% immediately	100-110% for 60 min, 110-125% for 10 min, >150% immediately	100-110% for 60 min, 110-125% for 10 min, >150% immediately	100-110% for 60 min, 110-125% for 10 min, >150% immediately	100-110% for 60 min, 110-125% for 10 min, >150% immediately
Overload	Battery Mode	100-110% for 60 min, 110-125% for 10 min, >150% immediately	100-110% for 60 min, 110-125% for 10 min, >150% immediately	100-110% for 60 min, 110-125% for 10 min, >150% immediately	100-110% for 60 min, 110-125% for 10 min, >150% immediately	100-110% for 60 min, 110-125% for 10 min, >150% immediately
EFFICIENCY
Battery Mode		94.5%	94.5%	94.5%	94.5%	94.5%
ECO Mode		98.5%	98.5%	98.5%	98.5%	98.5%
AC Mode		95.5%	95.5%	95.5%	95.5%	95.5%
BATTERY
Long-run Model	Model-Battery Type	Depending on the capacity of external batteries	Depending on the capacity of external batteries	Depending on the capacity of external batteries	Depending on the capacity of external batteries	Depending on the capacity of external batteries
Long-run Model	Model-Charging Current (max.)	1A ~ 12A (Adjustable)	1A ~ 12A (Adjustable)	1A ~ 12A (Adjustable)	1A ~ 12A (Adjustable)	1A ~ 12A (Adjustable)
Long-run Model	Model-Charging Voltage	136.5VDC ±10%	±13.65V*N (N = 16~20)	±13.65V*N (N = 16~20)	±13.65V*N (N = 16~20)	±13.65V*N (N = 16~20)
Long-run Model	Model-Numbers	20 pcs	32~40 pcs (Adjustable)	32~40 pcs (Adjustable)	32~40 pcs (Adjustable)	32~40 pcs (Adjustable)
Standard Model	Battery Type	12V/9Ah	12V/9Ah	12V/9Ah	12V/7Ah	12V/9Ah
Standard Model	Charging Current (max.)	1A~12A (Adjustable)	1A~12A (Adjustable)	1A~12A (Adjustable)	1A~12A (Adjustable)	1A~12A (Adjustable)
Standard Model	Charging Voltage	+/-136.5 VDC ± 10%	+/-218 VDC ± 10%	+/-218 VDC ± 10%	+/-218 VDC ± 10%	+/-218 VDC ± 10%
Standard Model	Numbers	(10+10)pcs	(16+16)pcs	(16+16)pcs	(16+16)pcs x 2 strings	(16+16)pcs x 2 strings
Standard Model	Typical Recharge Time	9 hours recover to 90% capacity	9 hours recover to 90% capacity	9 hours recover to 90% capacity	9 hours recover to 90% capacity	9 hours recover to 90% capacity
INDICATORS
LCD Panel		UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions	UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions	UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions	UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions	UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
ENVIRONMENT
Operating Temperature		0~40°C	0~40°C	0~40°C	0~40°C	0~40°C
Operating Humidity		<95% and non-condersing	<95% and non-condersing	<95% and non-condersing	<95% and non-condersing	<95% and non-condersing
Noise Level		Less than 55dB @ 1 Meter	Less than 58dB @ 1 Meter	Less than 58dB @ 1 Meter	Less than 65dB @ 1 Meter	Less than 70dB @ 1 Meter
PHYSICAL
Standard Model	Dimension, D X W X H (mm)	626 x 250 x 750	626 x 250 x 750	626 x 250 x 750	815 x 300 x 1000	815 x 300 x 1000
Standard Model	Net Weight (kgs)	124	139	139	225	250
Long-run Model	Dimension, D X W X H (mm)	626 x 250 x 750	626 x 250 x 750	626 x 250 x 750	815 x 300 x 1000	815 x 300 x 1000
Long-run Model	Net Weight (kgs)	28	43	43	60	61
MANAGEMENT
Optional SNMP		Power management from SNMP manager and web browser	Power management from SNMP manager and web browser	Power management from SNMP manager and web browser	Power management from SNMP manager and web browser	Power management from SNMP manager and web browser
Smart RS-232 / USB		Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8/10, Linux, and MAC	Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8/10, Linux, and MAC	Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8/10, Linux, and MAC	Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8/10, Linux, and MAC	Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8/10, Linux, and MAC

General

CAPACITY

Galleon II-3/3 10K(L)	10 KVA / 10 KW
Galleon II-3/3 15K(L)	15 KVA / 15 KW
Galleon II-3/3 20K(L)	20KVA/20KW
Galleon II-3/3 30KL	30 KVA / 30 KW
Galleon II-3/3 40KL	40 KVA / 40 KW

PHASE

Galleon II-3/3 10K(L)	3-phase in/3-phase out
Galleon II-3/3 15K(L)	3-phase in/3-phase out
Galleon II-3/3 20K(L)	3-phase in/3-phase out
Galleon II-3/3 30KL	3-phase in/3-phase out
Galleon II-3/3 40KL	3-phase in/3-phase out

PARALLEL CAPABILITY

Galleon II-3/3 10K(L)	up to 3 units in parallel
Galleon II-3/3 15K(L)	up to 3 units in parallel
Galleon II-3/3 20K(L)	up to 3 units in parallel
Galleon II-3/3 30KL	up to 3 units in parallel
Galleon II-3/3 40KL	up to 3 units in parallel

INPUT

Voltage Range

Galleon II-3/3 10K(L)	190 - 520 VAC (3-phase) @ 50% load; 305 - 478 VAC (3-phase) @ 100% load
Galleon II-3/3 15K(L)	190 - 520 VAC (3-phase) @ 50% load; 305 - 478 VAC (3-phase) @ 100% load
Galleon II-3/3 20K(L)	190 - 520 VAC (3-phase) @ 50% load; 305 - 478 VAC (3-phase) @ 100% load
Galleon II-3/3 30KL	190 - 520 VAC (3-phase) @ 50% load; 305 - 478 VAC (3-phase) @ 100% load
Galleon II-3/3 40KL	190 - 520 VAC (3-phase) @ 50% load; 305 - 478 VAC (3-phase) @ 100% load

Nominal Voltage

Galleon II-3/3 10K(L)	3 x 400 VAC ( 3 Ph +N)
Galleon II-3/3 15K(L)	3 x 400 VAC ( 3 Ph +N)
Galleon II-3/3 20K(L)	3 x 400 VAC ( 3 Ph +N)
Galleon II-3/3 30KL	3 x 400 VAC ( 3 Ph +N)
Galleon II-3/3 40KL	3 x 400 VAC ( 3 Ph +N)

Frequency Range

Galleon II-3/3 10K(L)	46~54 Hz or 56~64Hz
Galleon II-3/3 15K(L)	46~54 Hz or 56~64Hz
Galleon II-3/3 20K(L)	46~54 Hz or 56~64Hz
Galleon II-3/3 30KL	46~54 Hz or 56~64Hz
Galleon II-3/3 40KL	46~54 Hz or 56~64Hz

Power Factor

Galleon II-3/3 10K(L)	≧ 0.99 @ 100% load
Galleon II-3/3 15K(L)	≧ 0.99 @ 100% load
Galleon II-3/3 20K(L)	≧ 0.99 @ 100% load
Galleon II-3/3 30KL	≧ 0.99 @ 100% load
Galleon II-3/3 40KL	≧ 0.99 @ 100% load

OUTPUT

Output Voltage

Galleon II-3/3 10K(L)	3 x 360*/380/400/415 (3 Ph +N)
Galleon II-3/3 15K(L)	3 x 360*/380/400/415 (3 Ph +N)
Galleon II-3/3 20K(L)	3 x 360*/380/400/415 (3 Ph +N)
Galleon II-3/3 30KL	3 x 360*/380/400/415 (3 Ph +N)
Galleon II-3/3 40KL	3 x 360*/380/400/415 (3 Ph +N)

AC Voltage Regulation (Batt. Mode)

Galleon II-3/3 10K(L)	± 1%
Galleon II-3/3 15K(L)	± 1%
Galleon II-3/3 20K(L)	± 1%
Galleon II-3/3 30KL	± 1%
Galleon II-3/3 40KL	± 1%

Frequency Range (Batt. Mode)

Galleon II-3/3 10K(L)	50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Galleon II-3/3 15K(L)	50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Galleon II-3/3 20K(L)	50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Galleon II-3/3 30KL	50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Galleon II-3/3 40KL	50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz

Transfer Time AC Mode to Battery Mode

Galleon II-3/3 10K(L)	zero
Galleon II-3/3 15K(L)	zero
Galleon II-3/3 20K(L)	zero
Galleon II-3/3 30KL	zero
Galleon II-3/3 40KL	zero

Transfer Time Inverter to Bypass

Galleon II-3/3 10K(L)	zero
Galleon II-3/3 15K(L)	zero
Galleon II-3/3 20K(L)	zero
Galleon II-3/3 30KL	zero
Galleon II-3/3 40KL	zero

Waveform (Batt. Mode)

Galleon II-3/3 10K(L)	Pure Sine Wave
Galleon II-3/3 15K(L)	Pure Sine Wave
Galleon II-3/3 20K(L)	Pure Sine Wave
Galleon II-3/3 30KL	Pure Sine Wave
Galleon II-3/3 40KL	Pure Sine Wave

Current Crest Ratio

Galleon II-3/3 10K(L)	3:1 (max.)
Galleon II-3/3 15K(L)	3:1 (max.)
Galleon II-3/3 20K(L)	3:1 (max.)
Galleon II-3/3 30KL	3:1 (max.)
Galleon II-3/3 40KL	3:1 (max.)

Harmonic Distortion

Galleon II-3/3 10K(L)	≦ 2 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load)
Galleon II-3/3 15K(L)	≦ 2 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load)
Galleon II-3/3 20K(L)	≦ 2 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load)
Galleon II-3/3 30KL	≦ 2 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load)
Galleon II-3/3 40KL	≦ 2 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load)

Frequency Range (Synchronized Range)

Galleon II-3/3 10K(L)	46~54Hz or 56~64Hz
Galleon II-3/3 15K(L)	46~54Hz or 56~64Hz
Galleon II-3/3 20K(L)	46~54Hz or 56~64Hz
Galleon II-3/3 30KL	46~54Hz or 56~64Hz
Galleon II-3/3 40KL	46~54Hz or 56~64Hz

Overload AC Mode

Galleon II-3/3 10K(L)	100-110% for 60 min, 110-125% for 10 min, >150% immediately
Galleon II-3/3 15K(L)	100-110% for 60 min, 110-125% for 10 min, >150% immediately
Galleon II-3/3 20K(L)	100-110% for 60 min, 110-125% for 10 min, >150% immediately
Galleon II-3/3 30KL	100-110% for 60 min, 110-125% for 10 min, >150% immediately
Galleon II-3/3 40KL	100-110% for 60 min, 110-125% for 10 min, >150% immediately

Overload Battery Mode

Galleon II-3/3 10K(L)	100-110% for 60 min, 110-125% for 10 min, >150% immediately
Galleon II-3/3 15K(L)	100-110% for 60 min, 110-125% for 10 min, >150% immediately
Galleon II-3/3 20K(L)	100-110% for 60 min, 110-125% for 10 min, >150% immediately
Galleon II-3/3 30KL	100-110% for 60 min, 110-125% for 10 min, >150% immediately
Galleon II-3/3 40KL	100-110% for 60 min, 110-125% for 10 min, >150% immediately

EFFICIENCY

Battery Mode

Galleon II-3/3 10K(L)	94.5%
Galleon II-3/3 15K(L)	94.5%
Galleon II-3/3 20K(L)	94.5%
Galleon II-3/3 30KL	94.5%
Galleon II-3/3 40KL	94.5%

ECO Mode

Galleon II-3/3 10K(L)	98.5%
Galleon II-3/3 15K(L)	98.5%
Galleon II-3/3 20K(L)	98.5%
Galleon II-3/3 30KL	98.5%
Galleon II-3/3 40KL	98.5%

AC Mode

Galleon II-3/3 10K(L)	95.5%
Galleon II-3/3 15K(L)	95.5%
Galleon II-3/3 20K(L)	95.5%
Galleon II-3/3 30KL	95.5%
Galleon II-3/3 40KL	95.5%

BATTERY

Long-run Model Model-Battery Type

Galleon II-3/3 10K(L)	Depending on the capacity of external batteries
Galleon II-3/3 15K(L)	Depending on the capacity of external batteries
Galleon II-3/3 20K(L)	Depending on the capacity of external batteries
Galleon II-3/3 30KL	Depending on the capacity of external batteries
Galleon II-3/3 40KL	Depending on the capacity of external batteries

Long-run Model Model-Charging Current (max.)

Galleon II-3/3 10K(L)	1A ~ 12A (Adjustable)
Galleon II-3/3 15K(L)	1A ~ 12A (Adjustable)
Galleon II-3/3 20K(L)	1A ~ 12A (Adjustable)
Galleon II-3/3 30KL	1A ~ 12A (Adjustable)
Galleon II-3/3 40KL	1A ~ 12A (Adjustable)

Long-run Model Model-Charging Voltage

Galleon II-3/3 10K(L)	136.5VDC ±10%
Galleon II-3/3 15K(L)	±13.65V*N (N = 16~20)
Galleon II-3/3 20K(L)	±13.65V*N (N = 16~20)
Galleon II-3/3 30KL	±13.65V*N (N = 16~20)
Galleon II-3/3 40KL	±13.65V*N (N = 16~20)

Long-run Model Model-Numbers

Galleon II-3/3 10K(L)	20 pcs
Galleon II-3/3 15K(L)	32~40 pcs (Adjustable)
Galleon II-3/3 20K(L)	32~40 pcs (Adjustable)
Galleon II-3/3 30KL	32~40 pcs (Adjustable)
Galleon II-3/3 40KL	32~40 pcs (Adjustable)

Standard Model Battery Type

Galleon II-3/3 10K(L)	12V/9Ah
Galleon II-3/3 15K(L)	12V/9Ah
Galleon II-3/3 20K(L)	12V/9Ah
Galleon II-3/3 30KL	12V/7Ah
Galleon II-3/3 40KL	12V/9Ah

Standard Model Charging Current (max.)

Galleon II-3/3 10K(L)	1A~12A (Adjustable)
Galleon II-3/3 15K(L)	1A~12A (Adjustable)
Galleon II-3/3 20K(L)	1A~12A (Adjustable)
Galleon II-3/3 30KL	1A~12A (Adjustable)
Galleon II-3/3 40KL	1A~12A (Adjustable)

Standard Model Charging Voltage

Galleon II-3/3 10K(L)	+/-136.5 VDC ± 10%
Galleon II-3/3 15K(L)	+/-218 VDC ± 10%
Galleon II-3/3 20K(L)	+/-218 VDC ± 10%
Galleon II-3/3 30KL	+/-218 VDC ± 10%
Galleon II-3/3 40KL	+/-218 VDC ± 10%

Standard Model Numbers

Galleon II-3/3 10K(L)	(10+10)pcs
Galleon II-3/3 15K(L)	(16+16)pcs
Galleon II-3/3 20K(L)	(16+16)pcs
Galleon II-3/3 30KL	(16+16)pcs x 2 strings
Galleon II-3/3 40KL	(16+16)pcs x 2 strings

Standard Model Typical Recharge Time

Galleon II-3/3 10K(L)	9 hours recover to 90% capacity
Galleon II-3/3 15K(L)	9 hours recover to 90% capacity
Galleon II-3/3 20K(L)	9 hours recover to 90% capacity
Galleon II-3/3 30KL	9 hours recover to 90% capacity
Galleon II-3/3 40KL	9 hours recover to 90% capacity

INDICATORS

LCD Panel

Galleon II-3/3 10K(L)	UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
Galleon II-3/3 15K(L)	UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
Galleon II-3/3 20K(L)	UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
Galleon II-3/3 30KL	UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
Galleon II-3/3 40KL	UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions

ENVIRONMENT

Operating Temperature

Galleon II-3/3 10K(L)	0~40°C
Galleon II-3/3 15K(L)	0~40°C
Galleon II-3/3 20K(L)	0~40°C
Galleon II-3/3 30KL	0~40°C
Galleon II-3/3 40KL	0~40°C

Operating Humidity

Galleon II-3/3 10K(L)	<95% and non-condersing
Galleon II-3/3 15K(L)	<95% and non-condersing
Galleon II-3/3 20K(L)	<95% and non-condersing
Galleon II-3/3 30KL	<95% and non-condersing
Galleon II-3/3 40KL	<95% and non-condersing

Noise Level

Galleon II-3/3 10K(L)	Less than 55dB @ 1 Meter
Galleon II-3/3 15K(L)	Less than 58dB @ 1 Meter
Galleon II-3/3 20K(L)	Less than 58dB @ 1 Meter
Galleon II-3/3 30KL	Less than 65dB @ 1 Meter
Galleon II-3/3 40KL	Less than 70dB @ 1 Meter

PHYSICAL

Standard Model Dimension, D X W X H (mm)

Galleon II-3/3 10K(L)	626 x 250 x 750
Galleon II-3/3 15K(L)	626 x 250 x 750
Galleon II-3/3 20K(L)	626 x 250 x 750
Galleon II-3/3 30KL	815 x 300 x 1000
Galleon II-3/3 40KL	815 x 300 x 1000

Standard Model Net Weight (kgs)

Galleon II-3/3 10K(L)	124
Galleon II-3/3 15K(L)	139
Galleon II-3/3 20K(L)	139
Galleon II-3/3 30KL	225
Galleon II-3/3 40KL	250

Long-run Model Dimension, D X W X H (mm)

Galleon II-3/3 10K(L)	626 x 250 x 750
Galleon II-3/3 15K(L)	626 x 250 x 750
Galleon II-3/3 20K(L)	626 x 250 x 750
Galleon II-3/3 30KL	815 x 300 x 1000
Galleon II-3/3 40KL	815 x 300 x 1000

Long-run Model Net Weight (kgs)

Galleon II-3/3 10K(L)	28
Galleon II-3/3 15K(L)	43
Galleon II-3/3 20K(L)	43
Galleon II-3/3 30KL	60
Galleon II-3/3 40KL	61

MANAGEMENT

Optional SNMP

Galleon II-3/3 10K(L)	Power management from SNMP manager and web browser
Galleon II-3/3 15K(L)	Power management from SNMP manager and web browser
Galleon II-3/3 20K(L)	Power management from SNMP manager and web browser
Galleon II-3/3 30KL	Power management from SNMP manager and web browser
Galleon II-3/3 40KL	Power management from SNMP manager and web browser

Smart RS-232 / USB

Galleon II-3/3 10K(L)	Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8/10, Linux, and MAC
Galleon II-3/3 15K(L)	Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8/10, Linux, and MAC
Galleon II-3/3 20K(L)	Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8/10, Linux, and MAC
Galleon II-3/3 30KL	Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8/10, Linux, and MAC
Galleon II-3/3 40KL	Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8/10, Linux, and MAC

	Brochure	Galleon II 3P/3P 10K-40K UL-Brochure
	Manual	GalleonII3P3P10K-40KUL-manual

Product

Company

Investors

Site
