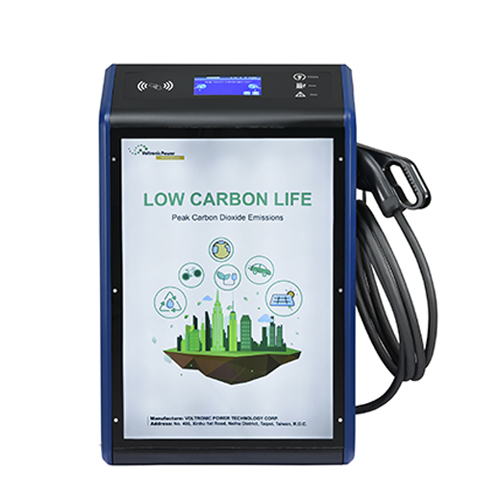

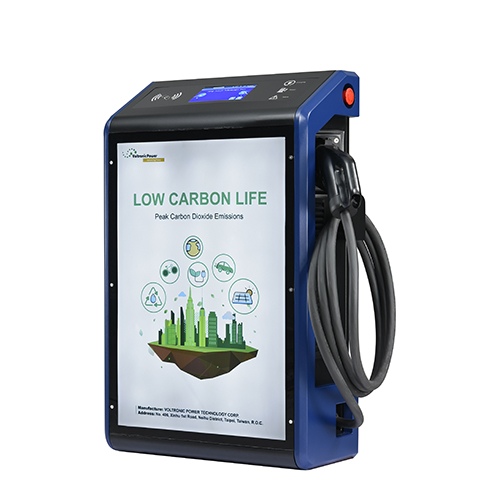

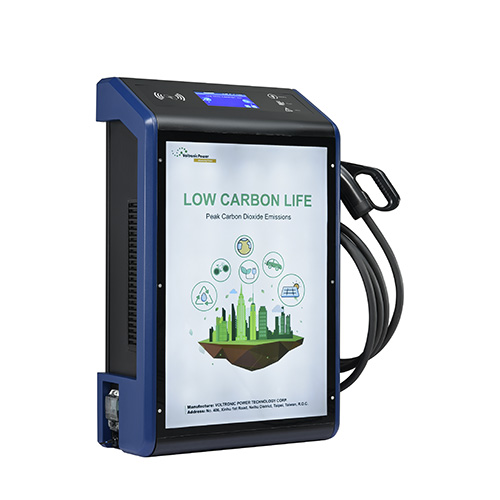

EVA 5430GD-EVA 5460GD-EVA 54120GD
IP54, 30kw- 120kw DC EV 汽車充電樁
EV充電樁系列採用Voltronic完全自主研發的CCS控制器和OCPP，確保產品穩定性，降低維修風險。 專利ECO節能模式，降低能耗。 車輛充電完成後，即使連接了充電槍，充電樁也會進入睡眠模式（功耗 12W）。 如果充電槍連接到另一輛車，充電樁將恢復充電。 此外，該專利將充電模塊的設計模塊化，便於更換，降低維護成本。
加入比較表 加入詢問
主要特點
  • 直流連結技術，連接儲能電池
  • 可選增壓模式，縮短充電時間，效率提升28%
  • 內部開發的控制器、CCS 和 OCPP 充電模塊
  • 支持多種充電標準：GB、CCS1、CCS2和CHAdeMO
  • 更寬的直流電壓範圍 150v 至 1000v 每模塊 30KW 恆定輸出功率，更快的充電效率
  • 充電器通過-35°C至55°C 33組嚴格的環境和熱衝擊測試，確保系統可靠性
  • 直流電源模塊配備UL認可的環氧樹脂自動注入，可承受多塵和含鹽空氣測試，提高環境適應性
  • IP54 防護等級、IK10 防破壞外殼和 IK8 觸摸屏
  • 每種充電模式都帶有專用的 LED 狀態指示燈（簡單直觀的充電體驗）
  • 7 彩色觸控 LCD 多語言支持
  • 內置RFID讀卡器
  • 支持OCPP 1.6 JSON網絡和3G/4G
  • APP遠程固件升級（OTA）
  • 適配OCPP網絡安全協議實現OTA特性
  • 通過雲網絡協議測試，通過OCTT驗證
  • 通過車端協議DIN 70121、ISO 15118，通過TUV驗證
  • 符合網絡安全標準的 Linux 5.10 操作系統和 CPU
  • 第三方認證CE EN61851
充電系統
EVA 5430GDIEC 61851-21-2, IEC 61000, IEC/EN 61851-1, IEC 61851-23, IEC 61851-24, IEC 62196-1, IEC 62196-3, GBT18487, GBT20234, NB/T 33008.1, NB/T 33001
EVA 5460GDIEC 61851-21-2, IEC 61000, IEC/EN 61851-1, IEC 61851-23, IEC 61851-24, IEC 62196-1, IEC 62196-3, GBT18487, GBT20234, NB/T 33008.1, NB/T 33001
EVA 54120GDIEC 61851-21-2, IEC 61000, IEC/EN 61851-1, IEC 61851-23, IEC 61851-24, IEC 62196-1, IEC 62196-3, GBT18487, GBT20234, NB/T 33008.1, NB/T 33001
與EV的通信
EVA 5430GDDIN 70121, ISO/IEC 15118, GBT27930, GBT 34657, GBT 34658
EVA 5460GDDIN 70121, ISO/IEC 15118, GBT27930, GBT 34657, GBT 34658
EVA 54120GDDIN 70121, ISO/IEC 15118, GBT27930, GBT 34657, GBT 34658
軟件升級
EVA 5430GDYes
EVA 5460GDYes
EVA 54120GDYes
General
直流輸入電壓
EVA 5430GD768V
EVA 5460GD768V
EVA 54120GD768V
直流輸入電壓範圍
EVA 5430GD600-876V
EVA 5460GD600-876V
EVA 54120GD600-876V
充電類型
EVA 5430GDDC fast charging
EVA 5460GDDC fast charging
EVA 54120GDDC fast charging
連接器類型
EVA 5430GD3P + N + PE
EVA 5460GD3P + N + PE
EVA 54120GD3P + N + PE
電磁兼容
EVA 5430GDClass A (optional Class B) according to EN 61000-6-3:2007
EVA 5460GDClass A (optional Class B) according to EN 61000-6-3:2007
EVA 54120GDClass A (optional Class B) according to EN 61000-6-3:2007
插座選項
EVA 5430GDTN-S. TN-C, TN-C-S, TT (required external RCD)
EVA 5460GDTN-S. TN-C, TN-C-S, TT (required external RCD)
EVA 54120GDTN-S. TN-C, TN-C-S, TT (required external RCD)
保護
EVA 5430GDOvercurrent, overvoltage, undervoltage, integrated surge protection, ground fault including DC leakage protection, door opening protection
EVA 5460GDOvercurrent, overvoltage, undervoltage, integrated surge protection, ground fault including DC leakage protection, door opening protection
EVA 54120GDOvercurrent, overvoltage, undervoltage, integrated surge protection, ground fault including DC leakage protection, door opening protection
過電壓類別
EVA 5430GDType II
EVA 5460GDType II
EVA 54120GDType II
蜂窩通信
EVA 5430GDGSM, 4G, LTE
EVA 5460GDGSM, 4G, LTE
EVA 54120GDGSM, 4G, LTE
同時能充電動車數量
EVA 5430GDUp to 2 (C, A, J, G, JC, JA models)
EVA 5460GDUp to 2 (C, A, G, CC, AA, JC, JA, GG models)
EVA 54120GDUp to 2 (C, A, G, CC, AA, JC, JA, GG models
電纜長度
EVA 5430GD5.0 m, Optional: 6.0 m / 7.0 m
EVA 5460GD5.0 m, Optional: 6.0 m / 7.0 m
EVA 54120GD5.0 m, Optional: 6.0 m / 7.0 m
最大電流 CCS 電纜
EVA 5430GD100A
EVA 5460GD200A
EVA 54120GD200A
最大電流 CHAdeMO 電纜
EVA 5430GD100A
EVA 5460GD125A
EVA 54120GD125A
最大電流 GBT 電纜
EVA 5430GD100A
EVA 5460GD200A
EVA 54120GD250A
配電系統
EVA 5430GDStandard: Meter for DC outlet, Optional: AC inlet
EVA 5460GDStandard: Meter for DC outlet, Optional: AC inlet
EVA 54120GDStandard: Meter for DC outlet, Optional: AC inlet
電能計量
EVA 5430GD150-1000 Vdc ( Constant power from 300-1000Vdc)
EVA 5460GD150-1000 Vdc ( Constant power from 300-1000Vdc)
EVA 54120GD150-1000 Vdc ( Constant power from 300-1000Vdc)
直流輸出電壓
EVA 5430GD≥ 0.98
EVA 5460GD≥ 0.99
EVA 54120GD≥ 0.99
功率因數（滿載）
EVA 5430GD≤ 5%
EVA 5460GD≤ 5%
EVA 54120GD≤ 5%
THDi
EVA 5430GD≥ 93% (peak)
EVA 5460GD≥ 93% (peak)
EVA 54120GD≥ 94% (peak)
效率
EVA 5430GD< 35 W
EVA 5460GD< 35 W
EVA 54120GD< 35 W
備用電源
EVA 5430GD10 kA
EVA 5460GD10 kA
EVA 54120GD10 kA
預充電電流
EVA 5430GD< 1 A
EVA 5460GD< 1 A
EVA 54120GD< 1 A
浪湧電流
EVA 5430GD< 55 A
EVA 5460GD< 100 A
EVA 54120GD< 100 A
漏電流
EVA 5430GD0.8 mA
EVA 5460GD0.8 mA
EVA 54120GD0.8 mA
通用特性
工作海拔
EVA 5430GDUp to 2000 m
EVA 5460GDUp to 2000 m
EVA 54120GDUp to 2000 m
防護等級
EVA 5430GDIP54 and IK10 (cabinet) / IK8 (touchscreen)
EVA 5460GDIP54 and IK10 (cabinet) / IK8 (touchscreen)
EVA 54120GDIP54 and IK10 (cabinet) / IK8 (touchscreen)
淨重（公斤）
EVA 5430GD80
EVA 5460GD105
EVA 54120GD175
安裝
EVA 5430GDFree-standing cabinet
EVA 5460GDFree-standing cabinet
EVA 54120GDFree-standing cabinet
濕度
EVA 5430GD< 95%, non-condensing
EVA 5460GD< 95%, non-condensing
EVA 54120GD< 95%, non-condensing
工作溫度
EVA 5430GD-35 °C to +55 °C
EVA 5460GD-35 °C to +55 °C
EVA 54120GD-35 °C to +55 °C
外殼材料
EVA 5430GD'SGCC, Optional: SUS430
EVA 5460GD'SGCC, Optional: SUS430
EVA 54120GD'SGCC, Optional: SUS430
貯存溫度
EVA 5430GD-40 °C to +70 °C
EVA 5460GD-40 °C to +70 °C
EVA 54120GD-40 °C to +70 °C
尺寸（長 x 寬 x 高）mm
EVA 5430GD235.5 x 660 x 1250
EVA 5460GD235.5 x 660 x 1250
EVA 54120GD360 x 660 x 1500
用戶界面
RFID讀寫器
EVA 5430GDISO/IEC 14443 A/B Mifare RFID reader
EVA 5460GDISO/IEC 14443 A/B Mifare RFID reader
EVA 54120GDISO/IEC 14443 A/B Mifare RFID reader
用戶界面
EVA 5430GD7" LCD high-contrast touchscreen
EVA 5460GD7" LCD high-contrast touchscreen
EVA 54120GD7" LCD high-contrast touchscreen
用戶認證
EVA 5430GDRFID, QR code
EVA 5460GDRFID, QR code
EVA 54120GDRFID, QR code
緊急按鈕
EVA 5430GDYes
EVA 5460GDYes
EVA 54120GDYes
連接性
EVA 5430GDInternet access via 4G/3G/Ethernet (RJ45)
EVA 5460GDInternet access via 4G/3G/Ethernet (RJ45)
EVA 54120GDInternet access via 4G/3G/Ethernet (RJ45)
通信協議
EVA 5430GDProprietary and OCPP 1.6J
EVA 5460GDProprietary and OCPP 1.6J
EVA 54120GDProprietary and OCPP 1.6J
配置
語言系統
EVA 5430GDEnglish, Chinese, French, Spanish
EVA 5460GDEnglish, Chinese, French, Spanish
EVA 54120GDEnglish, Chinese, French, Spanish
Brochure EVA 5430GD-5460GD-54120GD-Brochure
