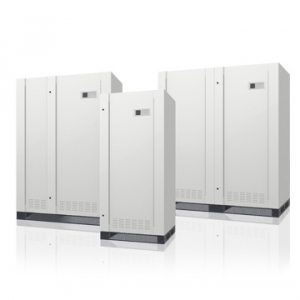

Giant iND 3P/3P
机柜式工频机适用于数据服务中心
Giant iND因其坚固耐用和独特的风道设计而适用于工业应用。 为了提高运行可靠度，Giant iND系列允许连接两个独立的电源输入。
主要特点
- 数位化控制实现真正的双转换在线式不断电系统
- 容易与现有电网整合使用也有兼容发电机功能
- 机柜无螺丝设计及全面性ＰＣＢＡ板上三防漆可提高严苛环境下的稳定度
- 独特的风道设计可有效散热
- 双输入选择
- 全部采用正面维护
- 超强的短路及过载能力
- Easy integration into existing electrical networks or generator
- 可最多并机4台运作
| MODEL | Giant iND 33-10K,33-15K | Giant iND 33-20K | Giant iND 33-30K | Giant iND 33-40K | Giant iND 33-60K | Giant iND 33-80K | |
| 容量 | 10 KVA / 8 KW, 15 KVA / 12 KW | 20KVA/16KW | 30 KVA / 24 KW | 40 KVA / 32 KW | 60 KVA / 48 KW | 80KVA/64KW | |
| 输入 | |||||||
| 额定电压 | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) | |
| 可接受的电压范围 | 304VAC~456VAC | 304VAC~456VAC | 304VAC~456VAC | 304VAC~456VAC | 304VAC~456VAC | 304VAC~456VAC | |
| 频率 | 50Hz ± 5Hz (±10%) | 50Hz ± 5Hz (±10%) | 50Hz ± 5Hz (±10%) | 50Hz ± 5Hz (±10%) | 50Hz ± 5Hz (±10%) | 50Hz ± 5Hz (±10%) | |
| 输出 | |||||||
| 转移时间 | 0 ms | 0 ms | 0 ms | 0 ms | 0 ms | 0 ms | |
| 波形 | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | |
| 超载能力 | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms | |
| 额定电压 | 3 x 380VAC/400VAC/415VAC (3Ph+N) | 3 x 380VAC/400VAC/415VAC (3Ph+N) | 3 x 380VAC/400VAC/415VAC (3Ph+N) | 3 x 380VAC/400VAC/415VAC (3Ph+N) | 3 x 380VAC/400VAC/415VAC (3Ph+N) | 3 x 380VAC/400VAC/415VAC (3Ph+N) | |
| 连接类型 | Hardwire 5-wire (3Ph+N+G) | Hardwire 5-wire (3Ph+N+G) | Hardwire 5-wire (3Ph+N+G) | Hardwire 5-wire (3Ph+N+G) | Hardwire 5-wire (3Ph+N+G) | Hardwire 5-wire (3Ph+N+G) | |
| 波峰因子 | 3:1 | 3:1 | 3:1 | 3:1 | 3:1 | 3:1 | |
| 动态浪涌电压范围 | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% | |
| 动态恢复时间（III级） | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage | |
| 频率 | 50 Hz | 50 Hz | 50 Hz | 50 Hz | 50 Hz | 50 Hz | |
| 频率稳定性 | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | |
| 频率同步范围 | ± 5Hz (Equal to bypass working range) | ± 5Hz (Equal to bypass working range) | ± 5Hz (Equal to bypass working range) | ± 5Hz (Equal to bypass working range) | ± 5Hz (Equal to bypass working range) | ± 5Hz (Equal to bypass working range) | |
| 相位换置 | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) | |
| 功率因数 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | |
| 短路能力 | 60~100ms | 60~100ms | 60~100ms | 60~100ms | 60~100ms | 60~100ms | |
| 总谐波失真（THDv） | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | |
| 瞬态响应时间 | < 5ms | < 5ms | < 5ms | < 5ms | < 5ms | < 5ms | |
| 输出电压稳定性 | 瞬态 | ± 5% | ± 5% | ± 5% | ± 5% | ± 5% | ± 5% |
| 输出电压稳定性 | 稳定状态 | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% |
| 总谐波失真（THDv） | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | |
| 旁路 | |||||||
| 连接类型 | Hardwire 5-wire (3Ph+N+G) | Hardwire 5-wire (3Ph+N+G) | Hardwire 5-wire (3Ph+N+G) | Hardwire 5-wire (3Ph+N+G) | Hardwire 5-wire (3Ph+N+G) | Hardwire 5-wire (3Ph+N+G) | |
| 输入电压范围 | 3 x 380VAC/400VAC/415VAC (3Ph+N) | 3 x 380VAC/400VAC/415VAC (3Ph+N) | 3 x 380VAC/400VAC/415VAC (3Ph+N) | 3 x 380VAC/400VAC/415VAC (3Ph+N) | 3 x 380VAC/400VAC/415VAC (3Ph+N) | 3 x 380VAC/400VAC/415VAC (3Ph+N) | |
| 超载能力 | 1.5 In~1.8 In 1h~30s | 1.5 In~1.8 In 1h~30s | 1.5 In~1.8 In 1h~30s | 1.5 In~1.8 In 1h~30s | 1.5 In~1.8 In 1h~30s | 1.5 In~1.8 In 1h~30s | |
| 短路能力 | 1.8 In~>2.0 In 30s~200ms | 1.8 In~>2.0 In 30s~200ms | 1.8 In~>2.0 In 30s~200ms | 1.8 In~>2.0 In 30s~200ms | 1.8 In~>2.0 In 30s~200ms | 1.8 In~>2.0 In 30s~200ms | |
| 系统 | |||||||
| ECO模式（非并行模型） | Yes | Yes | Yes | Yes | Yes | Yes | |
| EPO功能 | Yes | Yes | Yes | Yes | Yes | Yes | |
| 标准 | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety | |
| 效率（线性负载） | 90% | 91% | 91% | 91% | 91% | 92% | |
| 电池和整流器 | |||||||
| 电池 | 冷启动 | Yes | Yes | Yes | Yes | Yes | Yes |
| 电池 | 反向二极管 | NO | NO | NO | NO | NO | NO |
| 电池 | 数字 | 32 pcs (29~32 adjustable) | 32 pcs (29~32 adjustable) | 32 pcs (29~32 adjustable) | 32 pcs (29~32 adjustable) | 32 pcs (29~32 adjustable) | 32 pcs (29~32 adjustable) |
| 电池 | 类型 | Support VRLA Battery | Support VRLA Battery | Support VRLA Battery | Support VRLA Battery | Support VRLA Battery | Support VRLA Battery |
| 整流器 | 充电器电压 | 395 VDC~435 VDC (Adjustable) | 395 VDC~435 VDC (Adjustable) | 395 VDC~435 VDC (Adjustable) | 395 VDC~435 VDC (Adjustable) | 395 VDC~435 VDC (Adjustable) | 395 VDC~435 VDC (Adjustable) |
| 整流器 | 充电电流（最大） | Default 10A, Maximum=Capacity/Battery Voltage | Default 10A, Maximum=Capacity/Battery Voltage | Default 10A, Maximum 40A | Default 10A, Maximum 40A | Default 10A, Maximum 40A | Default 10A, Maximum 40A |
| 整流器 | 类型 | 6 pulse | 6 pulse | 6 pulse | 6 pulse | 6 pulse | 6 pulse |
| 整流器 | 额定输出电压 | 384 VDC | 384 VDC | 384 VDC | 384 VDC | 384 VDC | 384 VDC |
| 环境 | |||||||
| 工作温度 | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load | |
| 工作湿度 | 0~90% (Non-condensing) | 0~90% (Non-condensing) | 0~90% (Non-condensing) | 0~90% (Non-condensing) | 0~90% (Non-condensing) | 0~90% (Non-condensing) | |
| 噪音水平 | Less than 70dB @ 1 Meter | Less than 70dB @ 1 Meter | Less than 70dB @ 1 Meter | Less than 70dB @ 1 Meter | Less than 70dB @ 1 Meter | Less than 70dB @ 1 Meter | |
| 物理 | |||||||
| 尺寸（深 x 宽 x 高）mm | 800 x 800 x 1800 | 800 x 800 x 1800 | 800 x 800 x 1800 | 800 x 800 x 1800 | 800 x 800 x 1800 | 800 x 800 x 1800 | |
| 净重（公斤） | 290,312 | 349 | 385 | 427 | 508 | 563 | |
| 知识产权保护 | IP20 (default), IP21/IP31 (Option) | IP20 (default), IP21/IP31 (Option) | IP20 (default), IP21/IP31 (Option) | IP20 (default), IP21/IP31 (Option) | IP20 (default), IP21/IP31 (Option) | IP20 (default), IP21/IP31 (Option) | |
| 净重（公斤） | 290,312 | 349 | 385 | 427 | 508 | 563 | |
| 管理 | |||||||
| 可选的 SNMP | Power management from SNMP manager and web browser | Power management from SNMP manager and web browser | Power management from SNMP manager and web browser | Power management from SNMP manager and web browser | Power management from SNMP manager and web browser | Power management from SNMP manager and web browser | |
| Modbus RS-232 / RS485 | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC | |
| 干接触 | 6 outputs and 2 inputs | 6 outputs and 2 inputs | 6 outputs and 2 inputs | 6 outputs and 2 inputs | 6 outputs and 2 inputs | 6 outputs and 2 inputs | |
| Model | Giant iND 33-100K | Giant iND 33-120K | Giant iND 33-160K | Giant iND 33-200K | Giant iND 33-250K | Giant iND 33-300K, 33-400K | |
| 容量 | 100 KVA / 80 KW | 120 KVA / 96 KW | 160 KVA / 128 KW | 200 KVA / 160 KW | 250 KVA / 200KW | 300KVA/240KW, 400KVA/320KW | |
| 输入 | |||||||
| 额定电压 | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) | |
| 可接受的电压范围 | 304VAC~456VAC | 304VAC~456VAC | 304VAC~456VAC | 304VAC~456VAC | 304VAC~456VAC | 304VAC~456VAC | |
| 频率 | 50Hz ± 5Hz (±10%) | 50Hz ± 5Hz (±10%) | 50Hz ± 5Hz (±10%) | 50Hz ± 5Hz (±10%) | 50Hz ± 5Hz (±10%) | 50Hz ± 5Hz (±10%) | |
| 输出 | |||||||
| 转移时间 | 0 ms | 0 ms | 0 ms | 0 ms | 0 ms | 0 ms | |
| 波形 | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | |
| 超载能力 | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms | |
| 额定电压 | 3 x 380VAC/400VAC/415VAC (3Ph+N) | 3 x 380VAC/400VAC/415VAC (3Ph+N) | 3 x 380VAC/400VAC/415VAC (3Ph+N) | 3 x 380VAC/400VAC/415VAC (3Ph+N) | 3 x 380VAC/400VAC/415VAC (3Ph+N) | 3 x 380VAC/400VAC/415VAC (3Ph+N) | |
| 连接类型 | Hardwire 5-wire (3Ph+N+G) | Hardwire 5-wire (3Ph+N+G) | Hardwire 5-wire (3Ph+N+G) | Hardwire 5-wire (3Ph+N+G) | Hardwire 5-wire (3Ph+N+G) | Hardwire 5-wire (3Ph+N+G) | |
| 波峰因子 | 3:1 | 3:1 | 3:1 | 3:1 | 3:1 | 3:1 | |
| 动态浪涌电压范围 | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% | |
| 动态恢复时间（III级） | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage | |
| 频率 | 50 Hz | 50 Hz | 50 Hz | 50 Hz | 50 Hz | 50 Hz | |
| 频率稳定性 | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | |
| 频率同步范围 | ± 5Hz (Equal to bypass working range) | ± 5Hz (Equal to bypass working range) | ± 5Hz (Equal to bypass working range) | ± 5Hz (Equal to bypass working range) | ± 5Hz (Equal to bypass working range) | ± 5Hz (Equal to bypass working range) | |
| 相位换置 | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) | |
| 功率因数 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | |
| 短路能力 | 60~100ms | 60~100ms | 60~100ms | 60~100ms | 60~100ms | 60~100ms | |
| 总谐波失真（THDv） | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | |
| 瞬态响应时间 | < 5ms | < 5ms | < 5ms | < 5ms | < 5ms | < 5ms | |
| 输出电压稳定性 | 瞬态 | ± 5% | ± 5% | ± 5% | ± 5% | ± 5% | ± 5% |
| 输出电压稳定性 | 稳定状态 | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% |
| 总谐波失真（THDv） | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | |
| 旁路 | |||||||
| 连接类型 | Hardwire 5-wire (3Ph+N+G) | Hardwire 5-wire (3Ph+N+G) | Hardwire 5-wire (3Ph+N+G) | Hardwire 5-wire (3Ph+N+G) | Hardwire 5-wire (3Ph+N+G) | Hardwire 5-wire (3Ph+N+G) | |
| 输入电压范围 | 3 x 380VAC/400VAC/415VAC (3Ph+N) | 3 x 380VAC/400VAC/415VAC (3Ph+N) | 3 x 380VAC/400VAC/415VAC (3Ph+N) | 3 x 380VAC/400VAC/415VAC (3Ph+N) | 3 x 380VAC/400VAC/415VAC (3Ph+N) | 3 x 380VAC/400VAC/415VAC (3Ph+N) | |
| 超载能力 | 1.5 In~1.8 In 1h~30s | 1.5 In~1.8 In 1h~30s | 1.5 In~1.8 In 1h~30s | 1.5 In~1.8 In 1h~30s | 1.5 In~1.8 In 1h~30s | 1.5 In~1.8 In 1h~30s | |
| 短路能力 | 1.8 In~>2.0 In 30s~200ms | 1.8 In~>2.0 In 30s~200ms | 1.8 In~>2.0 In 30s~200ms | 1.8 In~>2.0 In 30s~200ms | 1.8 In~>2.0 In 30s~200ms | 1.8 In~>2.0 In 30s~200ms | |
| 系统 | |||||||
| ECO模式（非并行模型） | Yes | Yes | Yes | Yes | Yes | Yes | |
| EPO功能 | Yes | Yes | Yes | Yes | Yes | Yes | |
| 标准 | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety | |
| 效率（线性负载） | 92% | 92% | 92% | 92% | 92% | 93% | |
| 电池和整流器 | |||||||
| 电池 | 冷启动 | Yes | Yes | Yes | Yes | Yes | Yes |
| 电池 | 反向二极管 | NO | NO | NO | NO | NO | NO |
| 电池 | 数字 | 32 pcs (29~32 adjustable) | 32 pcs (29~32 adjustable) | 32 pcs (29~32 adjustable) | 32 pcs (29~32 adjustable) | 32 pcs (29~32 adjustable) | 32 pcs (29~32 adjustable) |
| 电池 | 类型 | Support VRLA Battery | Support VRLA Battery | Support VRLA Battery | Support VRLA Battery | Support VRLA Battery | Support VRLA Battery |
| 整流器 | 充电器电压 | 395 VDC~435 VDC (Adjustable) | 395 VDC~435 VDC (Adjustable) | 395 VDC~435 VDC (Adjustable) | 395 VDC~435 VDC (Adjustable) | 395 VDC~435 VDC (Adjustable) | 395 VDC~435 VDC (Adjustable) |
| 整流器 | 充电电流（最大） | Default 10A, Maximum 40A | Default 10A, Maximum 40A | Default 10A, Maximum 40A | Default 10A, Maximum 40A | Default 10A, Maximum 40A | Default 10A, Maximum 40A |
| 整流器 | 类型 | 6 pulse or 12 pulse | 6 pulse or 12 pulse | 6 pulse or 12 pulse | 6 pulse or 12 pulse | 12 pulse | 12 pulse |
| 整流器 | 额定输出电压 | 384 VDC | 384 VDC | 384 VDC | 384 VDC | 384 VDC | 384 VDC |
| 环境 | |||||||
| 工作温度 | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load | |
| 工作湿度 | 0~90% (Non-condensing) | 0~90% (Non-condensing) | 0~90% (Non-condensing) | 0~90% (Non-condensing) | 0~90% (Non-condensing) | 0~90% (Non-condensing) | |
| 噪音水平 | Less than 70dB @ 1 Meter | Less than 70dB @ 1 Meter | Less than 70dB @ 1 Meter | Less than 70dB @ 1 Meter | Less than 70dB @ 1 Meter | Less than 72dB @ 1 Meter | |
| 物理 | |||||||
| 尺寸（深 x 宽 x 高）mm | 800 x 1200 x 1800 | 800 x 1200 x 1800 | 800 x 1600 x 1800 | 800 x 1600 x 1800 | 800 x 1600 x 1800 | 850 x 1630 x 1900 | |
| 净重（公斤） | 760 | 850 | 1120 | 1390 | 1750 | 2100, 2500 | |
| 知识产权保护 | IP20 (default), IP21/IP31 (Option) | IP20 (default), IP21/IP31 (Option) | IP20 (default), IP21/IP31 (Option) | IP20 (default), IP21/IP31 (Option) | IP20 (default), IP21/IP31 (Option) | IP20 (default), IP21/IP31 (Option) | |
| 净重（公斤） | 760 | 850 | 1120 | 1390 | 1750 | 2100, 2500 | |
| 管理 | |||||||
| 可选的 SNMP | Power management from SNMP manager and web browser | Power management from SNMP manager and web browser | Power management from SNMP manager and web browser | Power management from SNMP manager and web browser | Power management from SNMP manager and web browser | Power management from SNMP manager and web browser | |
| Modbus RS-232 / RS485 | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC | |
| 干接触 | 6 outputs and 2 inputs | 6 outputs and 2 inputs | 6 outputs and 2 inputs | 6 outputs and 2 inputs | 6 outputs and 2 inputs | 6 outputs and 2 inputs | |
General
容量
| Giant iND 33-10K,33-15K | 10 KVA / 8 KW, 15 KVA / 12 KW |
|---|---|
| Giant iND 33-20K | 20KVA/16KW |
| Giant iND 33-30K | 30 KVA / 24 KW |
| Giant iND 33-40K | 40 KVA / 32 KW |
| Giant iND 33-60K | 60 KVA / 48 KW |
| Giant iND 33-80K | 80KVA/64KW |
| Giant iND 33-100K | 100 KVA / 80 KW |
| Giant iND 33-120K | 120 KVA / 96 KW |
| Giant iND 33-160K | 160 KVA / 128 KW |
| Giant iND 33-200K | 200 KVA / 160 KW |
| Giant iND 33-250K | 250 KVA / 200KW |
| Giant iND 33-300K, 33-400K | 300KVA/240KW, 400KVA/320KW |
输入
额定电压
| Giant iND 33-10K,33-15K | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) |
|---|---|
| Giant iND 33-20K | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) |
| Giant iND 33-30K | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) |
| Giant iND 33-40K | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) |
| Giant iND 33-60K | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) |
| Giant iND 33-80K | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) |
| Giant iND 33-100K | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) |
| Giant iND 33-120K | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) |
| Giant iND 33-160K | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) |
| Giant iND 33-200K | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) |
| Giant iND 33-250K | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) |
| Giant iND 33-300K, 33-400K | 3 x 380VAC/400VAC/415VAC (3Ph + N or 3Ph + N + G) |
可接受的电压范围
| Giant iND 33-10K,33-15K | 304VAC~456VAC |
|---|---|
| Giant iND 33-20K | 304VAC~456VAC |
| Giant iND 33-30K | 304VAC~456VAC |
| Giant iND 33-40K | 304VAC~456VAC |
| Giant iND 33-60K | 304VAC~456VAC |
| Giant iND 33-80K | 304VAC~456VAC |
| Giant iND 33-100K | 304VAC~456VAC |
| Giant iND 33-120K | 304VAC~456VAC |
| Giant iND 33-160K | 304VAC~456VAC |
| Giant iND 33-200K | 304VAC~456VAC |
| Giant iND 33-250K | 304VAC~456VAC |
| Giant iND 33-300K, 33-400K | 304VAC~456VAC |
频率
| Giant iND 33-10K,33-15K | 50Hz ± 5Hz (±10%) |
|---|---|
| Giant iND 33-20K | 50Hz ± 5Hz (±10%) |
| Giant iND 33-30K | 50Hz ± 5Hz (±10%) |
| Giant iND 33-40K | 50Hz ± 5Hz (±10%) |
| Giant iND 33-60K | 50Hz ± 5Hz (±10%) |
| Giant iND 33-80K | 50Hz ± 5Hz (±10%) |
| Giant iND 33-100K | 50Hz ± 5Hz (±10%) |
| Giant iND 33-120K | 50Hz ± 5Hz (±10%) |
| Giant iND 33-160K | 50Hz ± 5Hz (±10%) |
| Giant iND 33-200K | 50Hz ± 5Hz (±10%) |
| Giant iND 33-250K | 50Hz ± 5Hz (±10%) |
| Giant iND 33-300K, 33-400K | 50Hz ± 5Hz (±10%) |
输出
转移时间
| Giant iND 33-10K,33-15K | 0 ms |
|---|---|
| Giant iND 33-20K | 0 ms |
| Giant iND 33-30K | 0 ms |
| Giant iND 33-40K | 0 ms |
| Giant iND 33-60K | 0 ms |
| Giant iND 33-80K | 0 ms |
| Giant iND 33-100K | 0 ms |
| Giant iND 33-120K | 0 ms |
| Giant iND 33-160K | 0 ms |
| Giant iND 33-200K | 0 ms |
| Giant iND 33-250K | 0 ms |
| Giant iND 33-300K, 33-400K | 0 ms |
波形
| Giant iND 33-10K,33-15K | Pure Sine Wave |
|---|---|
| Giant iND 33-20K | Pure Sine Wave |
| Giant iND 33-30K | Pure Sine Wave |
| Giant iND 33-40K | Pure Sine Wave |
| Giant iND 33-60K | Pure Sine Wave |
| Giant iND 33-80K | Pure Sine Wave |
| Giant iND 33-100K | Pure Sine Wave |
| Giant iND 33-120K | Pure Sine Wave |
| Giant iND 33-160K | Pure Sine Wave |
| Giant iND 33-200K | Pure Sine Wave |
| Giant iND 33-250K | Pure Sine Wave |
| Giant iND 33-300K, 33-400K | Pure Sine Wave |
超载能力
| Giant iND 33-10K,33-15K | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms |
|---|---|
| Giant iND 33-20K | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms |
| Giant iND 33-30K | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms |
| Giant iND 33-40K | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms |
| Giant iND 33-60K | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms |
| Giant iND 33-80K | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms |
| Giant iND 33-100K | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms |
| Giant iND 33-120K | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms |
| Giant iND 33-160K | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms |
| Giant iND 33-200K | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms |
| Giant iND 33-250K | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms |
| Giant iND 33-300K, 33-400K | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms |
额定电压
| Giant iND 33-10K,33-15K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
|---|---|
| Giant iND 33-20K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
| Giant iND 33-30K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
| Giant iND 33-40K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
| Giant iND 33-60K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
| Giant iND 33-80K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
| Giant iND 33-100K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
| Giant iND 33-120K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
| Giant iND 33-160K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
| Giant iND 33-200K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
| Giant iND 33-250K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
| Giant iND 33-300K, 33-400K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
连接类型
| Giant iND 33-10K,33-15K | Hardwire 5-wire (3Ph+N+G) |
|---|---|
| Giant iND 33-20K | Hardwire 5-wire (3Ph+N+G) |
| Giant iND 33-30K | Hardwire 5-wire (3Ph+N+G) |
| Giant iND 33-40K | Hardwire 5-wire (3Ph+N+G) |
| Giant iND 33-60K | Hardwire 5-wire (3Ph+N+G) |
| Giant iND 33-80K | Hardwire 5-wire (3Ph+N+G) |
| Giant iND 33-100K | Hardwire 5-wire (3Ph+N+G) |
| Giant iND 33-120K | Hardwire 5-wire (3Ph+N+G) |
| Giant iND 33-160K | Hardwire 5-wire (3Ph+N+G) |
| Giant iND 33-200K | Hardwire 5-wire (3Ph+N+G) |
| Giant iND 33-250K | Hardwire 5-wire (3Ph+N+G) |
| Giant iND 33-300K, 33-400K | Hardwire 5-wire (3Ph+N+G) |
波峰因子
| Giant iND 33-10K,33-15K | 3:1 |
|---|---|
| Giant iND 33-20K | 3:1 |
| Giant iND 33-30K | 3:1 |
| Giant iND 33-40K | 3:1 |
| Giant iND 33-60K | 3:1 |
| Giant iND 33-80K | 3:1 |
| Giant iND 33-100K | 3:1 |
| Giant iND 33-120K | 3:1 |
| Giant iND 33-160K | 3:1 |
| Giant iND 33-200K | 3:1 |
| Giant iND 33-250K | 3:1 |
| Giant iND 33-300K, 33-400K | 3:1 |
动态浪涌电压范围
| Giant iND 33-10K,33-15K | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% |
|---|---|
| Giant iND 33-20K | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% |
| Giant iND 33-30K | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% |
| Giant iND 33-40K | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% |
| Giant iND 33-60K | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% |
| Giant iND 33-80K | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% |
| Giant iND 33-100K | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% |
| Giant iND 33-120K | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% |
| Giant iND 33-160K | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% |
| Giant iND 33-200K | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% |
| Giant iND 33-250K | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% |
| Giant iND 33-300K, 33-400K | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% |
动态恢复时间（III级）
| Giant iND 33-10K,33-15K | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage |
|---|---|
| Giant iND 33-20K | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage |
| Giant iND 33-30K | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage |
| Giant iND 33-40K | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage |
| Giant iND 33-60K | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage |
| Giant iND 33-80K | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage |
| Giant iND 33-100K | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage |
| Giant iND 33-120K | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage |
| Giant iND 33-160K | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage |
| Giant iND 33-200K | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage |
| Giant iND 33-250K | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage |
| Giant iND 33-300K, 33-400K | 0%~100% RCD load：<60 ms recover to 90% of nominal voltage |
频率
| Giant iND 33-10K,33-15K | 50 Hz |
|---|---|
| Giant iND 33-20K | 50 Hz |
| Giant iND 33-30K | 50 Hz |
| Giant iND 33-40K | 50 Hz |
| Giant iND 33-60K | 50 Hz |
| Giant iND 33-80K | 50 Hz |
| Giant iND 33-100K | 50 Hz |
| Giant iND 33-120K | 50 Hz |
| Giant iND 33-160K | 50 Hz |
| Giant iND 33-200K | 50 Hz |
| Giant iND 33-250K | 50 Hz |
| Giant iND 33-300K, 33-400K | 50 Hz |
频率稳定性
| Giant iND 33-10K,33-15K | ± 1% |
|---|---|
| Giant iND 33-20K | ± 1% |
| Giant iND 33-30K | ± 1% |
| Giant iND 33-40K | ± 1% |
| Giant iND 33-60K | ± 1% |
| Giant iND 33-80K | ± 1% |
| Giant iND 33-100K | ± 1% |
| Giant iND 33-120K | ± 1% |
| Giant iND 33-160K | ± 1% |
| Giant iND 33-200K | ± 1% |
| Giant iND 33-250K | ± 1% |
| Giant iND 33-300K, 33-400K | ± 1% |
频率同步范围
| Giant iND 33-10K,33-15K | ± 5Hz (Equal to bypass working range) |
|---|---|
| Giant iND 33-20K | ± 5Hz (Equal to bypass working range) |
| Giant iND 33-30K | ± 5Hz (Equal to bypass working range) |
| Giant iND 33-40K | ± 5Hz (Equal to bypass working range) |
| Giant iND 33-60K | ± 5Hz (Equal to bypass working range) |
| Giant iND 33-80K | ± 5Hz (Equal to bypass working range) |
| Giant iND 33-100K | ± 5Hz (Equal to bypass working range) |
| Giant iND 33-120K | ± 5Hz (Equal to bypass working range) |
| Giant iND 33-160K | ± 5Hz (Equal to bypass working range) |
| Giant iND 33-200K | ± 5Hz (Equal to bypass working range) |
| Giant iND 33-250K | ± 5Hz (Equal to bypass working range) |
| Giant iND 33-300K, 33-400K | ± 5Hz (Equal to bypass working range) |
相位换置
| Giant iND 33-10K,33-15K | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) |
|---|---|
| Giant iND 33-20K | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) |
| Giant iND 33-30K | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) |
| Giant iND 33-40K | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) |
| Giant iND 33-60K | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) |
| Giant iND 33-80K | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) |
| Giant iND 33-100K | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) |
| Giant iND 33-120K | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) |
| Giant iND 33-160K | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) |
| Giant iND 33-200K | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) |
| Giant iND 33-250K | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) |
| Giant iND 33-300K, 33-400K | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) |
功率因数
| Giant iND 33-10K,33-15K | 0.8 |
|---|---|
| Giant iND 33-20K | 0.8 |
| Giant iND 33-30K | 0.8 |
| Giant iND 33-40K | 0.8 |
| Giant iND 33-60K | 0.8 |
| Giant iND 33-80K | 0.8 |
| Giant iND 33-100K | 0.8 |
| Giant iND 33-120K | 0.8 |
| Giant iND 33-160K | 0.8 |
| Giant iND 33-200K | 0.8 |
| Giant iND 33-250K | 0.8 |
| Giant iND 33-300K, 33-400K | 0.8 |
短路能力
| Giant iND 33-10K,33-15K | 60~100ms |
|---|---|
| Giant iND 33-20K | 60~100ms |
| Giant iND 33-30K | 60~100ms |
| Giant iND 33-40K | 60~100ms |
| Giant iND 33-60K | 60~100ms |
| Giant iND 33-80K | 60~100ms |
| Giant iND 33-100K | 60~100ms |
| Giant iND 33-120K | 60~100ms |
| Giant iND 33-160K | 60~100ms |
| Giant iND 33-200K | 60~100ms |
| Giant iND 33-250K | 60~100ms |
| Giant iND 33-300K, 33-400K | 60~100ms |
总谐波失真（THDv）
| Giant iND 33-10K,33-15K | <2% (Linear Load); <4% (Non-linear Load) |
|---|---|
| Giant iND 33-20K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 33-30K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 33-40K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 33-60K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 33-80K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 33-100K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 33-120K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 33-160K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 33-200K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 33-250K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 33-300K, 33-400K | <2% (Linear Load); <4% (Non-linear Load) |
瞬态响应时间
| Giant iND 33-10K,33-15K | < 5ms |
|---|---|
| Giant iND 33-20K | < 5ms |
| Giant iND 33-30K | < 5ms |
| Giant iND 33-40K | < 5ms |
| Giant iND 33-60K | < 5ms |
| Giant iND 33-80K | < 5ms |
| Giant iND 33-100K | < 5ms |
| Giant iND 33-120K | < 5ms |
| Giant iND 33-160K | < 5ms |
| Giant iND 33-200K | < 5ms |
| Giant iND 33-250K | < 5ms |
| Giant iND 33-300K, 33-400K | < 5ms |
输出电压稳定性 瞬态
| Giant iND 33-10K,33-15K | ± 5% |
|---|---|
| Giant iND 33-20K | ± 5% |
| Giant iND 33-30K | ± 5% |
| Giant iND 33-40K | ± 5% |
| Giant iND 33-60K | ± 5% |
| Giant iND 33-80K | ± 5% |
| Giant iND 33-100K | ± 5% |
| Giant iND 33-120K | ± 5% |
| Giant iND 33-160K | ± 5% |
| Giant iND 33-200K | ± 5% |
| Giant iND 33-250K | ± 5% |
| Giant iND 33-300K, 33-400K | ± 5% |
输出电压稳定性 稳定状态
| Giant iND 33-10K,33-15K | ± 1% |
|---|---|
| Giant iND 33-20K | ± 1% |
| Giant iND 33-30K | ± 1% |
| Giant iND 33-40K | ± 1% |
| Giant iND 33-60K | ± 1% |
| Giant iND 33-80K | ± 1% |
| Giant iND 33-100K | ± 1% |
| Giant iND 33-120K | ± 1% |
| Giant iND 33-160K | ± 1% |
| Giant iND 33-200K | ± 1% |
| Giant iND 33-250K | ± 1% |
| Giant iND 33-300K, 33-400K | ± 1% |
总谐波失真（THDv）
| Giant iND 33-10K,33-15K | <2% (Linear Load); <4% (Non-linear Load) |
|---|---|
| Giant iND 33-20K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 33-30K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 33-40K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 33-60K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 33-80K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 33-100K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 33-120K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 33-160K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 33-200K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 33-250K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 33-300K, 33-400K | <2% (Linear Load); <4% (Non-linear Load) |
旁路
连接类型
| Giant iND 33-10K,33-15K | Hardwire 5-wire (3Ph+N+G) |
|---|---|
| Giant iND 33-20K | Hardwire 5-wire (3Ph+N+G) |
| Giant iND 33-30K | Hardwire 5-wire (3Ph+N+G) |
| Giant iND 33-40K | Hardwire 5-wire (3Ph+N+G) |
| Giant iND 33-60K | Hardwire 5-wire (3Ph+N+G) |
| Giant iND 33-80K | Hardwire 5-wire (3Ph+N+G) |
| Giant iND 33-100K | Hardwire 5-wire (3Ph+N+G) |
| Giant iND 33-120K | Hardwire 5-wire (3Ph+N+G) |
| Giant iND 33-160K | Hardwire 5-wire (3Ph+N+G) |
| Giant iND 33-200K | Hardwire 5-wire (3Ph+N+G) |
| Giant iND 33-250K | Hardwire 5-wire (3Ph+N+G) |
| Giant iND 33-300K, 33-400K | Hardwire 5-wire (3Ph+N+G) |
输入电压范围
| Giant iND 33-10K,33-15K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
|---|---|
| Giant iND 33-20K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
| Giant iND 33-30K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
| Giant iND 33-40K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
| Giant iND 33-60K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
| Giant iND 33-80K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
| Giant iND 33-100K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
| Giant iND 33-120K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
| Giant iND 33-160K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
| Giant iND 33-200K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
| Giant iND 33-250K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
| Giant iND 33-300K, 33-400K | 3 x 380VAC/400VAC/415VAC (3Ph+N) |
超载能力
| Giant iND 33-10K,33-15K | 1.5 In~1.8 In 1h~30s |
|---|---|
| Giant iND 33-20K | 1.5 In~1.8 In 1h~30s |
| Giant iND 33-30K | 1.5 In~1.8 In 1h~30s |
| Giant iND 33-40K | 1.5 In~1.8 In 1h~30s |
| Giant iND 33-60K | 1.5 In~1.8 In 1h~30s |
| Giant iND 33-80K | 1.5 In~1.8 In 1h~30s |
| Giant iND 33-100K | 1.5 In~1.8 In 1h~30s |
| Giant iND 33-120K | 1.5 In~1.8 In 1h~30s |
| Giant iND 33-160K | 1.5 In~1.8 In 1h~30s |
| Giant iND 33-200K | 1.5 In~1.8 In 1h~30s |
| Giant iND 33-250K | 1.5 In~1.8 In 1h~30s |
| Giant iND 33-300K, 33-400K | 1.5 In~1.8 In 1h~30s |
短路能力
| Giant iND 33-10K,33-15K | 1.8 In~>2.0 In 30s~200ms |
|---|---|
| Giant iND 33-20K | 1.8 In~>2.0 In 30s~200ms |
| Giant iND 33-30K | 1.8 In~>2.0 In 30s~200ms |
| Giant iND 33-40K | 1.8 In~>2.0 In 30s~200ms |
| Giant iND 33-60K | 1.8 In~>2.0 In 30s~200ms |
| Giant iND 33-80K | 1.8 In~>2.0 In 30s~200ms |
| Giant iND 33-100K | 1.8 In~>2.0 In 30s~200ms |
| Giant iND 33-120K | 1.8 In~>2.0 In 30s~200ms |
| Giant iND 33-160K | 1.8 In~>2.0 In 30s~200ms |
| Giant iND 33-200K | 1.8 In~>2.0 In 30s~200ms |
| Giant iND 33-250K | 1.8 In~>2.0 In 30s~200ms |
| Giant iND 33-300K, 33-400K | 1.8 In~>2.0 In 30s~200ms |
系统
ECO模式（非并行模型）
| Giant iND 33-10K,33-15K | Yes |
|---|---|
| Giant iND 33-20K | Yes |
| Giant iND 33-30K | Yes |
| Giant iND 33-40K | Yes |
| Giant iND 33-60K | Yes |
| Giant iND 33-80K | Yes |
| Giant iND 33-100K | Yes |
| Giant iND 33-120K | Yes |
| Giant iND 33-160K | Yes |
| Giant iND 33-200K | Yes |
| Giant iND 33-250K | Yes |
| Giant iND 33-300K, 33-400K | Yes |
EPO功能
| Giant iND 33-10K,33-15K | Yes |
|---|---|
| Giant iND 33-20K | Yes |
| Giant iND 33-30K | Yes |
| Giant iND 33-40K | Yes |
| Giant iND 33-60K | Yes |
| Giant iND 33-80K | Yes |
| Giant iND 33-100K | Yes |
| Giant iND 33-120K | Yes |
| Giant iND 33-160K | Yes |
| Giant iND 33-200K | Yes |
| Giant iND 33-250K | Yes |
| Giant iND 33-300K, 33-400K | Yes |
标准
| Giant iND 33-10K,33-15K | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety |
|---|---|
| Giant iND 33-20K | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety |
| Giant iND 33-30K | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety |
| Giant iND 33-40K | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety |
| Giant iND 33-60K | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety |
| Giant iND 33-80K | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety |
| Giant iND 33-100K | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety |
| Giant iND 33-120K | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety |
| Giant iND 33-160K | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety |
| Giant iND 33-200K | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety |
| Giant iND 33-250K | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety |
| Giant iND 33-300K, 33-400K | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety |
效率（线性负载）
| Giant iND 33-10K,33-15K | 90% |
|---|---|
| Giant iND 33-20K | 91% |
| Giant iND 33-30K | 91% |
| Giant iND 33-40K | 91% |
| Giant iND 33-60K | 91% |
| Giant iND 33-80K | 92% |
| Giant iND 33-100K | 92% |
| Giant iND 33-120K | 92% |
| Giant iND 33-160K | 92% |
| Giant iND 33-200K | 92% |
| Giant iND 33-250K | 92% |
| Giant iND 33-300K, 33-400K | 93% |
电池和整流器
电池 冷启动
| Giant iND 33-10K,33-15K | Yes |
|---|---|
| Giant iND 33-20K | Yes |
| Giant iND 33-30K | Yes |
| Giant iND 33-40K | Yes |
| Giant iND 33-60K | Yes |
| Giant iND 33-80K | Yes |
| Giant iND 33-100K | Yes |
| Giant iND 33-120K | Yes |
| Giant iND 33-160K | Yes |
| Giant iND 33-200K | Yes |
| Giant iND 33-250K | Yes |
| Giant iND 33-300K, 33-400K | Yes |
电池 反向二极管
| Giant iND 33-10K,33-15K | NO |
|---|---|
| Giant iND 33-20K | NO |
| Giant iND 33-30K | NO |
| Giant iND 33-40K | NO |
| Giant iND 33-60K | NO |
| Giant iND 33-80K | NO |
| Giant iND 33-100K | NO |
| Giant iND 33-120K | NO |
| Giant iND 33-160K | NO |
| Giant iND 33-200K | NO |
| Giant iND 33-250K | NO |
| Giant iND 33-300K, 33-400K | NO |
电池 数字
| Giant iND 33-10K,33-15K | 32 pcs (29~32 adjustable) |
|---|---|
| Giant iND 33-20K | 32 pcs (29~32 adjustable) |
| Giant iND 33-30K | 32 pcs (29~32 adjustable) |
| Giant iND 33-40K | 32 pcs (29~32 adjustable) |
| Giant iND 33-60K | 32 pcs (29~32 adjustable) |
| Giant iND 33-80K | 32 pcs (29~32 adjustable) |
| Giant iND 33-100K | 32 pcs (29~32 adjustable) |
| Giant iND 33-120K | 32 pcs (29~32 adjustable) |
| Giant iND 33-160K | 32 pcs (29~32 adjustable) |
| Giant iND 33-200K | 32 pcs (29~32 adjustable) |
| Giant iND 33-250K | 32 pcs (29~32 adjustable) |
| Giant iND 33-300K, 33-400K | 32 pcs (29~32 adjustable) |
电池 类型
| Giant iND 33-10K,33-15K | Support VRLA Battery |
|---|---|
| Giant iND 33-20K | Support VRLA Battery |
| Giant iND 33-30K | Support VRLA Battery |
| Giant iND 33-40K | Support VRLA Battery |
| Giant iND 33-60K | Support VRLA Battery |
| Giant iND 33-80K | Support VRLA Battery |
| Giant iND 33-100K | Support VRLA Battery |
| Giant iND 33-120K | Support VRLA Battery |
| Giant iND 33-160K | Support VRLA Battery |
| Giant iND 33-200K | Support VRLA Battery |
| Giant iND 33-250K | Support VRLA Battery |
| Giant iND 33-300K, 33-400K | Support VRLA Battery |
整流器 充电器电压
| Giant iND 33-10K,33-15K | 395 VDC~435 VDC (Adjustable) |
|---|---|
| Giant iND 33-20K | 395 VDC~435 VDC (Adjustable) |
| Giant iND 33-30K | 395 VDC~435 VDC (Adjustable) |
| Giant iND 33-40K | 395 VDC~435 VDC (Adjustable) |
| Giant iND 33-60K | 395 VDC~435 VDC (Adjustable) |
| Giant iND 33-80K | 395 VDC~435 VDC (Adjustable) |
| Giant iND 33-100K | 395 VDC~435 VDC (Adjustable) |
| Giant iND 33-120K | 395 VDC~435 VDC (Adjustable) |
| Giant iND 33-160K | 395 VDC~435 VDC (Adjustable) |
| Giant iND 33-200K | 395 VDC~435 VDC (Adjustable) |
| Giant iND 33-250K | 395 VDC~435 VDC (Adjustable) |
| Giant iND 33-300K, 33-400K | 395 VDC~435 VDC (Adjustable) |
整流器 充电电流（最大）
| Giant iND 33-10K,33-15K | Default 10A, Maximum=Capacity/Battery Voltage |
|---|---|
| Giant iND 33-20K | Default 10A, Maximum=Capacity/Battery Voltage |
| Giant iND 33-30K | Default 10A, Maximum 40A |
| Giant iND 33-40K | Default 10A, Maximum 40A |
| Giant iND 33-60K | Default 10A, Maximum 40A |
| Giant iND 33-80K | Default 10A, Maximum 40A |
| Giant iND 33-100K | Default 10A, Maximum 40A |
| Giant iND 33-120K | Default 10A, Maximum 40A |
| Giant iND 33-160K | Default 10A, Maximum 40A |
| Giant iND 33-200K | Default 10A, Maximum 40A |
| Giant iND 33-250K | Default 10A, Maximum 40A |
| Giant iND 33-300K, 33-400K | Default 10A, Maximum 40A |
整流器 类型
| Giant iND 33-10K,33-15K | 6 pulse |
|---|---|
| Giant iND 33-20K | 6 pulse |
| Giant iND 33-30K | 6 pulse |
| Giant iND 33-40K | 6 pulse |
| Giant iND 33-60K | 6 pulse |
| Giant iND 33-80K | 6 pulse |
| Giant iND 33-100K | 6 pulse or 12 pulse |
| Giant iND 33-120K | 6 pulse or 12 pulse |
| Giant iND 33-160K | 6 pulse or 12 pulse |
| Giant iND 33-200K | 6 pulse or 12 pulse |
| Giant iND 33-250K | 12 pulse |
| Giant iND 33-300K, 33-400K | 12 pulse |
整流器 额定输出电压
| Giant iND 33-10K,33-15K | 384 VDC |
|---|---|
| Giant iND 33-20K | 384 VDC |
| Giant iND 33-30K | 384 VDC |
| Giant iND 33-40K | 384 VDC |
| Giant iND 33-60K | 384 VDC |
| Giant iND 33-80K | 384 VDC |
| Giant iND 33-100K | 384 VDC |
| Giant iND 33-120K | 384 VDC |
| Giant iND 33-160K | 384 VDC |
| Giant iND 33-200K | 384 VDC |
| Giant iND 33-250K | 384 VDC |
| Giant iND 33-300K, 33-400K | 384 VDC |
环境
工作温度
| Giant iND 33-10K,33-15K | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load |
|---|---|
| Giant iND 33-20K | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load |
| Giant iND 33-30K | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load |
| Giant iND 33-40K | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load |
| Giant iND 33-60K | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load |
| Giant iND 33-80K | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load |
| Giant iND 33-100K | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load |
| Giant iND 33-120K | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load |
| Giant iND 33-160K | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load |
| Giant iND 33-200K | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load |
| Giant iND 33-250K | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load |
| Giant iND 33-300K, 33-400K | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load |
工作湿度
| Giant iND 33-10K,33-15K | 0~90% (Non-condensing) |
|---|---|
| Giant iND 33-20K | 0~90% (Non-condensing) |
| Giant iND 33-30K | 0~90% (Non-condensing) |
| Giant iND 33-40K | 0~90% (Non-condensing) |
| Giant iND 33-60K | 0~90% (Non-condensing) |
| Giant iND 33-80K | 0~90% (Non-condensing) |
| Giant iND 33-100K | 0~90% (Non-condensing) |
| Giant iND 33-120K | 0~90% (Non-condensing) |
| Giant iND 33-160K | 0~90% (Non-condensing) |
| Giant iND 33-200K | 0~90% (Non-condensing) |
| Giant iND 33-250K | 0~90% (Non-condensing) |
| Giant iND 33-300K, 33-400K | 0~90% (Non-condensing) |
噪音水平
| Giant iND 33-10K,33-15K | Less than 70dB @ 1 Meter |
|---|---|
| Giant iND 33-20K | Less than 70dB @ 1 Meter |
| Giant iND 33-30K | Less than 70dB @ 1 Meter |
| Giant iND 33-40K | Less than 70dB @ 1 Meter |
| Giant iND 33-60K | Less than 70dB @ 1 Meter |
| Giant iND 33-80K | Less than 70dB @ 1 Meter |
| Giant iND 33-100K | Less than 70dB @ 1 Meter |
| Giant iND 33-120K | Less than 70dB @ 1 Meter |
| Giant iND 33-160K | Less than 70dB @ 1 Meter |
| Giant iND 33-200K | Less than 70dB @ 1 Meter |
| Giant iND 33-250K | Less than 70dB @ 1 Meter |
| Giant iND 33-300K, 33-400K | Less than 72dB @ 1 Meter |
物理
尺寸（深 x 宽 x 高）mm
| Giant iND 33-10K,33-15K | 800 x 800 x 1800 |
|---|---|
| Giant iND 33-20K | 800 x 800 x 1800 |
| Giant iND 33-30K | 800 x 800 x 1800 |
| Giant iND 33-40K | 800 x 800 x 1800 |
| Giant iND 33-60K | 800 x 800 x 1800 |
| Giant iND 33-80K | 800 x 800 x 1800 |
| Giant iND 33-100K | 800 x 1200 x 1800 |
| Giant iND 33-120K | 800 x 1200 x 1800 |
| Giant iND 33-160K | 800 x 1600 x 1800 |
| Giant iND 33-200K | 800 x 1600 x 1800 |
| Giant iND 33-250K | 800 x 1600 x 1800 |
| Giant iND 33-300K, 33-400K | 850 x 1630 x 1900 |
净重（公斤）
| Giant iND 33-10K,33-15K | 290,312 |
|---|---|
| Giant iND 33-20K | 349 |
| Giant iND 33-30K | 385 |
| Giant iND 33-40K | 427 |
| Giant iND 33-60K | 508 |
| Giant iND 33-80K | 563 |
| Giant iND 33-100K | 760 |
| Giant iND 33-120K | 850 |
| Giant iND 33-160K | 1120 |
| Giant iND 33-200K | 1390 |
| Giant iND 33-250K | 1750 |
| Giant iND 33-300K, 33-400K | 2100, 2500 |
知识产权保护
| Giant iND 33-10K,33-15K | IP20 (default), IP21/IP31 (Option) |
|---|---|
| Giant iND 33-20K | IP20 (default), IP21/IP31 (Option) |
| Giant iND 33-30K | IP20 (default), IP21/IP31 (Option) |
| Giant iND 33-40K | IP20 (default), IP21/IP31 (Option) |
| Giant iND 33-60K | IP20 (default), IP21/IP31 (Option) |
| Giant iND 33-80K | IP20 (default), IP21/IP31 (Option) |
| Giant iND 33-100K | IP20 (default), IP21/IP31 (Option) |
| Giant iND 33-120K | IP20 (default), IP21/IP31 (Option) |
| Giant iND 33-160K | IP20 (default), IP21/IP31 (Option) |
| Giant iND 33-200K | IP20 (default), IP21/IP31 (Option) |
| Giant iND 33-250K | IP20 (default), IP21/IP31 (Option) |
| Giant iND 33-300K, 33-400K | IP20 (default), IP21/IP31 (Option) |
净重（公斤）
| Giant iND 33-10K,33-15K | 290,312 |
|---|---|
| Giant iND 33-20K | 349 |
| Giant iND 33-30K | 385 |
| Giant iND 33-40K | 427 |
| Giant iND 33-60K | 508 |
| Giant iND 33-80K | 563 |
| Giant iND 33-100K | 760 |
| Giant iND 33-120K | 850 |
| Giant iND 33-160K | 1120 |
| Giant iND 33-200K | 1390 |
| Giant iND 33-250K | 1750 |
| Giant iND 33-300K, 33-400K | 2100, 2500 |
管理
可选的 SNMP
| Giant iND 33-10K,33-15K | Power management from SNMP manager and web browser |
|---|---|
| Giant iND 33-20K | Power management from SNMP manager and web browser |
| Giant iND 33-30K | Power management from SNMP manager and web browser |
| Giant iND 33-40K | Power management from SNMP manager and web browser |
| Giant iND 33-60K | Power management from SNMP manager and web browser |
| Giant iND 33-80K | Power management from SNMP manager and web browser |
| Giant iND 33-100K | Power management from SNMP manager and web browser |
| Giant iND 33-120K | Power management from SNMP manager and web browser |
| Giant iND 33-160K | Power management from SNMP manager and web browser |
| Giant iND 33-200K | Power management from SNMP manager and web browser |
| Giant iND 33-250K | Power management from SNMP manager and web browser |
| Giant iND 33-300K, 33-400K | Power management from SNMP manager and web browser |
Modbus RS-232 / RS485
| Giant iND 33-10K,33-15K | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC |
|---|---|
| Giant iND 33-20K | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC |
| Giant iND 33-30K | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC |
| Giant iND 33-40K | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC |
| Giant iND 33-60K | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC |
| Giant iND 33-80K | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC |
| Giant iND 33-100K | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC |
| Giant iND 33-120K | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC |
| Giant iND 33-160K | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC |
| Giant iND 33-200K | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC |
| Giant iND 33-250K | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC |
| Giant iND 33-300K, 33-400K | Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC |
干接触
| Giant iND 33-10K,33-15K | 6 outputs and 2 inputs |
|---|---|
| Giant iND 33-20K | 6 outputs and 2 inputs |
| Giant iND 33-30K | 6 outputs and 2 inputs |
| Giant iND 33-40K | 6 outputs and 2 inputs |
| Giant iND 33-60K | 6 outputs and 2 inputs |
| Giant iND 33-80K | 6 outputs and 2 inputs |
| Giant iND 33-100K | 6 outputs and 2 inputs |
| Giant iND 33-120K | 6 outputs and 2 inputs |
| Giant iND 33-160K | 6 outputs and 2 inputs |
| Giant iND 33-200K | 6 outputs and 2 inputs |
| Giant iND 33-250K | 6 outputs and 2 inputs |
| Giant iND 33-300K, 33-400K | 6 outputs and 2 inputs |
 |
Brochure | (SC) Giant iND_Brochure |
|
Manual | Giant iND-33-10K-400K-384VDC-manual |
Uncategorized Giant iND 3P/3P 机柜式工频机适用于数据服务中心
相关产品
我们已收到您的会员申请，将尽速于 24 小时内回覆，在此之前您可以先浏览我们的网站，谢谢。
