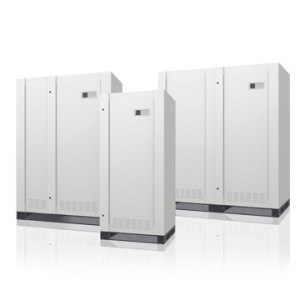

Giant iND 3P/1P
机柜式工频机适用于数据服务中心
Giant iND因其坚固耐用和独特的风道设计而适用于工业应用。 为了提高运行可靠度，Giant iND系列允许连接两个独立的电源输入。
主要特点
- 真正的双转换在线式不断电系统
- DSP技术确保高效能
- 工业级设计应用于各种恶劣条件
- 分层的独立的密封通风通道设计
- 三防漆防护电路板
- 双内置隔离变压器设计
- 智能电池管理,延长电池寿命
- 电池节数可调
- 双输入设计
- 全部采用正面维护
- 超强的短路及过载能力
- 环形通信连接,可最多并机4台运作
| MODEL | Giant iND 31-10K | Giant iND 31-15K | Giant iND 31-20K | Giant iND 31-30K | Giant iND 31-40K | Giant iND 31-60K | |
| 容量 | 10 KVA / 8 KW | 15 KVA / 12 KW | 20KVA/16KW | 30 KVA / 24 KW | 40 KVA / 32 KW | 60 KVA / 48 KW | |
| 输入 | |||||||
| 额定电压 | 3 x 380VAC (3Ph + G or 3Ph + N + G) | 3 x 380VAC (3Ph + G or 3Ph + N + G) | 3 x 380VAC (3Ph + G or 3Ph + N + G) | 3 x 380VAC (3Ph + G or 3Ph + N + G) | 3 x 380VAC (3Ph + G or 3Ph + N + G) | 3 x 380VAC (3Ph + G or 3Ph + N + G) | |
| 可接受的电压范围 | 285VAC~475VAC(ph-ph) | 285VAC~475VAC(ph-ph) | 285VAC~475VAC(ph-ph) | 285VAC~475VAC(ph-ph) | 285VAC~475VAC(ph-ph) | 285VAC~475VAC(ph-ph) | |
| 频率 | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | |
| 输出 | |||||||
| 转移时间 | 0 ms | 0 ms | 0 ms | 0 ms | 0 ms | 0 ms | |
| 波形 | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | |
| 超载能力 | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms | |
| 额定电压 | 220VAC/230VAC/240VAC (Selectable) | 220VAC/230VAC/240VAC (Selectable) | 220VAC/230VAC/240VAC (Selectable) | 220VAC/230VAC/240VAC (Selectable) | 220VAC/230VAC/240VAC (Selectable) | 220VAC/230VAC/240VAC (Selectable) | |
| 连接类型 | Hardwire 3-wire (1Ph+N+G) | Hardwire 3-wire (1Ph+N+G) | Hardwire 3-wire (1Ph+N+G) | Hardwire 3-wire (1Ph+N+G) | Hardwire 3-wire (1Ph+N+G) | Hardwire 3-wire (1Ph+N+G) | |
| 波峰因子 | 3:1 | 3:1 | 3:1 | 3:1 | 3:1 | 3:1 | |
| 动态浪涌电压范围 | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% | |
| 频率 | 50 Hz | 50 Hz | 50 Hz | 50 Hz | 50 Hz | 50 Hz | |
| 频率稳定性 | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | |
| 频率同步范围 | ± 5Hz (Equal to bypass working range) | ± 5Hz (Equal to bypass working range) | ± 5Hz (Equal to bypass working range) | ± 5Hz (Equal to bypass working range) | ± 5Hz (Equal to bypass working range) | ± 5Hz (Equal to bypass working range) | |
| 动态恢复时间 | Recover to 3% within 40ms | Recover to 3% within 40ms | Recover to 3% within 40ms | Recover to 3% within 40ms | Recover to 3% within 40ms | Recover to 3% within 40ms | |
| 相位换置 | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) | |
| 功率因数 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | |
| 短路能力 | 60~100ms | 60~100ms | 60~100ms | 60~100ms | 60~100ms | 60~100ms | |
| 总谐波失真（THDv） | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | |
| 瞬态响应时间 | < 5ms | < 5ms | < 5ms | < 5ms | < 5ms | < 5ms | |
| 输出电压稳定性 | 瞬态 | ± 5% | ± 5% | ± 5% | ± 5% | ± 5% | ± 5% |
| 输出电压稳定性 | 稳定状态 | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% |
| 总谐波失真（THDv） | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | |
| 旁路 | |||||||
| 连接类型 | Hardwire 3-wire (1Ph+N+G) | Hardwire 3-wire (1Ph+N+G) | Hardwire 3-wire (1Ph+N+G) | Hardwire 3-wire (1Ph+N+G) | Hardwire 3-wire (1Ph+N+G) | Hardwire 3-wire (1Ph+N+G) | |
| 输入电压范围 | 220 VAC ± 25% | 220 VAC ± 25% | 220 VAC ± 25% | 220 VAC ± 25% | 220 VAC ± 25% | 220 VAC ± 25% | |
| 超载能力 | 1.5 In~1.8 In 1h~30s | 1.5 In~1.8 In 1h~30s | 1.5 In~1.8 In 1h~30s | 1.5 In~1.8 In 1h~30s | 1.5 In~1.8 In 1h~30s | 1.5 In~1.8 In 1h~30s | |
| 短路能力 | 1.8 In~>2.0 In 30s~200ms | 1.8 In~>2.0 In 30s~200ms | 1.8 In~>2.0 In 30s~200ms | 1.8 In~>2.0 In 30s~200ms | 1.8 In~>2.0 In 30s~200ms | 1.8 In~>2.0 In 30s~200ms | |
| 系统 | |||||||
| ECO模式（非并行模型） | Yes | Yes | Yes | Yes | Yes | Yes | |
| 效率（@线性负载） | ≥90% | ≥90% | ≥90% | ≥90% | ≥90% | ≥90% | |
| EPO功能 | Yes | Yes | Yes | Yes | Yes | Yes | |
| 标准 | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety | |
| 电池和整流器 | |||||||
| 电池 | 冷启动 | Yes | Yes | Yes | Yes | Yes | Yes |
| 电池 | 反向二极管 | Yes | Yes | Yes | Yes | Yes | Yes |
| 电池 | 数字 | 16-18 pcs (adjustable) | 16-18 pcs (adjustable) | 16-18 pcs (adjustable) | 16-18 pcs (adjustable) | 16-18 pcs (adjustable) | 16-18 pcs (adjustable) |
| 电池 | 类型 | Support VRLA Battery | Support VRLA Battery | Support VRLA Battery | Support VRLA Battery | Support VRLA Battery | Support VRLA Battery |
| 整流器 | 充电器电压 | 216 VDC~243 VDC (Adjustable) | 216 VDC~243 VDC (Adjustable) | 216 VDC~243 VDC (Adjustable) | 216 VDC~243 VDC (Adjustable) | 216 VDC~243 VDC (Adjustable) | 216 VDC~243 VDC (Adjustable) |
| 整流器 | 充电电流（最大） | Default 10A, Maximum=Capacity/Battery Voltage | Default 10A, Maximum 40A | Default 10A, Maximum 40A | Default 10A, Maximum 40A | Default 10A, Maximum 40A | Default 10A, Maximum 40A |
| 整流器 | 类型 | 6 pulse | 6 pulse | 6 pulse | 6 pulse | 12 pulse | 12 pulse |
| 整流器 | 额定输出电压 | 220 VDC | 220 VDC | 220 VDC | 220 VDC | 220 VDC | 220 VDC |
| 环境 | |||||||
| 工作温度 | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load | |
| 工作湿度 | 0~90% (Non-condensing) | 0~90% (Non-condensing) | 0~90% (Non-condensing) | 0~90% (Non-condensing) | 0~90% (Non-condensing) | 0~90% (Non-condensing) | |
| 噪音水平 | Less than 70dB @ 1 Meter | Less than 70dB @ 1 Meter | Less than 70dB @ 1 Meter | Less than 70dB @ 1 Meter | Less than 70dB @ 1 Meter | Less than 70dB @ 1 Meter | |
| 物理 | |||||||
| 尺寸（深 x 宽 x 高）mm | 800 x 800 x 1800 | 800 x 800 x 1800 | 800 x 800 x 1800 | 800 x 800 x 1800 | 800 x 800 x 1800 | 800 x 1200 x 1800 | |
| 净重（公斤） | 354 | 386 | 400 | 480 | 680 | 910 | |
| 知识产权保护 | IP20 (Default), IP21/IP31 (Option) | IP20 (Default), IP21/IP31 (Option) | IP20 (Default), IP21/IP31 (Option) | IP20 (Default), IP21/IP31 (Option) | IP20 (Default), IP21/IP31 (Option) | IP20 (Default), IP21/IP31 (Option) | |
| 净重（公斤） | 354 | 386 | 400 | 480 | 680 | 910 | |
| 管理 | |||||||
| 可选的 SNMP | Power management from SNMP manager and web browser | Power management from SNMP manager and web browser | Power management from SNMP manager and web browser | Power management from SNMP manager and web browser | Power management from SNMP manager and web browser | Power management from SNMP manager and web browser | |
| Modbus RS-232 / RS485 | Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux and MAC | Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux and MAC | Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux and MAC | Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux and MAC | Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux and MAC | Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux and MAC | |
| 干接触 | 6 outputs and 2 inputs | 6 outputs and 2 inputs | 6 outputs and 2 inputs | 6 outputs and 2 inputs | 6 outputs and 2 inputs | 6 outputs and 2 inputs | |
| Model | Giant iND 31-80K | Giant iND 31-100K | Giant iND 31-120K | |
| 容量 | 80KVA/64KW | 100 KVA / 80 KW | 120 KVA / 96 KW | |
| 输入 | ||||
| 额定电压 | 3 x 380VAC (3Ph + G or 3Ph + N + G) | 3 x 380VAC (3Ph + G or 3Ph + N + G) | 3 x 380VAC (3Ph + G or 3Ph + N + G) | |
| 可接受的电压范围 | 285VAC~475VAC(ph-ph) | 285VAC~475VAC(ph-ph) | 285VAC~475VAC(ph-ph) | |
| 频率 | 50/60Hz | 50/60Hz | 50/60Hz | |
| 输出 | ||||
| 转移时间 | 0 ms | 0 ms | 0 ms | |
| 波形 | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | |
| 超载能力 | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms | |
| 额定电压 | 220VAC/230VAC/240VAC (Selectable) | 220VAC/230VAC/240VAC (Selectable) | 220VAC/230VAC/240VAC (Selectable) | |
| 连接类型 | Hardwire 3-wire (1Ph+N+G) | Hardwire 3-wire (1Ph+N+G) | Hardwire 3-wire (1Ph+N+G) | |
| 波峰因子 | 3:1 | 3:1 | 3:1 | |
| 动态浪涌电压范围 | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% | |
| 频率 | 50 Hz | 50 Hz | 50 Hz | |
| 频率稳定性 | ± 1% | ± 1% | ± 1% | |
| 频率同步范围 | ± 5Hz (Equal to bypass working range) | ± 5Hz (Equal to bypass working range) | ± 5Hz (Equal to bypass working range) | |
| 动态恢复时间 | Recover to 3% within 40ms | Recover to 3% within 40ms | Recover to 3% within 40ms | |
| 相位换置 | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) | |
| 功率因数 | 0.8 | 0.8 | 0.8 | |
| 短路能力 | 60~100ms | 60~100ms | 60~100ms | |
| 总谐波失真（THDv） | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | |
| 瞬态响应时间 | < 5ms | < 5ms | < 5ms | |
| 输出电压稳定性 | 瞬态 | ± 5% | ± 5% | ± 5% |
| 输出电压稳定性 | 稳定状态 | ± 1% | ± 1% | ± 1% |
| 总谐波失真（THDv） | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | <2% (Linear Load); <4% (Non-linear Load) | |
| 旁路 | ||||
| 连接类型 | Hardwire 3-wire (1Ph+N+G) | Hardwire 3-wire (1Ph+N+G) | Hardwire 3-wire (1Ph+N+G) | |
| 输入电压范围 | 220 VAC ± 25% | 220 VAC ± 25% | 220 VAC ± 25% | |
| 超载能力 | 1.5 In~1.8 In 1h~30s | 1.5 In~1.8 In 1h~30s | 1.5 In~1.8 In 1h~30s | |
| 短路能力 | 1.8 In~>2.0 In 30s~200ms | 1.8 In~>2.0 In 30s~200ms | 1.8 In~>2.0 In 30s~200ms | |
| 系统 | ||||
| ECO模式（非并行模型） | Yes | Yes | Yes | |
| 效率（@线性负载） | ≥90% | ≥90% | ≥90% | |
| EPO功能 | Yes | Yes | Yes | |
| 标准 | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety | |
| 电池和整流器 | ||||
| 电池 | 冷启动 | Yes | Yes | Yes |
| 电池 | 反向二极管 | Yes | Yes | Yes |
| 电池 | 数字 | 16-18 pcs (adjustable) | 16-18 pcs (adjustable) | 16-18 pcs (adjustable) |
| 电池 | 类型 | Support VRLA Battery | Support VRLA Battery | Support VRLA Battery |
| 整流器 | 充电器电压 | 216 VDC~243 VDC (Adjustable) | 216 VDC~243 VDC (Adjustable) | 216 VDC~243 VDC (Adjustable) |
| 整流器 | 充电电流（最大） | Default 10A, Maximum 40A | Default 10A, Maximum 40A | Default 10A, Maximum 40A |
| 整流器 | 类型 | 12 pulse | 12 pulse | 12 pulse |
| 整流器 | 额定输出电压 | 220 VDC | 220 VDC | 220 VDC |
| 环境 | ||||
| 工作温度 | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load | |
| 工作湿度 | 0~90% (Non-condensing) | 0~90% (Non-condensing) | 0~90% (Non-condensing) | |
| 噪音水平 | Less than 70dB @ 1 Meter | Less than 70dB @ 1 Meter | Less than 70dB @ 1 Meter | |
| 物理 | ||||
| 尺寸（深 x 宽 x 高）mm | 800 x 1200 x 1800 | 800 x 1600 x 1800 | 800 x 1600 x 1800 | |
| 净重（公斤） | 1010 | 1360 | 1620 | |
| 知识产权保护 | IP20 (Default), IP21/IP31 (Option) | IP20 (Default), IP21/IP31 (Option) | IP20 (Default), IP21/IP31 (Option) | |
| 净重（公斤） | 1010 | 1360 | 1620 | |
| 管理 | ||||
| 可选的 SNMP | Power management from SNMP manager and web browser | Power management from SNMP manager and web browser | Power management from SNMP manager and web browser | |
| Modbus RS-232 / RS485 | Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux and MAC | Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux and MAC | Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux and MAC | |
| 干接触 | 6 outputs and 2 inputs | 6 outputs and 2 inputs | 6 outputs and 2 inputs | |
General
容量
| Giant iND 31-10K | 10 KVA / 8 KW |
|---|---|
| Giant iND 31-15K | 15 KVA / 12 KW |
| Giant iND 31-20K | 20KVA/16KW |
| Giant iND 31-30K | 30 KVA / 24 KW |
| Giant iND 31-40K | 40 KVA / 32 KW |
| Giant iND 31-60K | 60 KVA / 48 KW |
| Giant iND 31-80K | 80KVA/64KW |
| Giant iND 31-100K | 100 KVA / 80 KW |
| Giant iND 31-120K | 120 KVA / 96 KW |
输入
额定电压
| Giant iND 31-10K | 3 x 380VAC (3Ph + G or 3Ph + N + G) |
|---|---|
| Giant iND 31-15K | 3 x 380VAC (3Ph + G or 3Ph + N + G) |
| Giant iND 31-20K | 3 x 380VAC (3Ph + G or 3Ph + N + G) |
| Giant iND 31-30K | 3 x 380VAC (3Ph + G or 3Ph + N + G) |
| Giant iND 31-40K | 3 x 380VAC (3Ph + G or 3Ph + N + G) |
| Giant iND 31-60K | 3 x 380VAC (3Ph + G or 3Ph + N + G) |
| Giant iND 31-80K | 3 x 380VAC (3Ph + G or 3Ph + N + G) |
| Giant iND 31-100K | 3 x 380VAC (3Ph + G or 3Ph + N + G) |
| Giant iND 31-120K | 3 x 380VAC (3Ph + G or 3Ph + N + G) |
可接受的电压范围
| Giant iND 31-10K | 285VAC~475VAC(ph-ph) |
|---|---|
| Giant iND 31-15K | 285VAC~475VAC(ph-ph) |
| Giant iND 31-20K | 285VAC~475VAC(ph-ph) |
| Giant iND 31-30K | 285VAC~475VAC(ph-ph) |
| Giant iND 31-40K | 285VAC~475VAC(ph-ph) |
| Giant iND 31-60K | 285VAC~475VAC(ph-ph) |
| Giant iND 31-80K | 285VAC~475VAC(ph-ph) |
| Giant iND 31-100K | 285VAC~475VAC(ph-ph) |
| Giant iND 31-120K | 285VAC~475VAC(ph-ph) |
频率
| Giant iND 31-10K | 50/60Hz |
|---|---|
| Giant iND 31-15K | 50/60Hz |
| Giant iND 31-20K | 50/60Hz |
| Giant iND 31-30K | 50/60Hz |
| Giant iND 31-40K | 50/60Hz |
| Giant iND 31-60K | 50/60Hz |
| Giant iND 31-80K | 50/60Hz |
| Giant iND 31-100K | 50/60Hz |
| Giant iND 31-120K | 50/60Hz |
输出
转移时间
| Giant iND 31-10K | 0 ms |
|---|---|
| Giant iND 31-15K | 0 ms |
| Giant iND 31-20K | 0 ms |
| Giant iND 31-30K | 0 ms |
| Giant iND 31-40K | 0 ms |
| Giant iND 31-60K | 0 ms |
| Giant iND 31-80K | 0 ms |
| Giant iND 31-100K | 0 ms |
| Giant iND 31-120K | 0 ms |
波形
| Giant iND 31-10K | Pure Sine Wave |
|---|---|
| Giant iND 31-15K | Pure Sine Wave |
| Giant iND 31-20K | Pure Sine Wave |
| Giant iND 31-30K | Pure Sine Wave |
| Giant iND 31-40K | Pure Sine Wave |
| Giant iND 31-60K | Pure Sine Wave |
| Giant iND 31-80K | Pure Sine Wave |
| Giant iND 31-100K | Pure Sine Wave |
| Giant iND 31-120K | Pure Sine Wave |
超载能力
| Giant iND 31-10K | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms |
|---|---|
| Giant iND 31-15K | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms |
| Giant iND 31-20K | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms |
| Giant iND 31-30K | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms |
| Giant iND 31-40K | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms |
| Giant iND 31-60K | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms |
| Giant iND 31-80K | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms |
| Giant iND 31-100K | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms |
| Giant iND 31-120K | 0%~110% continuous running; 110%~150% for 10 min~1 min; >160% for 200ms |
额定电压
| Giant iND 31-10K | 220VAC/230VAC/240VAC (Selectable) |
|---|---|
| Giant iND 31-15K | 220VAC/230VAC/240VAC (Selectable) |
| Giant iND 31-20K | 220VAC/230VAC/240VAC (Selectable) |
| Giant iND 31-30K | 220VAC/230VAC/240VAC (Selectable) |
| Giant iND 31-40K | 220VAC/230VAC/240VAC (Selectable) |
| Giant iND 31-60K | 220VAC/230VAC/240VAC (Selectable) |
| Giant iND 31-80K | 220VAC/230VAC/240VAC (Selectable) |
| Giant iND 31-100K | 220VAC/230VAC/240VAC (Selectable) |
| Giant iND 31-120K | 220VAC/230VAC/240VAC (Selectable) |
连接类型
| Giant iND 31-10K | Hardwire 3-wire (1Ph+N+G) |
|---|---|
| Giant iND 31-15K | Hardwire 3-wire (1Ph+N+G) |
| Giant iND 31-20K | Hardwire 3-wire (1Ph+N+G) |
| Giant iND 31-30K | Hardwire 3-wire (1Ph+N+G) |
| Giant iND 31-40K | Hardwire 3-wire (1Ph+N+G) |
| Giant iND 31-60K | Hardwire 3-wire (1Ph+N+G) |
| Giant iND 31-80K | Hardwire 3-wire (1Ph+N+G) |
| Giant iND 31-100K | Hardwire 3-wire (1Ph+N+G) |
| Giant iND 31-120K | Hardwire 3-wire (1Ph+N+G) |
波峰因子
| Giant iND 31-10K | 3:1 |
|---|---|
| Giant iND 31-15K | 3:1 |
| Giant iND 31-20K | 3:1 |
| Giant iND 31-30K | 3:1 |
| Giant iND 31-40K | 3:1 |
| Giant iND 31-60K | 3:1 |
| Giant iND 31-80K | 3:1 |
| Giant iND 31-100K | 3:1 |
| Giant iND 31-120K | 3:1 |
动态浪涌电压范围
| Giant iND 31-10K | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% |
|---|---|
| Giant iND 31-15K | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% |
| Giant iND 31-20K | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% |
| Giant iND 31-30K | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% |
| Giant iND 31-40K | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% |
| Giant iND 31-60K | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% |
| Giant iND 31-80K | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% |
| Giant iND 31-100K | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% |
| Giant iND 31-120K | 0%->100%->0% (R Load) <±5%；20%->100%->20% (R Load) ±3% |
频率
| Giant iND 31-10K | 50 Hz |
|---|---|
| Giant iND 31-15K | 50 Hz |
| Giant iND 31-20K | 50 Hz |
| Giant iND 31-30K | 50 Hz |
| Giant iND 31-40K | 50 Hz |
| Giant iND 31-60K | 50 Hz |
| Giant iND 31-80K | 50 Hz |
| Giant iND 31-100K | 50 Hz |
| Giant iND 31-120K | 50 Hz |
频率稳定性
| Giant iND 31-10K | ± 1% |
|---|---|
| Giant iND 31-15K | ± 1% |
| Giant iND 31-20K | ± 1% |
| Giant iND 31-30K | ± 1% |
| Giant iND 31-40K | ± 1% |
| Giant iND 31-60K | ± 1% |
| Giant iND 31-80K | ± 1% |
| Giant iND 31-100K | ± 1% |
| Giant iND 31-120K | ± 1% |
频率同步范围
| Giant iND 31-10K | ± 5Hz (Equal to bypass working range) |
|---|---|
| Giant iND 31-15K | ± 5Hz (Equal to bypass working range) |
| Giant iND 31-20K | ± 5Hz (Equal to bypass working range) |
| Giant iND 31-30K | ± 5Hz (Equal to bypass working range) |
| Giant iND 31-40K | ± 5Hz (Equal to bypass working range) |
| Giant iND 31-60K | ± 5Hz (Equal to bypass working range) |
| Giant iND 31-80K | ± 5Hz (Equal to bypass working range) |
| Giant iND 31-100K | ± 5Hz (Equal to bypass working range) |
| Giant iND 31-120K | ± 5Hz (Equal to bypass working range) |
动态恢复时间
| Giant iND 31-10K | Recover to 3% within 40ms |
|---|---|
| Giant iND 31-15K | Recover to 3% within 40ms |
| Giant iND 31-20K | Recover to 3% within 40ms |
| Giant iND 31-30K | Recover to 3% within 40ms |
| Giant iND 31-40K | Recover to 3% within 40ms |
| Giant iND 31-60K | Recover to 3% within 40ms |
| Giant iND 31-80K | Recover to 3% within 40ms |
| Giant iND 31-100K | Recover to 3% within 40ms |
| Giant iND 31-120K | Recover to 3% within 40ms |
相位换置
| Giant iND 31-10K | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) |
|---|---|
| Giant iND 31-15K | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) |
| Giant iND 31-20K | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) |
| Giant iND 31-30K | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) |
| Giant iND 31-40K | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) |
| Giant iND 31-60K | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) |
| Giant iND 31-80K | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) |
| Giant iND 31-100K | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) |
| Giant iND 31-120K | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) |
功率因数
| Giant iND 31-10K | 0.8 |
|---|---|
| Giant iND 31-15K | 0.8 |
| Giant iND 31-20K | 0.8 |
| Giant iND 31-30K | 0.8 |
| Giant iND 31-40K | 0.8 |
| Giant iND 31-60K | 0.8 |
| Giant iND 31-80K | 0.8 |
| Giant iND 31-100K | 0.8 |
| Giant iND 31-120K | 0.8 |
短路能力
| Giant iND 31-10K | 60~100ms |
|---|---|
| Giant iND 31-15K | 60~100ms |
| Giant iND 31-20K | 60~100ms |
| Giant iND 31-30K | 60~100ms |
| Giant iND 31-40K | 60~100ms |
| Giant iND 31-60K | 60~100ms |
| Giant iND 31-80K | 60~100ms |
| Giant iND 31-100K | 60~100ms |
| Giant iND 31-120K | 60~100ms |
总谐波失真（THDv）
| Giant iND 31-10K | <2% (Linear Load); <4% (Non-linear Load) |
|---|---|
| Giant iND 31-15K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 31-20K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 31-30K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 31-40K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 31-60K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 31-80K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 31-100K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 31-120K | <2% (Linear Load); <4% (Non-linear Load) |
瞬态响应时间
| Giant iND 31-10K | < 5ms |
|---|---|
| Giant iND 31-15K | < 5ms |
| Giant iND 31-20K | < 5ms |
| Giant iND 31-30K | < 5ms |
| Giant iND 31-40K | < 5ms |
| Giant iND 31-60K | < 5ms |
| Giant iND 31-80K | < 5ms |
| Giant iND 31-100K | < 5ms |
| Giant iND 31-120K | < 5ms |
输出电压稳定性 瞬态
| Giant iND 31-10K | ± 5% |
|---|---|
| Giant iND 31-15K | ± 5% |
| Giant iND 31-20K | ± 5% |
| Giant iND 31-30K | ± 5% |
| Giant iND 31-40K | ± 5% |
| Giant iND 31-60K | ± 5% |
| Giant iND 31-80K | ± 5% |
| Giant iND 31-100K | ± 5% |
| Giant iND 31-120K | ± 5% |
输出电压稳定性 稳定状态
| Giant iND 31-10K | ± 1% |
|---|---|
| Giant iND 31-15K | ± 1% |
| Giant iND 31-20K | ± 1% |
| Giant iND 31-30K | ± 1% |
| Giant iND 31-40K | ± 1% |
| Giant iND 31-60K | ± 1% |
| Giant iND 31-80K | ± 1% |
| Giant iND 31-100K | ± 1% |
| Giant iND 31-120K | ± 1% |
总谐波失真（THDv）
| Giant iND 31-10K | <2% (Linear Load); <4% (Non-linear Load) |
|---|---|
| Giant iND 31-15K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 31-20K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 31-30K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 31-40K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 31-60K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 31-80K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 31-100K | <2% (Linear Load); <4% (Non-linear Load) |
| Giant iND 31-120K | <2% (Linear Load); <4% (Non-linear Load) |
旁路
连接类型
| Giant iND 31-10K | Hardwire 3-wire (1Ph+N+G) |
|---|---|
| Giant iND 31-15K | Hardwire 3-wire (1Ph+N+G) |
| Giant iND 31-20K | Hardwire 3-wire (1Ph+N+G) |
| Giant iND 31-30K | Hardwire 3-wire (1Ph+N+G) |
| Giant iND 31-40K | Hardwire 3-wire (1Ph+N+G) |
| Giant iND 31-60K | Hardwire 3-wire (1Ph+N+G) |
| Giant iND 31-80K | Hardwire 3-wire (1Ph+N+G) |
| Giant iND 31-100K | Hardwire 3-wire (1Ph+N+G) |
| Giant iND 31-120K | Hardwire 3-wire (1Ph+N+G) |
输入电压范围
| Giant iND 31-10K | 220 VAC ± 25% |
|---|---|
| Giant iND 31-15K | 220 VAC ± 25% |
| Giant iND 31-20K | 220 VAC ± 25% |
| Giant iND 31-30K | 220 VAC ± 25% |
| Giant iND 31-40K | 220 VAC ± 25% |
| Giant iND 31-60K | 220 VAC ± 25% |
| Giant iND 31-80K | 220 VAC ± 25% |
| Giant iND 31-100K | 220 VAC ± 25% |
| Giant iND 31-120K | 220 VAC ± 25% |
超载能力
| Giant iND 31-10K | 1.5 In~1.8 In 1h~30s |
|---|---|
| Giant iND 31-15K | 1.5 In~1.8 In 1h~30s |
| Giant iND 31-20K | 1.5 In~1.8 In 1h~30s |
| Giant iND 31-30K | 1.5 In~1.8 In 1h~30s |
| Giant iND 31-40K | 1.5 In~1.8 In 1h~30s |
| Giant iND 31-60K | 1.5 In~1.8 In 1h~30s |
| Giant iND 31-80K | 1.5 In~1.8 In 1h~30s |
| Giant iND 31-100K | 1.5 In~1.8 In 1h~30s |
| Giant iND 31-120K | 1.5 In~1.8 In 1h~30s |
短路能力
| Giant iND 31-10K | 1.8 In~>2.0 In 30s~200ms |
|---|---|
| Giant iND 31-15K | 1.8 In~>2.0 In 30s~200ms |
| Giant iND 31-20K | 1.8 In~>2.0 In 30s~200ms |
| Giant iND 31-30K | 1.8 In~>2.0 In 30s~200ms |
| Giant iND 31-40K | 1.8 In~>2.0 In 30s~200ms |
| Giant iND 31-60K | 1.8 In~>2.0 In 30s~200ms |
| Giant iND 31-80K | 1.8 In~>2.0 In 30s~200ms |
| Giant iND 31-100K | 1.8 In~>2.0 In 30s~200ms |
| Giant iND 31-120K | 1.8 In~>2.0 In 30s~200ms |
系统
ECO模式（非并行模型）
| Giant iND 31-10K | Yes |
|---|---|
| Giant iND 31-15K | Yes |
| Giant iND 31-20K | Yes |
| Giant iND 31-30K | Yes |
| Giant iND 31-40K | Yes |
| Giant iND 31-60K | Yes |
| Giant iND 31-80K | Yes |
| Giant iND 31-100K | Yes |
| Giant iND 31-120K | Yes |
效率（@线性负载）
| Giant iND 31-10K | ≥90% |
|---|---|
| Giant iND 31-15K | ≥90% |
| Giant iND 31-20K | ≥90% |
| Giant iND 31-30K | ≥90% |
| Giant iND 31-40K | ≥90% |
| Giant iND 31-60K | ≥90% |
| Giant iND 31-80K | ≥90% |
| Giant iND 31-100K | ≥90% |
| Giant iND 31-120K | ≥90% |
EPO功能
| Giant iND 31-10K | Yes |
|---|---|
| Giant iND 31-15K | Yes |
| Giant iND 31-20K | Yes |
| Giant iND 31-30K | Yes |
| Giant iND 31-40K | Yes |
| Giant iND 31-60K | Yes |
| Giant iND 31-80K | Yes |
| Giant iND 31-100K | Yes |
| Giant iND 31-120K | Yes |
标准
| Giant iND 31-10K | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety |
|---|---|
| Giant iND 31-15K | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety |
| Giant iND 31-20K | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety |
| Giant iND 31-30K | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety |
| Giant iND 31-40K | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety |
| Giant iND 31-60K | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety |
| Giant iND 31-80K | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety |
| Giant iND 31-100K | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety |
| Giant iND 31-120K | IEC 61000-4-5 Surge Protection, IEC 62040-2 EMC/EMI, IEC62040-1 Safety |
电池和整流器
电池 冷启动
| Giant iND 31-10K | Yes |
|---|---|
| Giant iND 31-15K | Yes |
| Giant iND 31-20K | Yes |
| Giant iND 31-30K | Yes |
| Giant iND 31-40K | Yes |
| Giant iND 31-60K | Yes |
| Giant iND 31-80K | Yes |
| Giant iND 31-100K | Yes |
| Giant iND 31-120K | Yes |
电池 反向二极管
| Giant iND 31-10K | Yes |
|---|---|
| Giant iND 31-15K | Yes |
| Giant iND 31-20K | Yes |
| Giant iND 31-30K | Yes |
| Giant iND 31-40K | Yes |
| Giant iND 31-60K | Yes |
| Giant iND 31-80K | Yes |
| Giant iND 31-100K | Yes |
| Giant iND 31-120K | Yes |
电池 数字
| Giant iND 31-10K | 16-18 pcs (adjustable) |
|---|---|
| Giant iND 31-15K | 16-18 pcs (adjustable) |
| Giant iND 31-20K | 16-18 pcs (adjustable) |
| Giant iND 31-30K | 16-18 pcs (adjustable) |
| Giant iND 31-40K | 16-18 pcs (adjustable) |
| Giant iND 31-60K | 16-18 pcs (adjustable) |
| Giant iND 31-80K | 16-18 pcs (adjustable) |
| Giant iND 31-100K | 16-18 pcs (adjustable) |
| Giant iND 31-120K | 16-18 pcs (adjustable) |
电池 类型
| Giant iND 31-10K | Support VRLA Battery |
|---|---|
| Giant iND 31-15K | Support VRLA Battery |
| Giant iND 31-20K | Support VRLA Battery |
| Giant iND 31-30K | Support VRLA Battery |
| Giant iND 31-40K | Support VRLA Battery |
| Giant iND 31-60K | Support VRLA Battery |
| Giant iND 31-80K | Support VRLA Battery |
| Giant iND 31-100K | Support VRLA Battery |
| Giant iND 31-120K | Support VRLA Battery |
整流器 充电器电压
| Giant iND 31-10K | 216 VDC~243 VDC (Adjustable) |
|---|---|
| Giant iND 31-15K | 216 VDC~243 VDC (Adjustable) |
| Giant iND 31-20K | 216 VDC~243 VDC (Adjustable) |
| Giant iND 31-30K | 216 VDC~243 VDC (Adjustable) |
| Giant iND 31-40K | 216 VDC~243 VDC (Adjustable) |
| Giant iND 31-60K | 216 VDC~243 VDC (Adjustable) |
| Giant iND 31-80K | 216 VDC~243 VDC (Adjustable) |
| Giant iND 31-100K | 216 VDC~243 VDC (Adjustable) |
| Giant iND 31-120K | 216 VDC~243 VDC (Adjustable) |
整流器 充电电流（最大）
| Giant iND 31-10K | Default 10A, Maximum=Capacity/Battery Voltage |
|---|---|
| Giant iND 31-15K | Default 10A, Maximum 40A |
| Giant iND 31-20K | Default 10A, Maximum 40A |
| Giant iND 31-30K | Default 10A, Maximum 40A |
| Giant iND 31-40K | Default 10A, Maximum 40A |
| Giant iND 31-60K | Default 10A, Maximum 40A |
| Giant iND 31-80K | Default 10A, Maximum 40A |
| Giant iND 31-100K | Default 10A, Maximum 40A |
| Giant iND 31-120K | Default 10A, Maximum 40A |
整流器 类型
| Giant iND 31-10K | 6 pulse |
|---|---|
| Giant iND 31-15K | 6 pulse |
| Giant iND 31-20K | 6 pulse |
| Giant iND 31-30K | 6 pulse |
| Giant iND 31-40K | 12 pulse |
| Giant iND 31-60K | 12 pulse |
| Giant iND 31-80K | 12 pulse |
| Giant iND 31-100K | 12 pulse |
| Giant iND 31-120K | 12 pulse |
整流器 额定输出电压
| Giant iND 31-10K | 220 VDC |
|---|---|
| Giant iND 31-15K | 220 VDC |
| Giant iND 31-20K | 220 VDC |
| Giant iND 31-30K | 220 VDC |
| Giant iND 31-40K | 220 VDC |
| Giant iND 31-60K | 220 VDC |
| Giant iND 31-80K | 220 VDC |
| Giant iND 31-100K | 220 VDC |
| Giant iND 31-120K | 220 VDC |
环境
工作温度
| Giant iND 31-10K | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load |
|---|---|
| Giant iND 31-15K | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load |
| Giant iND 31-20K | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load |
| Giant iND 31-30K | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load |
| Giant iND 31-40K | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load |
| Giant iND 31-60K | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load |
| Giant iND 31-80K | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load |
| Giant iND 31-100K | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load |
| Giant iND 31-120K | 0~35°C continuous running, 40°C 8-hour running at nomina linput voltage, recharging batteries and no overload, 45°C derating to 85% with linear load |
工作湿度
| Giant iND 31-10K | 0~90% (Non-condensing) |
|---|---|
| Giant iND 31-15K | 0~90% (Non-condensing) |
| Giant iND 31-20K | 0~90% (Non-condensing) |
| Giant iND 31-30K | 0~90% (Non-condensing) |
| Giant iND 31-40K | 0~90% (Non-condensing) |
| Giant iND 31-60K | 0~90% (Non-condensing) |
| Giant iND 31-80K | 0~90% (Non-condensing) |
| Giant iND 31-100K | 0~90% (Non-condensing) |
| Giant iND 31-120K | 0~90% (Non-condensing) |
噪音水平
| Giant iND 31-10K | Less than 70dB @ 1 Meter |
|---|---|
| Giant iND 31-15K | Less than 70dB @ 1 Meter |
| Giant iND 31-20K | Less than 70dB @ 1 Meter |
| Giant iND 31-30K | Less than 70dB @ 1 Meter |
| Giant iND 31-40K | Less than 70dB @ 1 Meter |
| Giant iND 31-60K | Less than 70dB @ 1 Meter |
| Giant iND 31-80K | Less than 70dB @ 1 Meter |
| Giant iND 31-100K | Less than 70dB @ 1 Meter |
| Giant iND 31-120K | Less than 70dB @ 1 Meter |
物理
尺寸（深 x 宽 x 高）mm
| Giant iND 31-10K | 800 x 800 x 1800 |
|---|---|
| Giant iND 31-15K | 800 x 800 x 1800 |
| Giant iND 31-20K | 800 x 800 x 1800 |
| Giant iND 31-30K | 800 x 800 x 1800 |
| Giant iND 31-40K | 800 x 800 x 1800 |
| Giant iND 31-60K | 800 x 1200 x 1800 |
| Giant iND 31-80K | 800 x 1200 x 1800 |
| Giant iND 31-100K | 800 x 1600 x 1800 |
| Giant iND 31-120K | 800 x 1600 x 1800 |
净重（公斤）
| Giant iND 31-10K | 354 |
|---|---|
| Giant iND 31-15K | 386 |
| Giant iND 31-20K | 400 |
| Giant iND 31-30K | 480 |
| Giant iND 31-40K | 680 |
| Giant iND 31-60K | 910 |
| Giant iND 31-80K | 1010 |
| Giant iND 31-100K | 1360 |
| Giant iND 31-120K | 1620 |
知识产权保护
| Giant iND 31-10K | IP20 (Default), IP21/IP31 (Option) |
|---|---|
| Giant iND 31-15K | IP20 (Default), IP21/IP31 (Option) |
| Giant iND 31-20K | IP20 (Default), IP21/IP31 (Option) |
| Giant iND 31-30K | IP20 (Default), IP21/IP31 (Option) |
| Giant iND 31-40K | IP20 (Default), IP21/IP31 (Option) |
| Giant iND 31-60K | IP20 (Default), IP21/IP31 (Option) |
| Giant iND 31-80K | IP20 (Default), IP21/IP31 (Option) |
| Giant iND 31-100K | IP20 (Default), IP21/IP31 (Option) |
| Giant iND 31-120K | IP20 (Default), IP21/IP31 (Option) |
净重（公斤）
| Giant iND 31-10K | 354 |
|---|---|
| Giant iND 31-15K | 386 |
| Giant iND 31-20K | 400 |
| Giant iND 31-30K | 480 |
| Giant iND 31-40K | 680 |
| Giant iND 31-60K | 910 |
| Giant iND 31-80K | 1010 |
| Giant iND 31-100K | 1360 |
| Giant iND 31-120K | 1620 |
管理
可选的 SNMP
| Giant iND 31-10K | Power management from SNMP manager and web browser |
|---|---|
| Giant iND 31-15K | Power management from SNMP manager and web browser |
| Giant iND 31-20K | Power management from SNMP manager and web browser |
| Giant iND 31-30K | Power management from SNMP manager and web browser |
| Giant iND 31-40K | Power management from SNMP manager and web browser |
| Giant iND 31-60K | Power management from SNMP manager and web browser |
| Giant iND 31-80K | Power management from SNMP manager and web browser |
| Giant iND 31-100K | Power management from SNMP manager and web browser |
| Giant iND 31-120K | Power management from SNMP manager and web browser |
Modbus RS-232 / RS485
| Giant iND 31-10K | Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux and MAC |
|---|---|
| Giant iND 31-15K | Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux and MAC |
| Giant iND 31-20K | Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux and MAC |
| Giant iND 31-30K | Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux and MAC |
| Giant iND 31-40K | Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux and MAC |
| Giant iND 31-60K | Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux and MAC |
| Giant iND 31-80K | Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux and MAC |
| Giant iND 31-100K | Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux and MAC |
| Giant iND 31-120K | Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux and MAC |
干接触
| Giant iND 31-10K | 6 outputs and 2 inputs |
|---|---|
| Giant iND 31-15K | 6 outputs and 2 inputs |
| Giant iND 31-20K | 6 outputs and 2 inputs |
| Giant iND 31-30K | 6 outputs and 2 inputs |
| Giant iND 31-40K | 6 outputs and 2 inputs |
| Giant iND 31-60K | 6 outputs and 2 inputs |
| Giant iND 31-80K | 6 outputs and 2 inputs |
| Giant iND 31-100K | 6 outputs and 2 inputs |
| Giant iND 31-120K | 6 outputs and 2 inputs |
 |
Brochure | (SC) Giant iND_Brochure |
|
Manual | (SC) Giant iND31 DC384V |
|
Manual | (SC) Giant iND31-220VDC |
Uncategorized Giant iND 3P/1P 机柜式工频机适用于数据服务中心
相关产品
我们已收到您的会员申请，将尽速于 24 小时内回覆，在此之前您可以先浏览我们的网站，谢谢。
