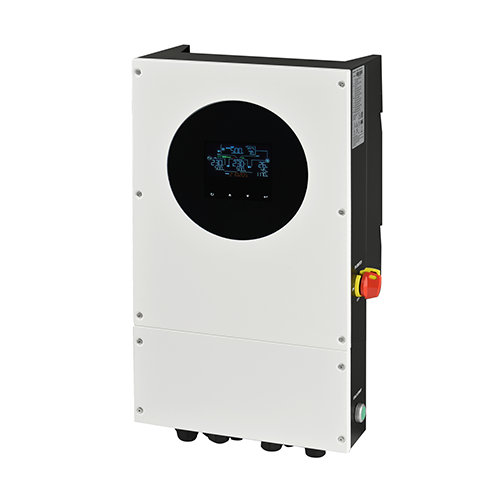

InfiniSolar WP 10KW-15KW
Hybrid inverter features IP65 rated enclosure
With Ingress protection to IP65, InfiniSolar WP 10kW - 15kW is suitable for use both in outdoor applications and indoor environments where atmospheric moisture and dust are present. Parallel operation max to 6 units for greater power and capacity, enables a power rating of up to 90kW. This makes it possible to create energy solutions for homes, offices, and small commercial building applications.
Main Features
  • IP65 waterproof and dustproof makes the inverter available for various
  • working conditions.
  • Self-consumption and Feed-in to the grid
  • Programmable supply priority for PV, Battery or Grid
  • User-adjustable charging current and voltage
  • Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
  • Built-in timer for various mode of on/off operation
  • Reserved communication port for BMS (RS485)
  • Parallel operation up to 6 units
MODEL
General
PHASE
InfiniSolar WP 10KW3-phase in/3-phase out
InfiniSolar WP 12KW3-phase in/3-phase out
InfiniSolar WP 15KW3-phase in/3-phase out
Maximum PV Input Power
InfiniSolar WP 10KW14500W
InfiniSolar WP 12KW16000W
InfiniSolar WP 15KW22500W
Rated Output Power
InfiniSolar WP 10KW10000 W
InfiniSolar WP 12KW12000 W
InfiniSolar WP 15KW15000 W
Maximum Charging Power
InfiniSolar WP 10KW10000 W
InfiniSolar WP 12KW12000 W
InfiniSolar WP 15KW15000 W
GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage
InfiniSolar WP 10KW720 VDC / 1000 VDC
InfiniSolar WP 12KW720 VDC / 1000 VDC
InfiniSolar WP 15KW720 VDC / 1000 VDC
Start-up Voltage / Initial Feeding Voltage
InfiniSolar WP 10KW320 VDC / 350 VDC
InfiniSolar WP 12KW320 VDC / 350 VDC
InfiniSolar WP 15KW320 VDC / 350 VDC
Number of MPP Trackers/Max. Input Current
InfiniSolar WP 10KW2 / A: 26A, B: 26A
InfiniSolar WP 12KW2 / A: 26A, B: 26A
InfiniSolar WP 15KW2 / A: 26A, B: 26A
MPP Voltage Range
InfiniSolar WP 10KW350 VDC ~ 950 VDC
InfiniSolar WP 12KW350 VDC ~ 950 VDC
InfiniSolar WP 15KW350 VDC ~ 950 VDC
Number of Strings Per MPP Tracker
InfiniSolar WP 10KWA: 2, B: 2
InfiniSolar WP 12KWA: 2, B: 2
InfiniSolar WP 15KWA: 2, B: 2
GRID OUTPUT (AC)
Output Frequency Range
InfiniSolar WP 10KW47.5 ~ 51.5 Hz or 59.3 ~ 60.5 Hz
InfiniSolar WP 12KW47.5 ~ 51.5 Hz or 59.3 ~ 60.5 Hz
InfiniSolar WP 15KW47.5 ~ 51.5 Hz or 59.3 ~ 60.5 Hz
Nominal Output Voltage
InfiniSolar WP 10KW230 VAC (P-N) / 400 VAC (P-P)
InfiniSolar WP 12KW230 VAC (P-N) / 400 VAC (P-P)
InfiniSolar WP 15KW230 VAC (P-N) / 400 VAC (P-P)
Output Voltage Range
InfiniSolar WP 10KW184 - 265 VAC per phase
InfiniSolar WP 12KW184 - 265 VAC per phase
InfiniSolar WP 15KW184 - 265 VAC per phase
Nominal Output Current
InfiniSolar WP 10KW14.5 A per phase
InfiniSolar WP 12KW17.4 A per phase
InfiniSolar WP 15KW21.7 A per phase
Power Factor
InfiniSolar WP 10KW0.9 lag ~ 0.9 lead
InfiniSolar WP 12KW0.9 lag ~ 0.9 lead
InfiniSolar WP 15KW0.9 lag ~ 0.9 lead
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)
InfiniSolar WP 10KW>96%
InfiniSolar WP 12KW>96%
InfiniSolar WP 15KW>96%
European Efficiency@ Vnominal
InfiniSolar WP 10KW>95%
InfiniSolar WP 12KW>95%
InfiniSolar WP 15KW>95%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage
InfiniSolar WP 10KW120 - 140 VAC per phase/180 VAC per phase
InfiniSolar WP 12KW120 - 140 VAC per phase/180 VAC per phase
InfiniSolar WP 15KW120 - 140 VAC per phase/180 VAC per phase
Acceptable Voltage Range
InfiniSolar WP 10KW170 - 290 VAC per phase
InfiniSolar WP 12KW170 - 290 VAC per phase
InfiniSolar WP 15KW170 - 290 VAC per phase
Maximum AC Input Current
InfiniSolar WP 10KW40 A
InfiniSolar WP 12KW40 A
InfiniSolar WP 15KW40 A
PV INPUT (DC)
Maximum DC Voltage
InfiniSolar WP 10KW1000 VDC
InfiniSolar WP 12KW1000 VDC
InfiniSolar WP 15KW1000 VDC
Number of MPP Trackers/Max. Input Current
InfiniSolar WP 10KW2 / A: 26A, B: 26A
InfiniSolar WP 12KW2 / A: 26A, B: 26A
InfiniSolar WP 15KW2 / A: 26A, B: 26A
MPP Voltage Range
InfiniSolar WP 10KW350 VDC ~ 950 VDC
InfiniSolar WP 12KW350 VDC ~ 950 VDC
InfiniSolar WP 15KW350 VDC ~ 950 VDC
Maximum DC Power
InfiniSolar WP 10KW14500W
InfiniSolar WP 12KW16000W
InfiniSolar WP 15KW22500W
Number of Strings Per MPP Tracker
InfiniSolar WP 10KWA: 2, B: 2
InfiniSolar WP 12KWA: 2, B: 2
InfiniSolar WP 15KWA: 2, B: 2
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage
InfiniSolar WP 10KW230 VAC (P-N) / 400 VAC (P-P)
InfiniSolar WP 12KW230 VAC (P-N) / 400 VAC (P-P)
InfiniSolar WP 15KW230 VAC (P-N) / 400 VAC (P-P)
Output Waveform
InfiniSolar WP 10KWPure sine wave
InfiniSolar WP 12KWPure sine wave
InfiniSolar WP 15KWPure sine wave
Efficiency (DC to AC)
InfiniSolar WP 10KW91%
InfiniSolar WP 12KW91%
InfiniSolar WP 15KW91%
Output Frequency
InfiniSolar WP 10KW50 Hz / 60 Hz (auto sensing)
InfiniSolar WP 12KW50 Hz / 60 Hz (auto sensing)
InfiniSolar WP 15KW50 Hz / 60 Hz (auto sensing)
HYBRID OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage
InfiniSolar WP 10KW720 VDC / 14500 VDC
InfiniSolar WP 12KW720 VDC / 16000 VDC
InfiniSolar WP 15KW720 VDC / 22500 VDC
Start-up Voltage / Initial Feeding Voltage
InfiniSolar WP 10KW320 VDC / 350 VDC
InfiniSolar WP 12KW320 VDC / 350 VDC
InfiniSolar WP 15KW320 VDC / 350 VDC
Number of MPP Trackers/Max. Input Current
InfiniSolar WP 10KW2 / A: 26A, B: 26A
InfiniSolar WP 12KW2 / A: 26A, B: 26A
InfiniSolar WP 15KW2 / A: 26A, B: 26A
MPP Voltage Range
InfiniSolar WP 10KW350 VDC ~ 950 VDC
InfiniSolar WP 12KW350 VDC ~ 950 VDC
InfiniSolar WP 15KW350 VDC ~ 950 VDC
Number of Strings Per MPP Tracker
InfiniSolar WP 10KWA: 2, B: 2
InfiniSolar WP 12KWA: 2, B: 2
InfiniSolar WP 15KWA: 2, B: 2
GRID OUTPUT (AC)
Nominal Output Current
InfiniSolar WP 10KW14.5 A per phase
InfiniSolar WP 12KW17.4 A per phase
InfiniSolar WP 15KW21.7 A per phase
Nominal Output Voltage
InfiniSolar WP 10KW230 VAC (P-N) / 400 VAC (P-P)
InfiniSolar WP 12KW230 VAC (P-N) / 400 VAC (P-P)
InfiniSolar WP 15KW230 VAC (P-N) / 400 VAC (P-P)
Output Frequency Range
InfiniSolar WP 10KW47.5 ~ 51.5 Hz or 59.3 ~ 60.5 Hz
InfiniSolar WP 12KW47.5 ~ 51.5 Hz or 59.3 ~ 60.5 Hz
InfiniSolar WP 15KW47.5 ~ 51.5 Hz or 59.3 ~ 60.5 Hz
Output Voltage Range
InfiniSolar WP 10KW184 - 265 VAC per phase
InfiniSolar WP 12KW184 - 265 VAC per phase
InfiniSolar WP 15KW184 - 265 VAC per phase
Power Factor range
InfiniSolar WP 10KW0.9 lag ~ 0.9 lead
InfiniSolar WP 12KW0.9 lag ~ 0.9 lead
InfiniSolar WP 15KW0.9 lag ~ 0.9 lead
AC INPUT
AC Start-up Voltage / Auto Restart Voltage
InfiniSolar WP 10KW120 - 140 VAC per phase/180 VAC per phase
InfiniSolar WP 12KW120 - 140 VAC per phase/180 VAC per phase
InfiniSolar WP 15KW120 - 140 VAC per phase/180 VAC per phase
Acceptable Voltage Range
InfiniSolar WP 10KW170 - 290 VAC per phase
InfiniSolar WP 12KW170 - 290 VAC per phase
InfiniSolar WP 15KW170 - 290 VAC per phase
Maximum AC Input Current
InfiniSolar WP 10KW40 A
InfiniSolar WP 12KW40 A
InfiniSolar WP 15KW40 A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage
InfiniSolar WP 10KW230 VAC (P-N) / 400 VAC (P-P)
InfiniSolar WP 12KW230 VAC (P-N) / 400 VAC (P-P)
InfiniSolar WP 15KW230 VAC (P-N) / 400 VAC (P-P)
Efficiency (DC to AC)
InfiniSolar WP 10KW91%
InfiniSolar WP 12KW91%
InfiniSolar WP 15KW91%
Output Waveform
InfiniSolar WP 10KWPure sine wave
InfiniSolar WP 12KWPure sine wave
InfiniSolar WP 15KWPure sine wave
Output Frequency
InfiniSolar WP 10KW50 Hz / 60 Hz (auto sensing)
InfiniSolar WP 12KW50 Hz / 60 Hz (auto sensing)
InfiniSolar WP 15KW50 Hz / 60 Hz (auto sensing)
BATTERY & CHARGER
Maximum Charging Current
InfiniSolar WP 10KW220 A
InfiniSolar WP 12KW250 A
InfiniSolar WP 15KW300 A
Battery Voltage Range
InfiniSolar WP 10KW40 ~ 62 VDC
InfiniSolar WP 12KW40 ~ 62 VDC
InfiniSolar WP 15KW40 ~ 62 VDC
GENERAL
PHYSICAL
Dimension, D X W X H (mm)
InfiniSolar WP 10KW255 x 660x 750
InfiniSolar WP 12KW255 x 660 x 750
InfiniSolar WP 15KW255 x 660 x 750
Net Weight (kgs)
InfiniSolar WP 10KW70
InfiniSolar WP 12KW70
InfiniSolar WP 15KW73
IP protection
InfiniSolar WP 10KWIP 65
InfiniSolar WP 12KWIP 65
InfiniSolar WP 15KWIP 65
INTERFACE
Communication Port
InfiniSolar WP 10KWRS-232, RS-485, USB, CAN and Wi-Fi
InfiniSolar WP 12KWRS-232, RS-485, USB, CAN and Wi-Fi
InfiniSolar WP 15KWRS-232, RS-485, USB, CAN and Wi-Fi
Intelligent Slot
InfiniSolar WP 10KWOptional for SNMP and Modbus cards
InfiniSolar WP 12KWOptional for SNMP and Modbus cards
InfiniSolar WP 15KWOptional for SNMP and Modbus cards
ENVIRONMENT
Operating Humidity
InfiniSolar WP 10KW0 ~ 100% RH (Non-condensing)
InfiniSolar WP 12KW0 ~ 100% RH (Non-condensing)
InfiniSolar WP 15KW0 ~ 100% RH (Non-condensing)
Operating Temperature
InfiniSolar WP 10KW-25 to 60°C, > 45°C power derating
InfiniSolar WP 12KW-25 to 60°C, > 45°C power derating
InfiniSolar WP 15KW-25 to 60°C, > 45°C power derating
Altitude
InfiniSolar WP 10KW0 ~ 1000 m**
InfiniSolar WP 12KW0 ~ 1000 m**
InfiniSolar WP 15KW0 ~ 1000 m**
