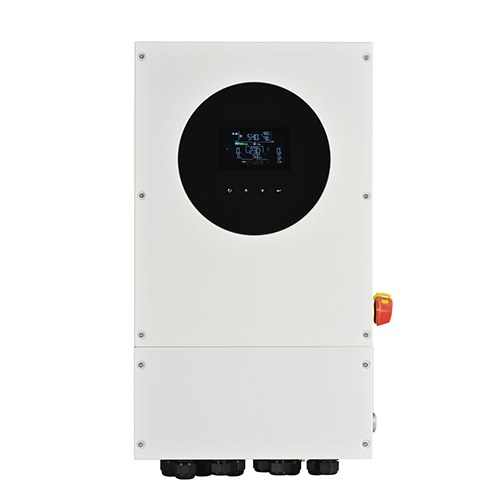

infini V4 WP PLUS 6kW
Infini V4 WP PLUS is a robust, user-friendly hybrid solar inverter with dual MPPTs, designed for efficient solar energy management, supporting battery storage, and featuring dual inputs/outputs for smart energy distribution. It boasts high current capacity, remote monitoring via WiFi and a mobile app, flexible grid interaction, and configurable power source priority. It also supports BMS communication and scalable parallel operation up to 9 units.
Add to Compare Add to Inquiry
Main Features
  • User-friendly HMI/ LCD design and easy configuration
  • Built-in 2 MPP trackers
  • Supports energy storage from the generator
  • Dual inputs and dual outputs for smart energy management
  • Max. PV input current 21A
  • Max.. charging current 135A
  • Built-in WiFi with an app for mobile monitoring
  • Self-consumption and Feed-in to the grid
  • Programmable supply priority for PV, Battery, or Grid
  • Built-in communication port for BMS (RS485)
  • Parallel operation up to 9 units
MODEL
General
PHASE
Infini V4 WP 6KW Plus1-phase in/1-phase out
Maximum PV Input Power
Infini V4 WP 6KW Plus12000W
Rated Output Power
Infini V4 WP 6KW Plus6000VA/6000W
Maximum Charging Power
Infini V4 WP 6KW Plus6000W
GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage
Infini V4 WP 6KW Plus500 VDC
Start-up Voltage / Initial Feeding Voltage
Infini V4 WP 6KW Plus80VDC / 150 VDC
MPPT Voltage Range
Infini V4 WP 6KW Plus120 VDC ~ 450 VDC
Number of MPP Trackers/Max. Input Current
Infini V4 WP 6KW Plus2 / 21A
GRID OUTPUT (AC)
Nominal Output Voltage
Infini V4 WP 6KW Plus220/230/240 VAC
Output Voltage Range
Infini V4 WP 6KW Plus184 - 264.5 VAC or 195.5 - 253 VAC or 182 - 260 VAC (Selectable)
Nominal Output Current
Infini V4 WP 6KW Plus26A
Power Factor
Infini V4 WP 6KW Plus>0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)
Infini V4 WP 6KW Plus95%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage
Infini V4 WP 6KW Plus60 - 80 VAC / 180 VAC
Acceptable Voltage Range
Infini V4 WP 6KW Plus90 - 280 VAC or 170 - 280 VAC
Maximum AC Input Current
Infini V4 WP 6KW Plus40A
Frequency Range
Infini V4 WP 6KW Plus50 Hz/60 Hz (Auto sensing)
PV INPUT (DC)
Maximum DC Voltage
Infini V4 WP 6KW Plus500 VDC
MPPT Voltage Range
Infini V4 WP 6KW Plus120 VDC ~ 450 VDC
Number of MPP Trackers/Max. Input Current
Infini V4 WP 6KW Plus2 / 21A
BATTERY Mode Output (AC)
Nominal Output Voltage
Infini V4 WP 6KW Plus220/230/240 VAC
Output Waveform
Infini V4 WP 6KW PlusPure Sine Wave
Efficiency (DC to AC)
Infini V4 WP 6KW Plus0.93
HYBRID OPERATION
PV INPUT (DC)
Start-up Voltage / Initial Feeding Voltage
Infini V4 WP 6KW Plus80VDC / 150 VDC
MPPT Voltage Range
Infini V4 WP 6KW Plus120 VDC ~ 450 VDC
Number of MPP Trackers/Max. Input Current
Infini V4 WP 6KW Plus2 / 21A
Maximum DC Voltage
Infini V4 WP 6KW Plus500 VDC
GRID OUTPUT (AC)
Nominal Output Current
Infini V4 WP 6KW Plus40A
Nominal Output Voltage
Infini V4 WP 6KW Plus220/230/240 VAC
Output Voltage Range
Infini V4 WP 6KW Plus184 - 264.5 VAC or 195.5 - 253 VAC or 182 - 260 VAC (Selectable)
AC INPUT
AC Start-up Voltage / Auto Restart Voltage
Infini V4 WP 6KW Plus60 - 80 VAC / 180 VAC
Acceptable Voltage Range
Infini V4 WP 6KW Plus90 - 280 VAC or 170 - 280 VAC
Maximum AC Input Current
Infini V4 WP 6KW Plus40A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage
Infini V4 WP 6KW Plus220/230/240 VAC
Efficiency (DC to AC)
Infini V4 WP 6KW Plus93%
BATTERY & CHARGER
Nominal DC Voltage
Infini V4 WP 6KW Plus48 VDC
Maximum Charging Current
Infini V4 WP 6KW Plus135A
Maximum Solar Charging Current
Infini V4 WP 6KW Plus135 A
Maximum AC Charging Current
Infini V4 WP 6KW Plus135 A
GENERAL
PHYSICAL
Dimension, D X W X H (mm)
Infini V4 WP 6KW Plus192 x 414 x 630
Net Weight (kgs)
Infini V4 WP 6KW Plus29
INTERFACE
Parallel Function
Infini V4 WP 6KW PlusYes, 9 units
Communication Port
Infini V4 WP 6KW Plus RS-232/RS485, WIFI(Optional)
ENVIRONMENT
Operating Humidity
Infini V4 WP 6KW Plus0~100% RH (Non-condensing)
Operating Temperature
Infini V4 WP 6KW Plus-10°C to 50°C
PROTECTION & CERTIFICATE
Safety
Infini V4 WP 6KW PlusIEC 62109, IEC 62116, IEC 61727, IEC 61683
