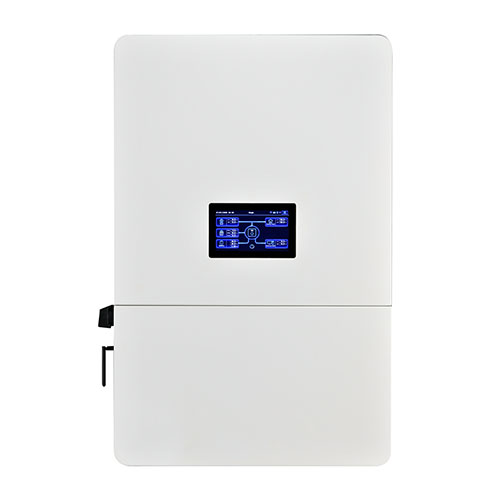

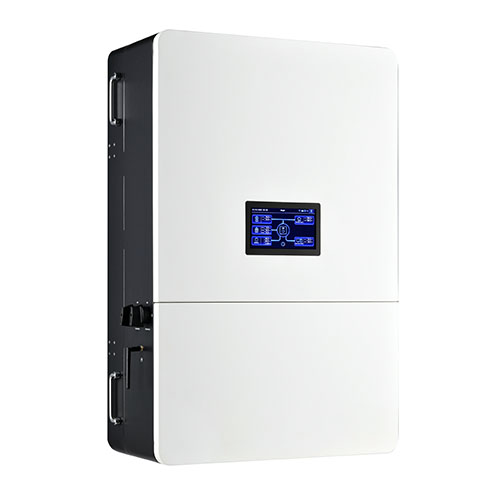

InfiniSolar WP II 30KW/50KW
Hybrid inverter with user-friendly HMI and IP65 design, Dual AC Input
InfiniSolar WP II 30kW/50kW with a new outlook and user-friendly HMI. Its IP65 rating protects against dust and moisture, making it suitable for indoor and outdoor use. The wide battery input voltage ranges from 200V to 1000V, allowing for flexible configurations. Parallel operation of up to four units, each sharing a common battery, enables a total power rating of up to 120kW and 200kW, offering scalability and cost benefits. Smart monitoring with built-in Wi-Fi allows convenient management via an APP. The 50kW model also features a 200A AC pass-through capability, allowing approximately 2.5 times the power output to pass through from the grid, enabling it to handle heavy motor or inductive loads such as water pumps or compressors.
Add to Compare Add to Inquiry
Main Features
  • Connect to a high-voltage battery: Accepts a wide input voltage range of 200~1000VDC from lithium batteries, ensuring greater compatibility with various battery chemistries and configurations.
  • Connect to 48vdc low-voltage battery through a DC-DC Converter: For efficient conversion of high-voltage DC to lower-voltage DC, expanding application possibilities. Upgrade your system with increased flexibility and simplified integration.
  • User-friendly HMI LCD: Simplifies the initial setup, presenting important information prominently on the main screen.
  • Wide Battery Voltage Range with Parallel Capability in Common Battery: Parallel operation max to 4 units with shared common batteries by adding more inverters, enabling a total power rating of up to 120kW and 200kW.
  • Dual AC Input: Two independent input power sources from the utility and generator ensure uninterrupted AC power and incorporate a large charger for fast battery charging, even with limited available time from AC or solar sources.
MODEL
General
PHASE
InfiniSolar WP II 30KW3-phase in/3-phase out
InfiniSolar WP II 50KW3-phase in/3-phase out
Maximum PV Input Power
InfiniSolar WP II 30KW48000 W
InfiniSolar WP II 50KW65000 W
Rated Output Power
InfiniSolar WP II 30KW30000 W
InfiniSolar WP II 50KW50000 W
Maximum Charging Power
InfiniSolar WP II 30KW30000 W
InfiniSolar WP II 50KW50000 W
GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage
InfiniSolar WP II 30KW720 VDC / 1000 VDC
InfiniSolar WP II 50KW720 VDC / 1000 VDC
Start-up Voltage / Initial Feeding Voltage
InfiniSolar WP II 30KW300 VDC / 350 VDC
InfiniSolar WP II 50KW300 VDC / 350 VDC
Number of MPP Trackers/Max. Input Current
InfiniSolar WP II 30KW3 / 36A for each
InfiniSolar WP II 50KW4 / 36A for each
MPP Voltage Range
InfiniSolar WP II 30KW350 VDC ~ 900 VDC
InfiniSolar WP II 50KW350 VDC ~ 900 VDC
Number of Strings Per MPP Tracker
InfiniSolar WP II 30KW2
InfiniSolar WP II 50KW2
GRID OUTPUT (AC)
Nominal Output Voltage
InfiniSolar WP II 30KW230 VAC (P-N) / 400 VAC (P-P)
InfiniSolar WP II 50KW230 VAC (P-N) / 400 VAC (P-P)
Output Voltage Range
InfiniSolar WP II 30KW184 - 265 VAC per phase
InfiniSolar WP II 50KW184 - 265 VAC per phase
Power Factor
InfiniSolar WP II 30KW0.9 lag ~ 0.9 lead
InfiniSolar WP II 50KW0.9 lag ~ 0.9 lead
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)
InfiniSolar WP II 30KW0.97
InfiniSolar WP II 50KW0.97
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage
InfiniSolar WP II 30KW120 - 140 VAC /180 VAC per phase
InfiniSolar WP II 50KW120 - 140 VAC /180 VAC per phase
Acceptable Voltage Range
InfiniSolar WP II 30KW170 - 280 VAC per phase
InfiniSolar WP II 50KW170 - 280 VAC per phase
Maximum AC Input Current
InfiniSolar WP II 30KW50 A
InfiniSolar WP II 50KW83 A
PV INPUT (DC)
Maximum DC Voltage
InfiniSolar WP II 30KW1000 VDC
InfiniSolar WP II 50KW1000 VDC
Number of MPP Trackers/Max. Input Current
InfiniSolar WP II 30KW3 / 36A for each
InfiniSolar WP II 50KW4 / 36A for each
MPP Voltage Range
InfiniSolar WP II 30KW350 VDC ~ 900 VDC
InfiniSolar WP II 50KW350 VDC ~ 900 VDC
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage
InfiniSolar WP II 30KW230 VAC (P-N) / 400 VAC (P-P)
InfiniSolar WP II 50KW230 VAC (P-N) / 400 VAC (P-P)
Output Waveform
InfiniSolar WP II 30KWPure sine wave
InfiniSolar WP II 50KWPure sine wave
HYBRID OPERATION
PV INPUT (DC)
Start-up Voltage / Initial Feeding Voltage
InfiniSolar WP II 30KW320 VDC / 350 VDC
InfiniSolar WP II 50KW320 VDC / 350 VDC
Number of MPP Trackers/Max. Input Current
InfiniSolar WP II 30KW3 / 36A for each
InfiniSolar WP II 50KW4 / 36A for each
MPP Voltage Range
InfiniSolar WP II 30KW350 VDC ~ 900 VDC
InfiniSolar WP II 50KW350 VDC ~ 900 VDC
Maximum DC Voltage
InfiniSolar WP II 30KW1000 VDC
InfiniSolar WP II 50KW1000 VDC
GRID OUTPUT (AC)
Nominal Output Current
InfiniSolar WP II 30KW43.5 A per phase
InfiniSolar WP II 50KW73 A per phase
Nominal Output Voltage
InfiniSolar WP II 30KW230 VAC (P-N) / 400 VAC (P-P)
InfiniSolar WP II 50KW230 VAC (P-N) / 400 VAC (P-P)
Output Voltage Range
InfiniSolar WP II 30KW184 - 265 VAC per phase
InfiniSolar WP II 50KW184 - 265 VAC per phase
AC INPUT
AC Start-up Voltage / Auto Restart Voltage
InfiniSolar WP II 30KW120 - 140 VAC /180 VAC per phase
InfiniSolar WP II 50KW120 - 140 VAC /180 VAC per phase
Acceptable Voltage Range
InfiniSolar WP II 30KW170 - 280 VAC per phase
InfiniSolar WP II 50KW170 - 280 VAC per phase
Maximum AC Input Current
InfiniSolar WP II 30KW50 A
InfiniSolar WP II 50KW83 A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage
InfiniSolar WP II 30KW230 VAC (P-N) / 400 VAC (P-P)
InfiniSolar WP II 50KW230 VAC (P-N) / 400 VAC (P-P)
Efficiency (DC to AC)
InfiniSolar WP II 30KW97%
InfiniSolar WP II 50KW97%
BATTERY & CHARGER
Maximum Charging Current
InfiniSolar WP II 30KW50 A
InfiniSolar WP II 50KW100 A
Battery Voltage Range
InfiniSolar WP II 30KW500 ~ 900 VDC
InfiniSolar WP II 50KW500 ~ 800 VDC
GENERAL
PHYSICAL
Dimension, D X W X H (mm)
InfiniSolar WP II 30KW290 x 580 x 900
InfiniSolar WP II 50KW290 x 580 x 900
Net Weight (kgs)
InfiniSolar WP II 30KW90
InfiniSolar WP II 50KW90
INTERFACE
Communication Port
InfiniSolar WP II 30KWRS-232, USB, DRY CONTACT, RS-485, CAN,Wi-Fi
InfiniSolar WP II 50KWRS-232, USB, DRY CONTACT, RS-485, CAN,Wi-Fi
Intelligent Slot
InfiniSolar WP II 30KWOptional SNMP, Modbus
InfiniSolar WP II 50KWOptional SNMP, Modbus
ENVIRONMENT
Humidity
InfiniSolar WP II 30KW0 ~ 100% RH (Non-condensing)
InfiniSolar WP II 50KW0 ~ 100% RH (Non-condensing)
Operating Temperature
InfiniSolar WP II 30KW-25 to 60°C, > 45°C power derating
InfiniSolar WP II 50KW-25 to 60°C, > 45°C power derating
Altitude
InfiniSolar WP II 30KW0 ~ 1000 m**
InfiniSolar WP II 50KW0 ~ 1000 m**
Brochure Infinisolar WP II
