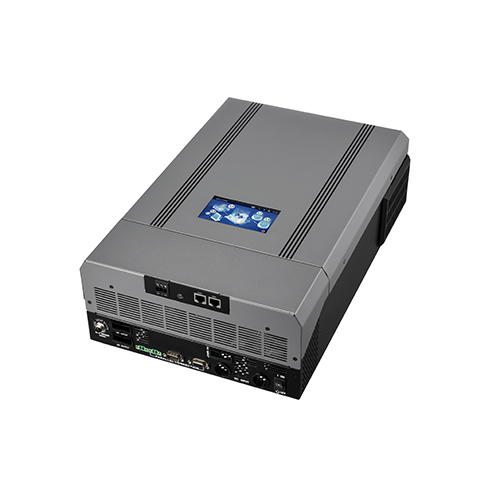

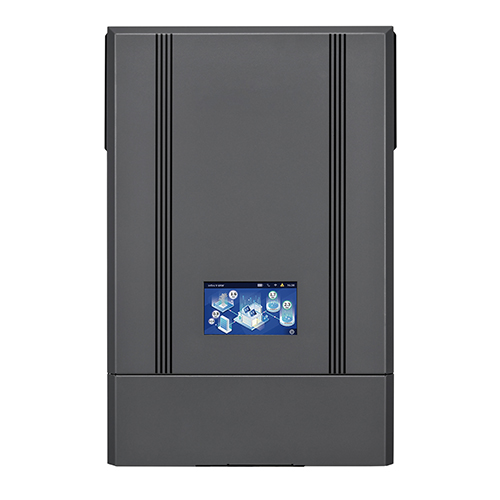

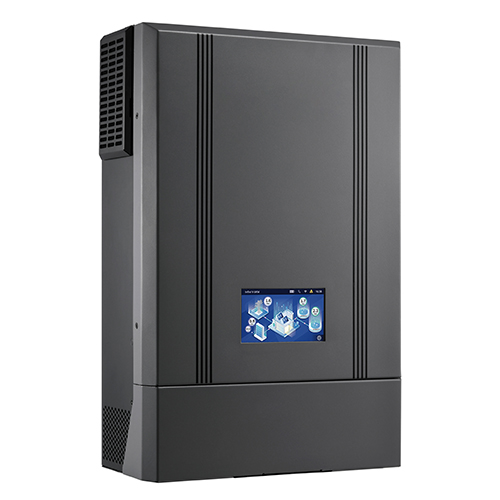

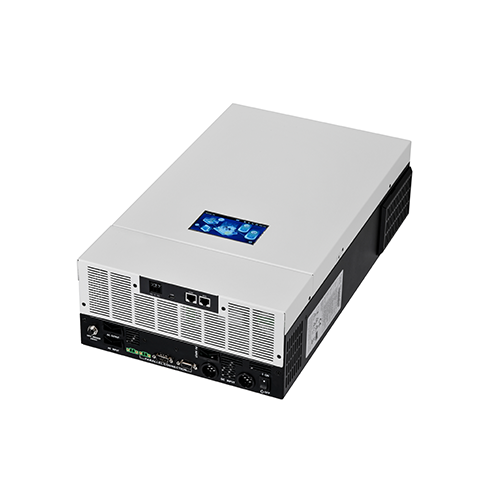

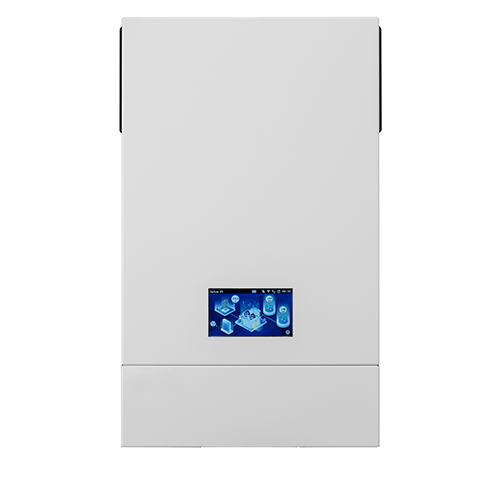

InfiniSolar V5
Hybrid inverter with LCD and dual MPP trackers
InfiniSolar V5 is a high-power hybrid inverter designed for both grid-tied and off-grid applications. Its advanced features, including dual MPP trackers and programmable operation modes, make it suitable for a wide range of solar power systems. The user-friendly interface and remote monitoring capabilities simplify system management and troubleshooting. The ability to prioritize power sources ensures a reliable power supply even during grid outages. Its scalable design, allowing for parallel operation of multiple units, makes it ideal for large-scale installations.
Add to Compare Add to Inquiry
Main Features
  • Increased PV power to 8000W
  • Built-in 2 MPP trackers
  • Dual outputs for smart load management
  • Output power 7000W with PV and Battery
  • Built-in WiFi with an APP for remote monitoring
  • Programmable supply priority for PV, Battery, or Grid
  • User-adjustable charging current and voltage
  • Programmable multiple operation modes: Grid-tie, off-grid, and grid-tie with backup
  • Reserved communication port for BMS
  • Parallel operation up to 9 units
MODEL
General
Phase
InfiniSolar V5 6.2KW1-phase in / 1-phase out
Maximum PV Input Power
InfiniSolar V5 6.2KW8000 W
Rated Output Power
InfiniSolar V5 6.2KW7000W with PV & battery, 6200W with battery only
GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage
InfiniSolar V5 6.2KW360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage
InfiniSolar V5 6.2KW120 VDC / 150 VDC
MPPT Voltage Range
InfiniSolar V5 6.2KW120 VDC~430 VDC
Number of MPP Trackers/Max. Input Current
InfiniSolar V5 6.2KW2 / 18 A+18A
GRID OUTPUT (AC)
Nominal Output Voltage
InfiniSolar V5 6.2KW220/230/240 VAC
Output Voltage Range
InfiniSolar V5 6.2KW184-264.5 VAC or 195.5-253 VAC (Selectable)
Nominal Output Current
InfiniSolar V5 6.2KW30.44A
Power Factor
InfiniSolar V5 6.2KW> 0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)
InfiniSolar V5 6.2KW96%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage
InfiniSolar V5 6.2KW120-140 VAC / 180 VAC
Acceptable Voltage Range
InfiniSolar V5 6.2KW90-280 VAC or 170-280 VAC
Maximum AC Input Current
InfiniSolar V5 6.2KW40 A
PV INPUT (DC)
Maximum DC Voltage
InfiniSolar V5 6.2KW500 A
MPPT Voltage Range
InfiniSolar V5 6.2KW120 VDC~430 VDC
Number of MPP Trackers/Max. Input Current
InfiniSolar V5 6.2KW2 / 18 A+18A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage
InfiniSolar V5 6.2KW220/230/240 VAC
Output Waveform
InfiniSolar V5 6.2KWPure Sine Wave
Efficiency (DC to AC)
InfiniSolar V5 6.2KW0.93
HYBRID OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage
InfiniSolar V5 6.2KW360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage
InfiniSolar V5 6.2KW120 VDC / 150 VDC
MPPT Voltage Range
InfiniSolar V5 6.2KW120 VDC~430 VDC
Number of MPP Trackers/Max. Input Current
InfiniSolar V5 6.2KW2 / 18 A+18A
GRID OUTPUT (AC)
Nominal Output Current
InfiniSolar V5 6.2KW30.44A
Nominal Output Voltage
InfiniSolar V5 6.2KW220/230/240 VAC
Output Voltage Range
InfiniSolar V5 6.2KW184-264.5 VAC or 195.5-253 VAC (Selectable)
AC INPUT
AC Start-up Voltage / Auto Restart Voltage
InfiniSolar V5 6.2KW120-140 VAC / 180 VAC
Acceptable Voltage Range
InfiniSolar V5 6.2KW90-280 VAC or 170-280 VAC
Maximum AC Input Current
InfiniSolar V5 6.2KW40A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage
InfiniSolar V5 6.2KW220/230/240 VAC
Efficiency (DC to AC)
InfiniSolar V5 6.2KW0.93
BATTERY & CHARGER
Nominal DC Voltage
InfiniSolar V5 6.2KW48 VDC
Maximum Charging Current
InfiniSolar V5 6.2KW120 A
Maximum Solar Charging Current
InfiniSolar V5 6.2KW120 A
Maximum AC Charging Current
InfiniSolar V5 6.2KW120 A
Nominal Output Current
InfiniSolar V5 6.2KW27A
GENERAL
PHYSICAL
Dimension, D X W X H (mm)
InfiniSolar V5 6.2KW140 x 295 x 468
Net Weight (kgs)
InfiniSolar V5 6.2KW13.5

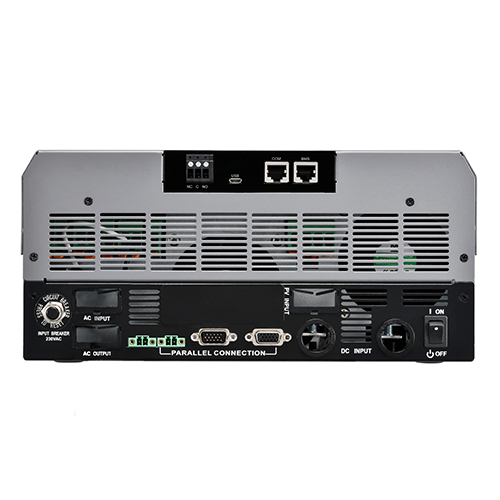

INTERFACE
Communication Port
InfiniSolar V5 6.2KWUSB/RS232/RS485/Wifi/Dry-contact
Parallel Function
InfiniSolar V5 6.2KWYes, 9 units
ENVIRONMENT
Operating Humidity
InfiniSolar V5 6.2KW0~90% RH (Non-condensing)
Operating Temperature
InfiniSolar V5 6.2KW -10~50°C
