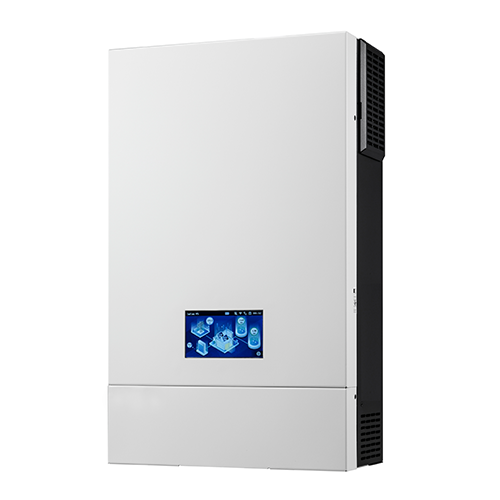

InfiniSolar V 4 - 3.6KW/5.6KW/6KW
Customizable status LED ring with RGB lights
InfiniSolar V 4 is an upgraded version of the third generation of our InfiniSolar V. Equipped with a 4.3-inch color LCD, touchable button, and a customizable status LED ring with RGB lights. The high PV voltage range can be accepted, which will facilitate PV system installation. Besides, battery independency feature will keep inverter running no matter battery is connected or not. We also offer parallel operation function up to 9 units for 3.6KW, and 5.6KW. It offers high flexibility for future power expansion.
Main Features
- Customizable status LED ring with RGB lights
- Touchable button with 4.3 colored LCD
- Supports USB On-the-Go function
- Data log events stored in the inverter
- Self-consumption and Feed-in to the grid
- Programmable supply priority for PV, Battery or Grid
- User-adjustable charging current and voltage
- Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
- Built-in Wi-Fi for mobile monitoring (Android/iOS App available)
- Reserved communication port for BMS
- Parallel operation up to 9 units
| MODEL | InfiniSolar V 4 - 3.6KW | InfiniSolar V 4 - 5.6KW | InfiniSolar V 4 - 6KW | |
| Phase | 1-phase in/1-phase out | 1-phase in/1-phase out | 1-phase in/1-phase out | |
| Maximum PV Input Power | 5000 W | 6000 W | 6000 W | |
| Rated Output Power | 3600 W | 5600 W | 6000 W | |
| Maximum Charging Power | 5000 W | 6000 W | 6000 W | |
| GRID-TIE OPERATION | ||||
| PV INPUT (DC) | ||||
| Nominal DC Voltage / Maximum DC Voltage | 360 VDC / 500 VDC | 360 VDC / 450 VDC | 360 VDC / 500 VDC | |
| Start-up Voltage / Initial Feeding Voltage | 110 VDC / 120 VDC | 110 VDC / 120 VDC | 120 VDC / 150 VDC | |
| MPPT Voltage Range | 120 VDC~430 VDC | 120 VDC~430 VDC | 120 VDC~430 VDC | |
| Number of MPP Trackers/Max. Input Current | 1/1x18A | 1/1x27A | 1/1x27A | |
| GRID OUTPUT (AC) | ||||
| Nominal Output Voltage | 220/230/240 VAC | 220/230/240 VAC | 220/230/240 VAC | |
| Output Voltage Range | 184-264.5 VAC or 195.5-253 VAC (Selectable) | 184-264.5 VAC or 195.5-253 VAC (Selectable) | 184-264.5 VAC or 195.5-253 VAC (Selectable) | |
| Nominal Output Current | 15.6A | 24.3A | 26.1A | |
| Power Factor | > 0.9 | > 0.9 | > 0.9 | |
| EFFICIENCY | ||||
| Maximum Conversion Efficiency (DC/AC) | 96% | 96% | 95% | |
| OFF-GRID OPERATION | ||||
| AC INPUT | ||||
| AC Start-up Voltage / Auto Restart Voltage | 120-140 VAC / 180 VAC | 120-140 VAC / 180 VAC | 120-140 VAC / 180 VAC | |
| Acceptable Voltage Range | 90-280 VAC or 170-280 VAC | 90-280 VAC or 170-280 VAC | 90-280 VAC or 170-280 VAC | |
| Maximum AC Input Current | 40 A | 40 A | 40 A | |
| PV INPUT (DC) | ||||
| Maximum DC Voltage | 500 VDC | 450 VDC | 500 VDC | |
| MPPT Voltage Range | 120 VDC~430 VDC | 120 VDC~430 VDC | 120 VDC~430 VDC | |
| Number of MPP Trackers/Max. Input Current | 1/1x18A | 1/1x27A | 1/1x27A | |
| BATTERY MODE OUTPUT (AC) | ||||
| Nominal Output Voltage | 220/230/240 VAC | 220/230/240 VAC | 220/230/240 VAC | |
| Output Waveform | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | |
| HYBRID OPERATION | ||||
| PV INPUT (DC) | ||||
| Nominal DC Voltage / Maximum DC Voltage | 360 VDC / 500 VDC | 360 VDC / 450 VDC | 360 VDC / 500 VDC | |
| Start-up Voltage / Initial Feeding Voltage | 110 VDC / 120 VDC | 110 VDC / 120 VDC | 110 VDC / 150 VDC | |
| MPPT Voltage Range | 120 VDC~430 VDC | 120 VDC~430 VDC | 120 VDC~430 VDC | |
| Number of MPP Trackers/Max. Input Current | 1/1x18A | 1/1x27A | 1/1x27A | |
| GRID OUTPUT (AC) | ||||
| Nominal Output Current | 15.6A | 24.3A | 26.1A | |
| Nominal Output Voltage | 220/230/240 VAC | 220/230/240 VAC | 220/230/240 VAC | |
| Output Voltage Range | 184-264.5 VAC or 195.5-253 VAC (Selectable) | 184-264.5 VAC or 195.5-253 VAC (Selectable) | 184-264.5 VAC or 195.5-253 VAC (Selectable) | |
| AC INPUT | ||||
| AC Start-up Voltage / Auto Restart Voltage | 120-140 VAC / 180 VAC | 120-140 VAC / 180 VAC | 120-140 VAC / 180 VAC | |
| Acceptable Voltage Range | 90-280 VAC or 170-280 VAC | 90-280 VAC or 170-280 VAC | 90-280 VAC or 170-280 VAC | |
| Maximum AC Input Current | 40A | 40A | 40A | |
| BATTERY MODE OUTPUT (AC) | ||||
| Nominal Output Voltage | 220/230/240 VAC | 220/230/240 VAC | 220/230/240 VAC | |
| Efficiency (DC to AC) | 0.93 | 0.93 | 0.93 | |
| BATTERY & CHARGER | ||||
| Nominal DC Voltage | 48 VDC | 48 VDC | 48 VDC | |
| Maximum Charging Current | 100 A | 120 A | 120 A | |
| Maximum Solar Charging Current | 100 A | 120 A | 120 A | |
| Maximum AC Charging Current | 100 A | 120 A | 120 A | |
| GENERAL | ||||
| PHYSICAL | ||||
| Dimension, D X W X H (mm) | 140 x 295 x 468 | 140 x 295 x 468 | 140 x 295 x 468 | |
| Net Weight (kgs) | 11 | 12 | 12 | |
| INTERFACE | ||||
| Communication Port | USB/RS232/RS485/WiFi/Dry contact | USB/RS232/RS485/WiFi/Dry contact | USB/RS232/RS485/WiFi/Dry contact | |
| Parallel Function | Yes, 9 units | Yes, 9 units | Yes, 9 units | |
| ENVIRONMENT | ||||
| Operating Humidity | 0~90% RH (Non-condensing) | 0~90% RH (Non-condensing) | 0~90% RH (Non-condensing) | |
| Operating Temperature | -10~50°C | -10~50°C | -10~50°C | |
MODEL
General
Phase
| InfiniSolar V 4 - 3.6KW | 1-phase in/1-phase out |
|---|---|
| InfiniSolar V 4 - 5.6KW | 1-phase in/1-phase out |
| InfiniSolar V 4 - 6KW | 1-phase in/1-phase out |
Maximum PV Input Power
| InfiniSolar V 4 - 3.6KW | 5000 W |
|---|---|
| InfiniSolar V 4 - 5.6KW | 6000 W |
| InfiniSolar V 4 - 6KW | 6000 W |
Rated Output Power
| InfiniSolar V 4 - 3.6KW | 3600 W |
|---|---|
| InfiniSolar V 4 - 5.6KW | 5600 W |
| InfiniSolar V 4 - 6KW | 6000 W |
Maximum Charging Power
| InfiniSolar V 4 - 3.6KW | 5000 W |
|---|---|
| InfiniSolar V 4 - 5.6KW | 6000 W |
| InfiniSolar V 4 - 6KW | 6000 W |
GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage
| InfiniSolar V 4 - 3.6KW | 360 VDC / 500 VDC |
|---|---|
| InfiniSolar V 4 - 5.6KW | 360 VDC / 450 VDC |
| InfiniSolar V 4 - 6KW | 360 VDC / 500 VDC |
Start-up Voltage / Initial Feeding Voltage
| InfiniSolar V 4 - 3.6KW | 110 VDC / 120 VDC |
|---|---|
| InfiniSolar V 4 - 5.6KW | 110 VDC / 120 VDC |
| InfiniSolar V 4 - 6KW | 120 VDC / 150 VDC |
MPPT Voltage Range
| InfiniSolar V 4 - 3.6KW | 120 VDC~430 VDC |
|---|---|
| InfiniSolar V 4 - 5.6KW | 120 VDC~430 VDC |
| InfiniSolar V 4 - 6KW | 120 VDC~430 VDC |
Number of MPP Trackers/Max. Input Current
| InfiniSolar V 4 - 3.6KW | 1/1x18A |
|---|---|
| InfiniSolar V 4 - 5.6KW | 1/1x27A |
| InfiniSolar V 4 - 6KW | 1/1x27A |
GRID OUTPUT (AC)
Nominal Output Voltage
| InfiniSolar V 4 - 3.6KW | 220/230/240 VAC |
|---|---|
| InfiniSolar V 4 - 5.6KW | 220/230/240 VAC |
| InfiniSolar V 4 - 6KW | 220/230/240 VAC |
Output Voltage Range
| InfiniSolar V 4 - 3.6KW | 184-264.5 VAC or 195.5-253 VAC (Selectable) |
|---|---|
| InfiniSolar V 4 - 5.6KW | 184-264.5 VAC or 195.5-253 VAC (Selectable) |
| InfiniSolar V 4 - 6KW | 184-264.5 VAC or 195.5-253 VAC (Selectable) |
Nominal Output Current
| InfiniSolar V 4 - 3.6KW | 15.6A |
|---|---|
| InfiniSolar V 4 - 5.6KW | 24.3A |
| InfiniSolar V 4 - 6KW | 26.1A |
Power Factor
| InfiniSolar V 4 - 3.6KW | > 0.9 |
|---|---|
| InfiniSolar V 4 - 5.6KW | > 0.9 |
| InfiniSolar V 4 - 6KW | > 0.9 |
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)
| InfiniSolar V 4 - 3.6KW | 96% |
|---|---|
| InfiniSolar V 4 - 5.6KW | 96% |
| InfiniSolar V 4 - 6KW | 95% |
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage
| InfiniSolar V 4 - 3.6KW | 120-140 VAC / 180 VAC |
|---|---|
| InfiniSolar V 4 - 5.6KW | 120-140 VAC / 180 VAC |
| InfiniSolar V 4 - 6KW | 120-140 VAC / 180 VAC |
Acceptable Voltage Range
| InfiniSolar V 4 - 3.6KW | 90-280 VAC or 170-280 VAC |
|---|---|
| InfiniSolar V 4 - 5.6KW | 90-280 VAC or 170-280 VAC |
| InfiniSolar V 4 - 6KW | 90-280 VAC or 170-280 VAC |
Maximum AC Input Current
| InfiniSolar V 4 - 3.6KW | 40 A |
|---|---|
| InfiniSolar V 4 - 5.6KW | 40 A |
| InfiniSolar V 4 - 6KW | 40 A |
PV INPUT (DC)
Maximum DC Voltage
| InfiniSolar V 4 - 3.6KW | 500 VDC |
|---|---|
| InfiniSolar V 4 - 5.6KW | 450 VDC |
| InfiniSolar V 4 - 6KW | 500 VDC |
MPPT Voltage Range
| InfiniSolar V 4 - 3.6KW | 120 VDC~430 VDC |
|---|---|
| InfiniSolar V 4 - 5.6KW | 120 VDC~430 VDC |
| InfiniSolar V 4 - 6KW | 120 VDC~430 VDC |
Number of MPP Trackers/Max. Input Current
| InfiniSolar V 4 - 3.6KW | 1/1x18A |
|---|---|
| InfiniSolar V 4 - 5.6KW | 1/1x27A |
| InfiniSolar V 4 - 6KW | 1/1x27A |
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage
| InfiniSolar V 4 - 3.6KW | 220/230/240 VAC |
|---|---|
| InfiniSolar V 4 - 5.6KW | 220/230/240 VAC |
| InfiniSolar V 4 - 6KW | 220/230/240 VAC |
Output Waveform
| InfiniSolar V 4 - 3.6KW | Pure Sine Wave |
|---|---|
| InfiniSolar V 4 - 5.6KW | Pure Sine Wave |
| InfiniSolar V 4 - 6KW | Pure Sine Wave |
HYBRID OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage
| InfiniSolar V 4 - 3.6KW | 360 VDC / 500 VDC |
|---|---|
| InfiniSolar V 4 - 5.6KW | 360 VDC / 450 VDC |
| InfiniSolar V 4 - 6KW | 360 VDC / 500 VDC |
Start-up Voltage / Initial Feeding Voltage
| InfiniSolar V 4 - 3.6KW | 110 VDC / 120 VDC |
|---|---|
| InfiniSolar V 4 - 5.6KW | 110 VDC / 120 VDC |
| InfiniSolar V 4 - 6KW | 110 VDC / 150 VDC |
MPPT Voltage Range
| InfiniSolar V 4 - 3.6KW | 120 VDC~430 VDC |
|---|---|
| InfiniSolar V 4 - 5.6KW | 120 VDC~430 VDC |
| InfiniSolar V 4 - 6KW | 120 VDC~430 VDC |
Number of MPP Trackers/Max. Input Current
| InfiniSolar V 4 - 3.6KW | 1/1x18A |
|---|---|
| InfiniSolar V 4 - 5.6KW | 1/1x27A |
| InfiniSolar V 4 - 6KW | 1/1x27A |
GRID OUTPUT (AC)
Nominal Output Current
| InfiniSolar V 4 - 3.6KW | 15.6A |
|---|---|
| InfiniSolar V 4 - 5.6KW | 24.3A |
| InfiniSolar V 4 - 6KW | 26.1A |
Nominal Output Voltage
| InfiniSolar V 4 - 3.6KW | 220/230/240 VAC |
|---|---|
| InfiniSolar V 4 - 5.6KW | 220/230/240 VAC |
| InfiniSolar V 4 - 6KW | 220/230/240 VAC |
Output Voltage Range
| InfiniSolar V 4 - 3.6KW | 184-264.5 VAC or 195.5-253 VAC (Selectable) |
|---|---|
| InfiniSolar V 4 - 5.6KW | 184-264.5 VAC or 195.5-253 VAC (Selectable) |
| InfiniSolar V 4 - 6KW | 184-264.5 VAC or 195.5-253 VAC (Selectable) |
AC INPUT
AC Start-up Voltage / Auto Restart Voltage
| InfiniSolar V 4 - 3.6KW | 120-140 VAC / 180 VAC |
|---|---|
| InfiniSolar V 4 - 5.6KW | 120-140 VAC / 180 VAC |
| InfiniSolar V 4 - 6KW | 120-140 VAC / 180 VAC |
Acceptable Voltage Range
| InfiniSolar V 4 - 3.6KW | 90-280 VAC or 170-280 VAC |
|---|---|
| InfiniSolar V 4 - 5.6KW | 90-280 VAC or 170-280 VAC |
| InfiniSolar V 4 - 6KW | 90-280 VAC or 170-280 VAC |
Maximum AC Input Current
| InfiniSolar V 4 - 3.6KW | 40A |
|---|---|
| InfiniSolar V 4 - 5.6KW | 40A |
| InfiniSolar V 4 - 6KW | 40A |
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage
| InfiniSolar V 4 - 3.6KW | 220/230/240 VAC |
|---|---|
| InfiniSolar V 4 - 5.6KW | 220/230/240 VAC |
| InfiniSolar V 4 - 6KW | 220/230/240 VAC |
Efficiency (DC to AC)
| InfiniSolar V 4 - 3.6KW | 0.93 |
|---|---|
| InfiniSolar V 4 - 5.6KW | 0.93 |
| InfiniSolar V 4 - 6KW | 0.93 |
BATTERY & CHARGER
Nominal DC Voltage
| InfiniSolar V 4 - 3.6KW | 48 VDC |
|---|---|
| InfiniSolar V 4 - 5.6KW | 48 VDC |
| InfiniSolar V 4 - 6KW | 48 VDC |
Maximum Charging Current
| InfiniSolar V 4 - 3.6KW | 100 A |
|---|---|
| InfiniSolar V 4 - 5.6KW | 120 A |
| InfiniSolar V 4 - 6KW | 120 A |
Maximum Solar Charging Current
| InfiniSolar V 4 - 3.6KW | 100 A |
|---|---|
| InfiniSolar V 4 - 5.6KW | 120 A |
| InfiniSolar V 4 - 6KW | 120 A |
Maximum AC Charging Current
| InfiniSolar V 4 - 3.6KW | 100 A |
|---|---|
| InfiniSolar V 4 - 5.6KW | 120 A |
| InfiniSolar V 4 - 6KW | 120 A |
GENERAL
PHYSICAL
Dimension, D X W X H (mm)
| InfiniSolar V 4 - 3.6KW | 140 x 295 x 468 |
|---|---|
| InfiniSolar V 4 - 5.6KW | 140 x 295 x 468 |
| InfiniSolar V 4 - 6KW | 140 x 295 x 468 |
Net Weight (kgs)
| InfiniSolar V 4 - 3.6KW | 11 |
|---|---|
| InfiniSolar V 4 - 5.6KW | 12 |
| InfiniSolar V 4 - 6KW | 12 |
INTERFACE
Communication Port
| InfiniSolar V 4 - 3.6KW | USB/RS232/RS485/WiFi/Dry contact |
|---|---|
| InfiniSolar V 4 - 5.6KW | USB/RS232/RS485/WiFi/Dry contact |
| InfiniSolar V 4 - 6KW | USB/RS232/RS485/WiFi/Dry contact |
Parallel Function
| InfiniSolar V 4 - 3.6KW | Yes, 9 units |
|---|---|
| InfiniSolar V 4 - 5.6KW | Yes, 9 units |
| InfiniSolar V 4 - 6KW | Yes, 9 units |
ENVIRONMENT
Operating Humidity
| InfiniSolar V 4 - 3.6KW | 0~90% RH (Non-condensing) |
|---|---|
| InfiniSolar V 4 - 5.6KW | 0~90% RH (Non-condensing) |
| InfiniSolar V 4 - 6KW | 0~90% RH (Non-condensing) |
Operating Temperature
| InfiniSolar V 4 - 3.6KW | -10~50°C |
|---|---|
| InfiniSolar V 4 - 5.6KW | -10~50°C |
| InfiniSolar V 4 - 6KW | -10~50°C |
 |
Brochure | InfiniSolar V IV Brochure |
|
Manual | InfiniSolar V IV Manual |
On-Grid with Energy-Storage Inverter InfiniSolar V 4 - 3.6KW/5.6KW/6KW Customizable status LED ring with RGB lights
Related Products
InfiniSolar WP Elite
Hybrid inverter features IP66 rated enclosure
InfiniSolar V5
Hybrid inverter with LCD and dual MPP trackers
InfiniSolar V4 TWIN
Customizable status LED ring with RGB lights
InfiniSolar E 5.5KW
2 enhanced MPPT trackers
InfiniSolar WP II 30KW/50KW
Hybrid inverter with user-friendly HMI and IP65 design, Dual AC Input
InfiniSolar WP LV Premium 12KW
Built-in 300A DC breaker and 60A AC breaker
InfiniSolar V 1K-5K
Self-consumption and feed-in to the grid
InfiniSolar WP TWIN HMI 12kw/15kw
Hybrid inverter features IP66 rated enclosure
We have received your membership application and will reply as soon as within 24 hours, before that, please browse our website, thank you.
