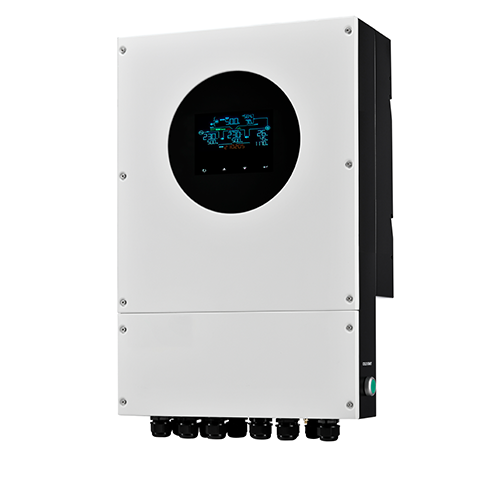

InfiniSolar TX 3P/3P 20KW
Built-in isolation transformer
Built-in with isolation transformer, InfiniSolar TX purifies input power to connected devices. It can be operated in three different operation modes, on-grid, off-grid and grid-tie with backup, depending on power requirements. InfiniSolar TX is a flexible and smart hybrid inverter which utilizes solar power, AC utility, and battery power source to supply continuous power. Besides, it can set power usage priority as self-consumption for maximizing your benefit.
Add to Compare Add to Inquiry
Main Features
  • Pure sine wave output
  • Self-consumption and Feed-in to the grid
  • Programmable supply priority for PV, Battery or Grid
  • True galvanic isolation transformer design
  • User-adjustable charging current
  • Programmable multiple operation modes: Grid-tie, off-grid and gridtie with backup
  • Built-in timer for various mode of on/off operation
  • Multiple communication for USB, RS-232, Modbus and SNMP
  • Monitoring software for real-time status display and control
MODEL
General
Maximum PV Input Power
InfiniSolar TX-20KW30KW
Rated Output Power
InfiniSolar TX-20KW20KW
Maximum Charging Power
InfiniSolar TX-20KW20KW
GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage
InfiniSolar TX-20KW720 VDC / 950 VDC
Start-up Voltage / Initial Feeding Voltage
InfiniSolar TX-20KW500 VDC / 550 VDC
MPPT Voltage Range
InfiniSolar TX-20KW550 VDC ~ 900 VDC
Number of MPP Trackers/Max. Input Current
InfiniSolar TX-20KW1/48 Amp
Full power MPP Voltage Range
InfiniSolar TX-20KW625 VDC ~ 900 VDC
GRID OUTPUT (AC)
Output Frequency Range
InfiniSolar TX-20KW47.5 ~ 51.5 Hz or 59.3 ~ 60.5 Hz
Nominal Output Voltage
InfiniSolar TX-20KW230 VAC (P-N) / 400 VAC (P-P)
Output Voltage Range
InfiniSolar TX-20KW184 - 265 VAC per phase
Nominal Output Current
InfiniSolar TX-20KW29 A per phase
Power Factor
InfiniSolar TX-20KW> 0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)
InfiniSolar TX-20KW91%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage
InfiniSolar TX-20KW120-140 VAC per phase / 180 VAC per phase
Acceptable Input Voltage Range
InfiniSolar TX-20KW170 - 280 VAC per phase
Maximum AC Input Current
InfiniSolar TX-20KW40 A per phase
PV INPUT (DC)
Maximum DC Power / Maximum DC Voltage
InfiniSolar TX-20KW30KW / 950 vdc
MPPT Voltage Range
InfiniSolar TX-20KW550 VDC ~ 900 VDC
Number of MPP Trackers/Max. Input Current
InfiniSolar TX-20KW1/48 Amp
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage
InfiniSolar TX-20KW230 VAC (P-N) / 400 VAC (P-P)
Output Waveform
InfiniSolar TX-20KWPure sine wave
Efficiency (DC to AC)
InfiniSolar TX-20KW>91%
HYBRID OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage
InfiniSolar TX-20KW720 VDC / 950 VDC
Start-up Voltage / Initial Feeding Voltage
InfiniSolar TX-20KW500 VDC / 550 VDC
MPPT Voltage Range
InfiniSolar TX-20KW550 VDC ~ 900 VDC
Number of MPP Trackers/Max. Input Current
InfiniSolar TX-20KW1/48 Amp
GRID OUTPUT (AC)
Nominal Output Current
InfiniSolar TX-20KW29 A per phase
Nominal Output Voltage
InfiniSolar TX-20KW230 VAC (P-N) / 400 VAC (P-P)
Output Frequency Range
InfiniSolar TX-20KW47.5 ~ 51.5 Hz or 59.3 ~ 60.5 Hz
Output Voltage Range
InfiniSolar TX-20KW184 - 265 VAC per phase
Power Factor
InfiniSolar TX-20KW> 0.99
AC INPUT
AC Start-up Voltage / Auto Restart Voltage
InfiniSolar TX-20KW120-140 VAC per phase / 180 VAC per phase
Acceptable Input Voltage Range
InfiniSolar TX-20KW170 - 280 VAC per phase
Maximum AC Input Current
InfiniSolar TX-20KW40.0 A per phase
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage
InfiniSolar TX-20KW230 VAC (P-N) / 400 VAC (P-P)
Efficiency (DC to AC)
InfiniSolar TX-20KW>91%
BATTERY & CHARGER
Nominal Battery Voltage
InfiniSolar TX-20KW384 VDC
Maximum Charging Current
InfiniSolar TX-20KW50A
GENERAL
PHYSICAL
Dimension, D X W X H (mm)
InfiniSolar TX-20KW559 x 320 x 909
Net Weight (kgs)
InfiniSolar TX-20KW120
INTERFACE
Communication Port
InfiniSolar TX-20KWRS-232/USB
Intelligent Slot
InfiniSolar TX-20KWOptional SNMP, GRPS, WIFI, Modbus cards available
ENVIRONMENT
Humidity
InfiniSolar TX-20KW0 ~ 90% RH (No condensing)
Operating Temperature
InfiniSolar TX-20KW-10 to 55°C
Altitude
InfiniSolar TX-20KW0 ~ 1000 m**
Brochure InfiniSolar TX_DS
Manual InfiniSolar TX-20KW_manual
