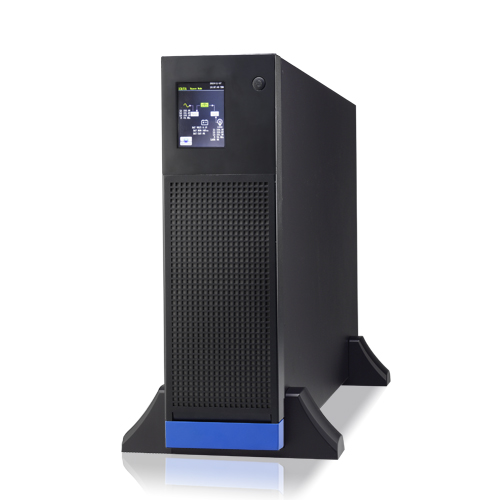

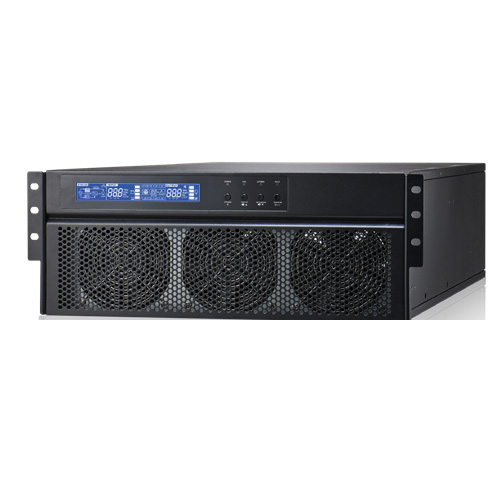

Galleon III 3P/3P RT 30K-60K

PF1 high-frequency Online UPS

The Galleon III 3P/3P RT 30K-60K is a high-frequency UPS featuring an excellent output power factor of 1.0, delivering high performance and efficiency for essential applications. It offers a cost-effective solution for your mission-critical loads and can be connected in parallel with up to three units. Additionally, its adjustable current charger enhances the flexibility of your power setup.

Add to Compare Add to Inquiry

Main Features

True double-conversion online UPS
LCD screen with automatic rotation based on rack position (available only for 30KL-40KL models)
DSP technology ensures high performance
Output power factor of 1
Active power factor correction across all phases
Frequency converter mode supporting 50Hz/60Hz
Energy-saving ECO mode operation
Emergency power off (EPO) function
Compatible with generators
Supports dual AC input sources
Adjustable number of batteries
Parallel operation capability using a shared battery

MODEL		GALLEON III 3P/3P 30KL	GALLEON III 3P/3P 40KL	GALLEON III 3P/3P 60KL
CAPACITY		30 KVA / 30 KW	40KVA/40KW	60KVA/60KW
PHASE		3-phase in / 3-phase out	3-phase in / 3-phase out	3-phase in / 3-phase out
PARALLEL CAPABILITY		4	4	4
INPUT
Voltage Range		190-520 VAC @ 50% load; 305-478 VAC @ 100% load	190-520 VAC @ 50% load; 305-478 VAC @ 100% load	190-520 VAC @ 50% load; 305-478 VAC @ 100% load
Nominal Voltage		3x 380/400/415 VAC (3Ph+N)	3x 380/400/415 VAC (3Ph+N)	3x 380/400/415 VAC (3Ph+N)
Frequency Range		46~54 Hz or 56~64Hz	46~54 Hz or 56~64Hz	46~54 Hz or 56~64Hz
Power Factor		≧ 0.99 @ 100% load	≧ 0.99 @ 100% load	≧ 0.99 @ 100% load
OUTPUT
Output Voltage		3x 380/400/415 VAC (3Ph+N)	3x 380/400/415 VAC (3Ph+N)	3x 380/400/415 VAC (3Ph+N)
AC Voltage Regulation (Batt. Mode)		± 1%	± 1%	± 1%
Frequency Range (Batt. Mode)		50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz	50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz	50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Transfer Time	AC Mode to Battery Mode	zero	zero	zero
Transfer Time	Inverter to Bypass	zero	zero	zero
Waveform (Batt. Mode)		Pure Sine Wave	Pure Sine Wave	Pure Sine Wave
Current Crest Ratio		3:1 (max.)	3:1 (max.)	3:1 (max.)
Harmonic Distortion		≦ 2 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load)	≦ 2 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load)	≦ 2 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load)
Frequency Range (Synchronized Range)		46~54Hz or 56~64Hz	46~54Hz or 56~64Hz	46~54Hz or 56~64Hz
Overload	AC Mode	100-110% for 60 min, 111-125% for 10 min, 126%~150% for 1 min; >150% immediately shutdown	100-110% for 60 min, 111-125% for 10 min, 126%~150% for 1 min; >150% immediately shutdown	100-110% for 60 min, 111-125% for 10 min, 126%~150% for 1 min; >150% immediately shutdown
Overload	Battery Mode	100-110% for 60 min, 111-125% for 10 min, 126%~150% for 1 min; >150% immediately shutdown	100-110% for 60 min, 111-125% for 10 min, 126%~150% for 1 min; >150% immediately shutdown	100-110% for 60 min, 111-125% for 10 min, 126%~150% for 1 min; >150% immediately shutdown
EFFICIENCY
Battery Mode		95.5%	95.5%	95.5%
ECO Mode		98.5%	98.5%	98.5%
AC Mode		94.5%	94.5%	94.5%
BATTERY
Battery Type		Depending on the applications	Depending on the applications	Depending on the applications
Charging Voltage		+/-13.65V*N (N=16~20)	+/-13.65V*N (N=16~20)	+/-13.65V*N (N=16~20)
Numbers		±16 ~±20 (Adjustable)	±16 ~±20 (Adjustable)	±16 ~±20 (Adjustable)
Charging Current (max.)		1A ~ 12A (Adjustable)	1A ~ 12A (Adjustable)	1A ~ 18A (Adjustable)
ENVIRONMENT
Operating Temperature		0~40°C	0~40°C	0~40°C
Operating Humidity		<95% and non-condersing	<95% and non-condersing	<95% and non-condersing
Noise Level		Less than 65dB @ 1 Meter	Less than 70dB @ 1 Meter	Less than 70dB @ 1 Meter
PHYSICAL
Dimension, D X W X H (mm)		680 x 438 x 133 [3U]	680 x 438 x 133 [3U]	797x438x176 [4U]
Net Weight (kgs)		32	34	45
MANAGEMENT
Optional SNMP		Power management from SNMP manager and web browser	Power management from SNMP manager and web browser	Power management from SNMP manager and web browser
Smart RS-232 / USB		Supports Windows® family, Linux and MAC	Supports Windows® family, Linux and MAC	Supports Windows® family, Linux and MAC

General

CAPACITY

GALLEON III 3P/3P 30KL	30 KVA / 30 KW
GALLEON III 3P/3P 40KL	40KVA/40KW
GALLEON III 3P/3P 60KL	60KVA/60KW

PHASE

GALLEON III 3P/3P 30KL	3-phase in / 3-phase out
GALLEON III 3P/3P 40KL	3-phase in / 3-phase out
GALLEON III 3P/3P 60KL	3-phase in / 3-phase out

PARALLEL CAPABILITY

GALLEON III 3P/3P 30KL	4
GALLEON III 3P/3P 40KL	4
GALLEON III 3P/3P 60KL	4

INPUT

Voltage Range

GALLEON III 3P/3P 30KL	190-520 VAC @ 50% load; 305-478 VAC @ 100% load
GALLEON III 3P/3P 40KL	190-520 VAC @ 50% load; 305-478 VAC @ 100% load
GALLEON III 3P/3P 60KL	190-520 VAC @ 50% load; 305-478 VAC @ 100% load

Nominal Voltage

GALLEON III 3P/3P 30KL	3x 380/400/415 VAC (3Ph+N)
GALLEON III 3P/3P 40KL	3x 380/400/415 VAC (3Ph+N)
GALLEON III 3P/3P 60KL	3x 380/400/415 VAC (3Ph+N)

Frequency Range

GALLEON III 3P/3P 30KL	46~54 Hz or 56~64Hz
GALLEON III 3P/3P 40KL	46~54 Hz or 56~64Hz
GALLEON III 3P/3P 60KL	46~54 Hz or 56~64Hz

Power Factor

GALLEON III 3P/3P 30KL	≧ 0.99 @ 100% load
GALLEON III 3P/3P 40KL	≧ 0.99 @ 100% load
GALLEON III 3P/3P 60KL	≧ 0.99 @ 100% load

OUTPUT

Output Voltage

GALLEON III 3P/3P 30KL	3x 380/400/415 VAC (3Ph+N)
GALLEON III 3P/3P 40KL	3x 380/400/415 VAC (3Ph+N)
GALLEON III 3P/3P 60KL	3x 380/400/415 VAC (3Ph+N)

AC Voltage Regulation (Batt. Mode)

GALLEON III 3P/3P 30KL	± 1%
GALLEON III 3P/3P 40KL	± 1%
GALLEON III 3P/3P 60KL	± 1%

Frequency Range (Batt. Mode)

GALLEON III 3P/3P 30KL	50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
GALLEON III 3P/3P 40KL	50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
GALLEON III 3P/3P 60KL	50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz

Transfer Time AC Mode to Battery Mode

GALLEON III 3P/3P 30KL	zero
GALLEON III 3P/3P 40KL	zero
GALLEON III 3P/3P 60KL	zero

Transfer Time Inverter to Bypass

GALLEON III 3P/3P 30KL	zero
GALLEON III 3P/3P 40KL	zero
GALLEON III 3P/3P 60KL	zero

Waveform (Batt. Mode)

GALLEON III 3P/3P 30KL	Pure Sine Wave
GALLEON III 3P/3P 40KL	Pure Sine Wave
GALLEON III 3P/3P 60KL	Pure Sine Wave

Current Crest Ratio

GALLEON III 3P/3P 30KL	3:1 (max.)
GALLEON III 3P/3P 40KL	3:1 (max.)
GALLEON III 3P/3P 60KL	3:1 (max.)

Harmonic Distortion

GALLEON III 3P/3P 30KL	≦ 2 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load)
GALLEON III 3P/3P 40KL	≦ 2 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load)
GALLEON III 3P/3P 60KL	≦ 2 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load)

Frequency Range (Synchronized Range)

GALLEON III 3P/3P 30KL	46~54Hz or 56~64Hz
GALLEON III 3P/3P 40KL	46~54Hz or 56~64Hz
GALLEON III 3P/3P 60KL	46~54Hz or 56~64Hz

Overload AC Mode

GALLEON III 3P/3P 30KL	100-110% for 60 min, 111-125% for 10 min, 126%~150% for 1 min; >150% immediately shutdown
GALLEON III 3P/3P 40KL	100-110% for 60 min, 111-125% for 10 min, 126%~150% for 1 min; >150% immediately shutdown
GALLEON III 3P/3P 60KL	100-110% for 60 min, 111-125% for 10 min, 126%~150% for 1 min; >150% immediately shutdown

Overload Battery Mode

GALLEON III 3P/3P 30KL	100-110% for 60 min, 111-125% for 10 min, 126%~150% for 1 min; >150% immediately shutdown
GALLEON III 3P/3P 40KL	100-110% for 60 min, 111-125% for 10 min, 126%~150% for 1 min; >150% immediately shutdown
GALLEON III 3P/3P 60KL	100-110% for 60 min, 111-125% for 10 min, 126%~150% for 1 min; >150% immediately shutdown

EFFICIENCY

Battery Mode

GALLEON III 3P/3P 30KL	95.5%
GALLEON III 3P/3P 40KL	95.5%
GALLEON III 3P/3P 60KL	95.5%

ECO Mode

GALLEON III 3P/3P 30KL	98.5%
GALLEON III 3P/3P 40KL	98.5%
GALLEON III 3P/3P 60KL	98.5%

AC Mode

GALLEON III 3P/3P 30KL	94.5%
GALLEON III 3P/3P 40KL	94.5%
GALLEON III 3P/3P 60KL	94.5%

BATTERY

Battery Type

GALLEON III 3P/3P 30KL	Depending on the applications
GALLEON III 3P/3P 40KL	Depending on the applications
GALLEON III 3P/3P 60KL	Depending on the applications

Charging Voltage

GALLEON III 3P/3P 30KL	+/-13.65V*N (N=16~20)
GALLEON III 3P/3P 40KL	+/-13.65V*N (N=16~20)
GALLEON III 3P/3P 60KL	+/-13.65V*N (N=16~20)

Numbers

GALLEON III 3P/3P 30KL	±16 ~±20 (Adjustable)
GALLEON III 3P/3P 40KL	±16 ~±20 (Adjustable)
GALLEON III 3P/3P 60KL	±16 ~±20 (Adjustable)

Charging Current (max.)

GALLEON III 3P/3P 30KL	1A ~ 12A (Adjustable)
GALLEON III 3P/3P 40KL	1A ~ 12A (Adjustable)
GALLEON III 3P/3P 60KL	1A ~ 18A (Adjustable)

ENVIRONMENT

Operating Temperature

GALLEON III 3P/3P 30KL	0~40°C
GALLEON III 3P/3P 40KL	0~40°C
GALLEON III 3P/3P 60KL	0~40°C

Operating Humidity

GALLEON III 3P/3P 30KL	<95% and non-condersing
GALLEON III 3P/3P 40KL	<95% and non-condersing
GALLEON III 3P/3P 60KL	<95% and non-condersing

Noise Level

GALLEON III 3P/3P 30KL	Less than 65dB @ 1 Meter
GALLEON III 3P/3P 40KL	Less than 70dB @ 1 Meter
GALLEON III 3P/3P 60KL	Less than 70dB @ 1 Meter

PHYSICAL

Dimension, D X W X H (mm)

GALLEON III 3P/3P 30KL	680 x 438 x 133 [3U]
GALLEON III 3P/3P 40KL	680 x 438 x 133 [3U]
GALLEON III 3P/3P 60KL	797x438x176 [4U]

Net Weight (kgs)

GALLEON III 3P/3P 30KL	32
GALLEON III 3P/3P 40KL	34
GALLEON III 3P/3P 60KL	45

MANAGEMENT

Optional SNMP

GALLEON III 3P/3P 30KL	Power management from SNMP manager and web browser
GALLEON III 3P/3P 40KL	Power management from SNMP manager and web browser
GALLEON III 3P/3P 60KL	Power management from SNMP manager and web browser

Smart RS-232 / USB

GALLEON III 3P/3P 30KL	Supports Windows® family, Linux and MAC
GALLEON III 3P/3P 40KL	Supports Windows® family, Linux and MAC
GALLEON III 3P/3P 60KL	Supports Windows® family, Linux and MAC
