Galleon III 3P/3P & 3P/1P & 1P/1P RT 10KL/20KL/20KL-3U
PF 1.0 high-frequency Rack-Mounted Online UPS

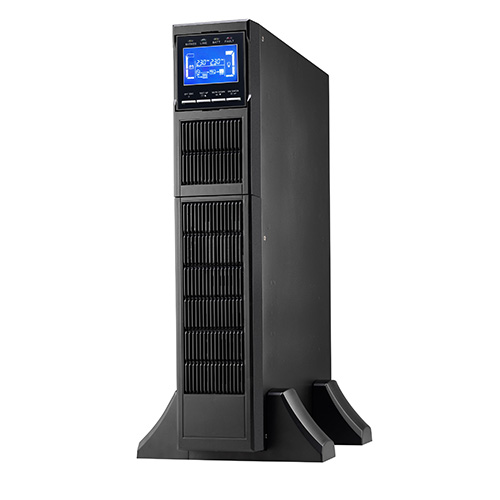

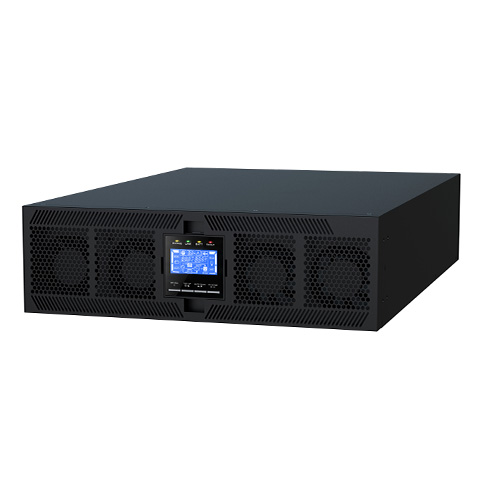

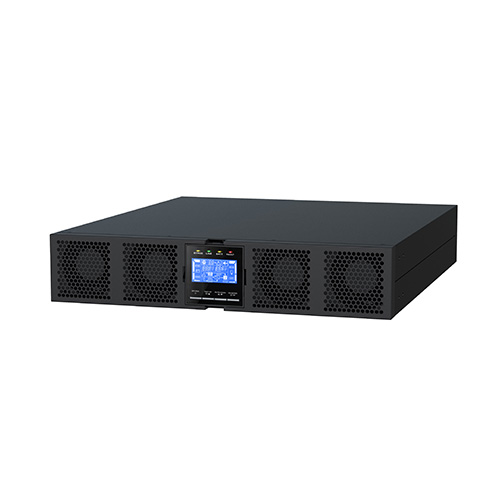

The Galleon III 3P/3P, 3P/1P, and 1P/1P RT 10KL/20KL/20KL-3U Series is a true double-conversion, high-performance UPS designed to provide dependable power protection for critical applications. It features a unity output power factor (1.0) to deliver maximum efficiency and performance. Its versatile design allows for either rack or tower installation and supports multiple system configurations, including 3-input/3-output, 3-input/1-output, or 1-input/1-output setups. Equipped with advanced DSP technology, dual AC inputs, and active power factor correction, it guarantees stable and clean power output in all conditions. The system also offers ECO mode operation, compatibility with generators, and adjustable battery quantities for optimized power management. Additionally, up to four units can be connected in parallel with a shared battery bank, enabling scalable capacity and redundancy for mission-critical operations.
Add to Compare Add to Inquiry
Main Features
  • True double-conversion technology
  • Versatile Rack/Tower design
  • Flexible system configurations: 3-in/3-out, 3-in/1-out, or 1-in/1-out
  • High performance ensured by advanced DSP technology
  • Output power factor of 1
  • Active power factor correction across all phases
  • Frequency converter mode supporting both 50Hz and 60Hz
  • Energy-saving ECO mode operation
  • Emergency Power Off (EPO) function
  • Dual AC input capability
  • Compatible with generator power sources
  • Adjustable number of batteries to suit your needs
  • Supports parallel operation of up to 4 units with a shared battery system
General
CAPACITY
Galleon III 33/31/11 10KL Rack10 KVA / 10 KW
Galleon III 33/31/11 20KL Rack20KVA/ 20KW
Galleon III 33/31/11 20KL-3U Rack20KVA/ 20KW
PHASE
Galleon III 33/31/11 10KL Rack3-phase in/3-phase out, 3-phase in/single phase out, single phase in/single phase out (Selectable)
Galleon III 33/31/11 20KL Rack3-phase in/3-phase out, 3-phase in/single phase out, single phase in/single phase out (Selectable)
Galleon III 33/31/11 20KL-3U Rack3-phase in/3-phase out, 3-phase in/single phase out, single phase in/single phase out (Selectable)
PARALLEL CAPABILITY
Galleon III 33/31/11 10KL Rack4
Galleon III 33/31/11 20KL Rack4
Galleon III 33/31/11 20KL-3U Rack4
INPUT
Voltage Range
Galleon III 33/31/11 10KL Rack190-520 VAC @ 50% load; 305-478 VAC @ 100% load
Galleon III 33/31/11 20KL Rack190-520 VAC @ 50% load; 305-478 VAC @ 100% load
Galleon III 33/31/11 20KL-3U Rack190-520 VAC @ 50% load; 305-478 VAC @ 100% load
Nominal Voltage
Galleon III 33/31/11 10KL Rack3x 380/400/415 VAC (3Ph+N)
Galleon III 33/31/11 20KL Rack3x 380/400/415 VAC (3Ph+N)
Galleon III 33/31/11 20KL-3U Rack3x 380/400/415 VAC (3Ph+N)
Frequency Range
Galleon III 33/31/11 10KL Rack46~54 Hz or 56~64Hz
Galleon III 33/31/11 20KL Rack46~54 Hz or 56~64Hz
Galleon III 33/31/11 20KL-3U Rack46~54 Hz or 56~64Hz
Power Factor
Galleon III 33/31/11 10KL Rack≧ 0.99 @ 100% load
Galleon III 33/31/11 20KL Rack≧ 0.99 @ 100% load
Galleon III 33/31/11 20KL-3U Rack≧ 0.99 @ 100% load
OUTPUT
Output Voltage
Galleon III 33/31/11 10KL Rack3 x 380/400/415VAC (3Ph+N) or 220/230/240VAC (1Ph+N)
Galleon III 33/31/11 20KL Rack3 x 380/400/415VAC (3Ph+N) or 220/230/240VAC (1Ph+N)
Galleon III 33/31/11 20KL-3U Rack3 x 380/400/415VAC (3Ph+N) or 220/230/240VAC (1Ph+N)
AC Voltage Regulation (Batt. Mode)
Galleon III 33/31/11 10KL Rack± 1%
Galleon III 33/31/11 20KL Rack± 1%
Galleon III 33/31/11 20KL-3U Rack± 1%
Frequency Range (Batt. Mode)
Galleon III 33/31/11 10KL Rack50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Galleon III 33/31/11 20KL Rack50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Galleon III 33/31/11 20KL-3U Rack50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Transfer Time AC Mode to Battery Mode
Galleon III 33/31/11 10KL Rackzero
Galleon III 33/31/11 20KL Rackzero
Galleon III 33/31/11 20KL-3U Rackzero
Transfer Time Inverter to Bypass
Galleon III 33/31/11 10KL Rackzero
Galleon III 33/31/11 20KL Rackzero
Galleon III 33/31/11 20KL-3U Rackzero
Waveform (Batt. Mode)
Galleon III 33/31/11 10KL RackPure Sine Wave
Galleon III 33/31/11 20KL RackPure Sine Wave
Galleon III 33/31/11 20KL-3U RackPure Sine Wave
Current Crest Ratio
Galleon III 33/31/11 10KL Rack3:1 (max.)
Galleon III 33/31/11 20KL Rack3:1 (max.)
Galleon III 33/31/11 20KL-3U Rack3:1 (max.)
Harmonic Distortion
Galleon III 33/31/11 10KL Rack≦ 2 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load)
Galleon III 33/31/11 20KL Rack≦ 2 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load)
Galleon III 33/31/11 20KL-3U Rack≦ 2 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load)
Frequency Range (Synchronized Range)
Galleon III 33/31/11 10KL Rack46~54Hz or 56~64Hz
Galleon III 33/31/11 20KL Rack46~54Hz or 56~64Hz
Galleon III 33/31/11 20KL-3U Rack46~54Hz or 56~64Hz
Overload AC Mode
Galleon III 33/31/11 10KL Rack100-110% for 60 min, 111-125% for 10 min, 126%~150% for 1 min; >150% immediately shutdown
Galleon III 33/31/11 20KL Rack100-110% for 60 min, 111-125% for 10 min, 126%~150% for 1 min; >150% immediately shutdown
Galleon III 33/31/11 20KL-3U Rack100-110% for 60 min, 111-125% for 10 min, 126%~150% for 1 min; >150% immediately shutdown
Overload Battery Mode
Galleon III 33/31/11 10KL Rack100-110% for 60 min, 111-125% for 10 min, 126%~150% for 1 min; >150% immediately shutdown
Galleon III 33/31/11 20KL Rack100-110% for 60 min, 111-125% for 10 min, 126%~150% for 1 min; >150% immediately shutdown
Galleon III 33/31/11 20KL-3U Rack100-110% for 60 min, 111-125% for 10 min, 126%~150% for 1 min; >150% immediately shutdown
EFFICIENCY
Battery Mode
Galleon III 33/31/11 10KL Rack95.5%
Galleon III 33/31/11 20KL Rack0.96
Galleon III 33/31/11 20KL-3U Rack0.96
ECO Mode
Galleon III 33/31/11 10KL Rack98.5%
Galleon III 33/31/11 20KL Rack98.5%
Galleon III 33/31/11 20KL-3U Rack98.5%
AC Mode
Galleon III 33/31/11 10KL Rack94.5%
Galleon III 33/31/11 20KL Rack0.955
Galleon III 33/31/11 20KL-3U Rack0.955
BATTERY
Battery Type
Galleon III 33/31/11 10KL RackDepending on the applications
Galleon III 33/31/11 20KL RackDepending on the applications
Galleon III 33/31/11 20KL-3U RackDepending on the applications
Charging Voltage
Galleon III 33/31/11 10KL Rack+/- 13.65 VDC x N (N=8~10)
Galleon III 33/31/11 20KL Rack+/-13.65V x N (N=16~20)
Galleon III 33/31/11 20KL-3U Rack+/-13.65V x N (N=10~20)
Numbers
Galleon III 33/31/11 10KL Rack±8 ~ ±10 (adjustable)
Galleon III 33/31/11 20KL Rack±16 ~±20 (Adjustable)
Galleon III 33/31/11 20KL-3U Rack±10 ~ ±20 (adjustable)
Charging Current (max.)
Galleon III 33/31/11 10KL Rack1A ~ 18A (Adjustable)
Galleon III 33/31/11 20KL Rack1A ~ 18A (Adjustable)
Galleon III 33/31/11 20KL-3U Rack1A ~ 18A (Adjustable)
ENVIRONMENT
Operating Temperature
Galleon III 33/31/11 10KL Rack0~40°C
Galleon III 33/31/11 20KL Rack0~40°C
Galleon III 33/31/11 20KL-3U Rack0~40°C
Operating Humidity
Galleon III 33/31/11 10KL Rack<95% and non-condersing
Galleon III 33/31/11 20KL Rack<95% and non-condersing
Galleon III 33/31/11 20KL-3U Rack<95% and non-condersing
Noise Level
Galleon III 33/31/11 10KL RackLess than 65dB @ 1 Meter
Galleon III 33/31/11 20KL RackLess than 70dB @ 1 Meter
Galleon III 33/31/11 20KL-3U RackLess than 70dB @ 1 Meter
PHYSICAL
Dimension, D X W X H (mm)
Galleon III 33/31/11 10KL Rack620 x 438 x 88 [2U]
Galleon III 33/31/11 20KL Rack620 x 438 x 88 [2U]
Galleon III 33/31/11 20KL-3U Rack620 x 438 x 130.6 [3U]
Net Weight (kgs)
Galleon III 33/31/11 10KL Rack16
Galleon III 33/31/11 20KL Rack22.2
Galleon III 33/31/11 20KL-3U Rack23.1
MANAGEMENT
Optional SNMP
Galleon III 33/31/11 10KL RackPower management from SNMP manager and web browser
Galleon III 33/31/11 20KL RackPower management from SNMP manager and web browser
Galleon III 33/31/11 20KL-3U RackPower management from SNMP manager and web browser
Smart RS-232 / USB
Galleon III 33/31/11 10KL RackSupports Windows® family, Linux and MAC
Galleon III 33/31/11 20KL RackSupports Windows® family, Linux and MAC
Galleon III 33/31/11 20KL-3U RackSupports Windows® family, Linux and MAC
