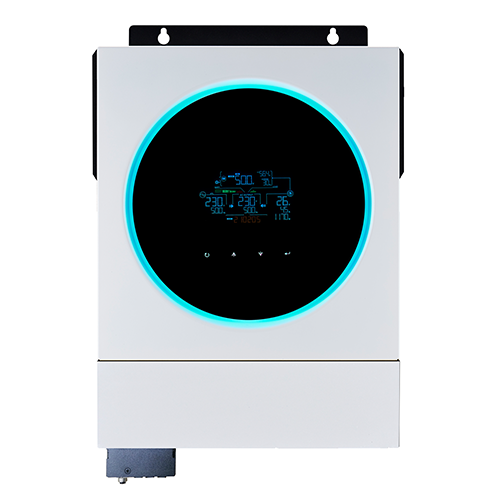

Axpert VM IV-4K/6K TWIN-PV 5600/8000
Dual output for smart load management, and a maximum PV input current of 40A
Features include increased PV power capabilities of 5600W and 8000W, dual output for smart load management, and a maximum PV input current of 40A. It includes user-friendly features such as a customizable status LED ring with RGB lights, a 4.3 color LCD with a touchable button, and built-in WiFi for mobile monitoring and over-the-air (OTA) firmware upgrades. Additional features include USB On-the-Go support, a built-in BMS communication port, meter calibration for optimized system operation, a battery-independent design, and a built-in anti-dust kit.
Add to Compare Add to Inquiry
Main Features
  • Increased PV power to 5600W and 8000W based on the model
  • Dual output for smart load management
  • Maximum PV input current 40A
  • Customizable status LED ring with RGB lights
  • Touchable button with a large 4.3-inch colored LCD
  • Built-in WiFi for mobile monitoring and OTA firmware upgrade
  • Supports USB On-the-Go function
  • Built-in BMS communication port
  • Built-in meter calibration for optimized system operation
  • Battery-independent design
  • Built-in anti-dust kit
General
Rated Power
VM IV-4000 TWIN-PV 56004000VA/4000W
VM IV-6000 TWIN-PV 80006000VA/6000W
INPUT
Voltage
VM IV-4000 TWIN-PV 5600230 VAC
VM IV-6000 TWIN-PV 8000230 VAC
Selectable Voltage Range
VM IV-4000 TWIN-PV 5600170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
VM IV-6000 TWIN-PV 8000170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Frequency Range
VM IV-4000 TWIN-PV 560050 Hz/60 Hz (Auto sensing)
VM IV-6000 TWIN-PV 800050 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)
VM IV-4000 TWIN-PV 5600230 VAC ± 10%
VM IV-6000 TWIN-PV 8000230 VAC ± 10%
Surge Power
VM IV-4000 TWIN-PV 56008000VA
VM IV-6000 TWIN-PV 800012000VA
Efficiency (Peak)
VM IV-4000 TWIN-PV 560090%~93%
VM IV-6000 TWIN-PV 800090%~93%
Transfer Time
VM IV-4000 TWIN-PV 560010 ms (For Personal Computers); 20 ms (For Home Appliances)
VM IV-6000 TWIN-PV 800010 ms (For Personal Computers); 20 ms (For Home Appliances)
Waveform
VM IV-4000 TWIN-PV 5600Pure Sine Wave
VM IV-6000 TWIN-PV 8000Pure Sine Wave
BATTERY
Battery Voltage
VM IV-4000 TWIN-PV 560024 VDC
VM IV-6000 TWIN-PV 800048 VDC
Floating Charge Voltage
VM IV-4000 TWIN-PV 560027 VDC
VM IV-6000 TWIN-PV 800054 VDC
Overcharge Protection
VM IV-4000 TWIN-PV 560033 VDC
VM IV-6000 TWIN-PV 800063 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type
VM IV-4000 TWIN-PV 5600MPPT
VM IV-6000 TWIN-PV 8000MPPT
Maximum PV Array Open Circuit Voltage
VM IV-4000 TWIN-PV 5600500 VDC
VM IV-6000 TWIN-PV 8000500 VDC
Maximum PV Array Power
VM IV-4000 TWIN-PV 56005600W
VM IV-6000 TWIN-PV 80008000W
MPPT Range @ Operating Voltage
VM IV-4000 TWIN-PV 560060-450 VDC
VM IV-6000 TWIN-PV 800060-450 VDC
Maximum Solar Charge Current
VM IV-4000 TWIN-PV 5600120A
VM IV-6000 TWIN-PV 8000120A
Maximum AC Charge Current
VM IV-4000 TWIN-PV 5600100A
VM IV-6000 TWIN-PV 8000100A
Maximum Charging Current
VM IV-4000 TWIN-PV 5600120A
VM IV-6000 TWIN-PV 8000120A
PHYSICAL
Dimension, D X W X H (mm)
VM IV-4000 TWIN-PV 5600136 x 300 x 400.2
VM IV-6000 TWIN-PV 8000136 x 300 x 400.2
Net Weight (kgs)
VM IV-4000 TWIN-PV 560010
VM IV-6000 TWIN-PV 800012
Communication Port
VM IV-4000 TWIN-PV 5600USB/RS232/RS485/WiFi/Dry-contact
VM IV-6000 TWIN-PV 8000USB/RS232/RS485/WiFi/Dry-contact
OPERATING ENVIRONMENT
Operating Humidity
VM IV-4000 TWIN-PV 56005% to 95% Relative Humidity(Non-condensing)
VM IV-6000 TWIN-PV 80005% to 95% Relative Humidity(Non-condensing)
Operating Temperature
VM IV-4000 TWIN-PV 5600-10℃ to 50℃
VM IV-6000 TWIN-PV 8000-10℃ to 50℃
Storage Temperature
VM IV-4000 TWIN-PV 5600-15℃ to 60℃
VM IV-6000 TWIN-PV 8000-15℃ to 60℃
