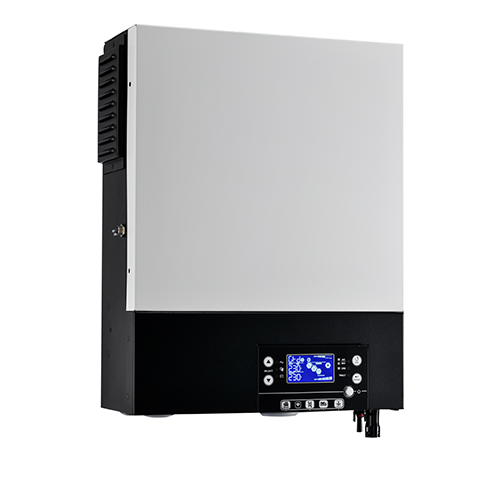

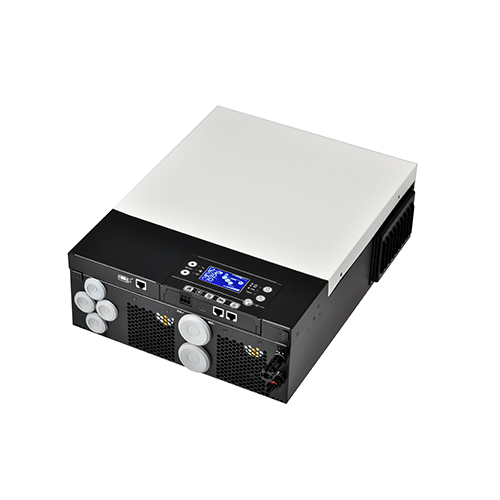

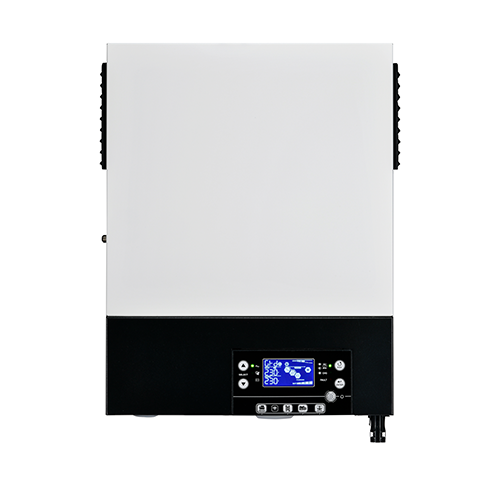

Axpert VM III TRI 4.5K/6.5kw
Dual inputs and triple outputs with 40A maximum PV input curren
The Axpert VM III TRI hybrid inverter offers versatile energy management with dual inputs and triple outputs, a 40A maximum PV input current, and built-in Wi-Fi for mobile monitoring and OTA firmware updates. It includes USB (Type-A/C) On-The-Go support, a reserved communication port for BMS connection, and a 120A MPPT solar charger. Its battery-independent design and built-in anti-dust kit ensure reliable operation.
Add to Compare Add to Inquiry
Main Features
  • Dual inputs and triple outputs:For versatile energy management.
  • 40A maximum PV input current:High capacity for solar power.
  • Built-in Wi-Fi: Enables mobile monitoring and Over-The-Air (OTA) firmware updates.
  • USB (Type-A/C) On-the-Go support: For exporting logs and firmware upgrades.
  • Reserved communication port (RS485, CAN-BUS, or RS232): For connection to a Battery Management System (BMS).
  • Battery-independent design:Ensures operation even without a battery.
  • 120A MPPT solar charger:Efficient solar charging capabilities.
  • Built-in anti-dust kit: Protects internal components from dust.
General
Rated Power
Axpert VM III TRI 4.5K4500VA/4500W
Axpert VM III TRI 6.5K6500VA/6500W
INPUT
Voltage
Axpert VM III TRI 4.5K230 VAC
Axpert VM III TRI 6.5K230 VAC
Selectable Voltage Range
Axpert VM III TRI 4.5K170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Axpert VM III TRI 6.5K170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Frequency Range
Axpert VM III TRI 4.5K50 Hz/60 Hz (Auto sensing)
Axpert VM III TRI 6.5K50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)
Axpert VM III TRI 4.5K230 VAC ± 10%
Axpert VM III TRI 6.5K230 VAC ± 10%
Surge Power
Axpert VM III TRI 4.5K9000VA
Axpert VM III TRI 6.5K13000VA
Efficiency (Peak)
Axpert VM III TRI 4.5K90%~93%
Axpert VM III TRI 6.5K90%~93%
Transfer Time
Axpert VM III TRI 4.5K10 ms (For Personal Computers); 20 ms (For Home Appliances)
Axpert VM III TRI 6.5K10 ms (For Personal Computers); 20 ms (For Home Appliances)
Waveform
Axpert VM III TRI 4.5KPure Sine Wave
Axpert VM III TRI 6.5KPure Sine Wave
BATTERY
Battery Voltage
Axpert VM III TRI 4.5K24 VDC
Axpert VM III TRI 6.5K48 VDC
Floating Charge Voltage
Axpert VM III TRI 4.5K27 VDC
Axpert VM III TRI 6.5K54 VDC
Overcharge Protection
Axpert VM III TRI 4.5K33 VDC
Axpert VM III TRI 6.5K63 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type
Axpert VM III TRI 4.5KMPPT
Axpert VM III TRI 6.5KMPPT
Maximum PV Array Open Circuit Voltage
Axpert VM III TRI 4.5K500 VDC
Axpert VM III TRI 6.5K500 VDC
Maximum PV Array Power
Axpert VM III TRI 4.5K6500W
Axpert VM III TRI 6.5K8500W
MPPT Range @ Operating Voltage
Axpert VM III TRI 4.5K60-450 VDC
Axpert VM III TRI 6.5K60-450 VDC
Maximum Solar Charge Current
Axpert VM III TRI 4.5K120A
Axpert VM III TRI 6.5K120A
Maximum AC Charge Current
Axpert VM III TRI 4.5K120A
Axpert VM III TRI 6.5K120A
Maximum Charging Current
Axpert VM III TRI 4.5K120A
Axpert VM III TRI 6.5K120A
PHYSICAL
Dimension, D X W X H (mm)
Axpert VM III TRI 4.5K131 x 336 x 435.5
Axpert VM III TRI 6.5K131 x 336 x 435.5
Net Weight (kgs)
Axpert VM III TRI 4.5K11.8
Axpert VM III TRI 6.5K12.8
Communication Port
Axpert VM III TRI 4.5KUSB, RS-232,RS-485,WiFi,Dry-contact
Axpert VM III TRI 6.5KUSB, RS-232,RS-485,WiFi,Dry-contact
OPERATING ENVIRONMENT
Operating Humidity
Axpert VM III TRI 4.5K5% to 95% Relative Humidity(Non-condensing)
Axpert VM III TRI 6.5K5% to 95% Relative Humidity(Non-condensing)
Operating Temperature
Axpert VM III TRI 4.5K-10℃ to 50℃
Axpert VM III TRI 6.5K-10℃ to 50℃
Storage Temperature
Axpert VM III TRI 4.5K-15℃ to 60℃
Axpert VM III TRI 6.5K-15℃ to 60℃
