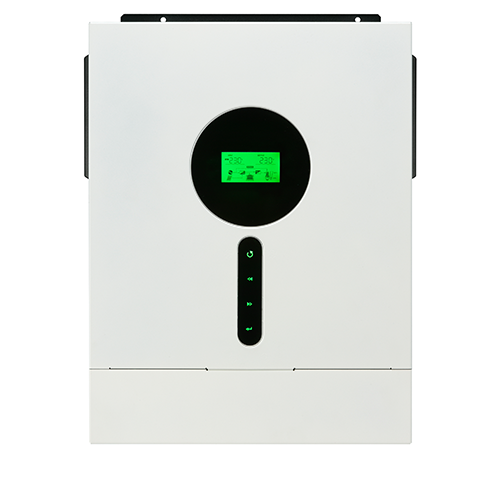

Axpert VM II TWIN
Built-in 120A MPPT solar charger
Axpert VM II TWIN features dual outputs for smart load management, a maximum PV input current of 27A, and a wide PV input voltage range of 60VDC to 450VDC. Its designed to operate independently of a battery and includes a built-in 120A MPPT solar charger. A battery equalization function optimizes battery performance and extends its lifespan.
Main Features
- Dual outputs, for smart load management
- Maximum PV input current increases to 27A
- Wide PV input voltage range 60VDC ~ 450VDC
- Battery-independent design
- Built-in 120A MPPT solar charger
- Battery equalization function to optimize the battery
- performance and extend the lifecycle
| MODEL | Axpert VM II 3.6kW | Axpert VM II 5.6kW | |
| Rated Power | 3600VA/3600W | 5600VA/5600W | |
| INPUT | |||
| Voltage | 230 VAC | 230 VAC | |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances) | 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | 50 Hz/60 Hz (Auto sensing) | |
| OUTPUT | |||
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% | 230 VAC ± 5% | |
| Surge Power | 93% | 93% | |
| Efficiency (Peak) | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | |
| Transfer Time | Pure Sine Wave | Pure Sine Wave | |
| Waveform | 7200VA | 11200VA | |
| Dual Outputs | Yes | Yes | |
| BATTERY | |||
| Battery Voltage | 24 VDC | 48 VDC | |
| Floating Charge Voltage | 27 VDC | 54 VDC | |
| Overcharge Protection | 33 VDC | 63 VDC | |
| SOLAR CHARGER & AC CHARGER | |||
| Solar Charger Type | MPPT | MPPT | |
| Maximum PV Array Open Circuit Voltage | 500 VDC | 500 VDC | |
| Maximum PV Array Power | 5000W | 6000W | |
| MPPT Range @ Operating Voltage | 60-450 VDC | 60-450 VDC | |
| Maximum Solar Charge Current | 120A | 120A | |
| Maximum AC Charge Current | 100A | 100A | |
| Maximum Charging Current | 120A | 120A | |
| Maximum PV Input Current | 107 x 322.6 x 420.3 | 107 x 322.6 x 420.3 | |
| PHYSICAL | |||
| Dimension, D X W X H (mm) | 9.5 | 10.5 | |
| Net Weight (kgs) | USB/RS232 | USB/RS232 | |
| Communication Port | 5% to 95% Relative Humidity(Non-condensing) | 5% to 95% Relative Humidity(Non-condensing) | |
| OPERATING ENVIRONMENT | |||
| Operating Humidity | -10℃ to 50℃ | -10℃ to 50℃ | |
| Operating Temperature | -15℃ to 60℃ | -15℃ to 60℃ | |
| Storage Temperature | -15℃ to 60℃ | -15℃ to 60℃ | |
General
Rated Power
| Axpert VM II 3.6kW | 3600VA/3600W |
|---|---|
| Axpert VM II 5.6kW | 5600VA/5600W |
INPUT
Voltage
| Axpert VM II 3.6kW | 230 VAC |
|---|---|
| Axpert VM II 5.6kW | 230 VAC |
Selectable Voltage Range
| Axpert VM II 3.6kW | 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances) |
|---|---|
| Axpert VM II 5.6kW | 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances) |
Frequency Range
| Axpert VM II 3.6kW | 50 Hz/60 Hz (Auto sensing) |
|---|---|
| Axpert VM II 5.6kW | 50 Hz/60 Hz (Auto sensing) |
OUTPUT
AC Voltage Regulation (Batt. Mode)
| Axpert VM II 3.6kW | 230 VAC ± 5% |
|---|---|
| Axpert VM II 5.6kW | 230 VAC ± 5% |
Surge Power
| Axpert VM II 3.6kW | 93% |
|---|---|
| Axpert VM II 5.6kW | 93% |
Efficiency (Peak)
| Axpert VM II 3.6kW | 10 ms (For Personal Computers); 20 ms (For Home Appliances) |
|---|---|
| Axpert VM II 5.6kW | 10 ms (For Personal Computers); 20 ms (For Home Appliances) |
Transfer Time
| Axpert VM II 3.6kW | Pure Sine Wave |
|---|---|
| Axpert VM II 5.6kW | Pure Sine Wave |
Waveform
| Axpert VM II 3.6kW | 7200VA |
|---|---|
| Axpert VM II 5.6kW | 11200VA |
Dual Outputs
| Axpert VM II 3.6kW | Yes |
|---|---|
| Axpert VM II 5.6kW | Yes |
BATTERY
Battery Voltage
| Axpert VM II 3.6kW | 24 VDC |
|---|---|
| Axpert VM II 5.6kW | 48 VDC |
Floating Charge Voltage
| Axpert VM II 3.6kW | 27 VDC |
|---|---|
| Axpert VM II 5.6kW | 54 VDC |
Overcharge Protection
| Axpert VM II 3.6kW | 33 VDC |
|---|---|
| Axpert VM II 5.6kW | 63 VDC |
SOLAR CHARGER & AC CHARGER
Solar Charger Type
| Axpert VM II 3.6kW | MPPT |
|---|---|
| Axpert VM II 5.6kW | MPPT |
Maximum PV Array Open Circuit Voltage
| Axpert VM II 3.6kW | 500 VDC |
|---|---|
| Axpert VM II 5.6kW | 500 VDC |
Maximum PV Array Power
| Axpert VM II 3.6kW | 5000W |
|---|---|
| Axpert VM II 5.6kW | 6000W |
MPPT Range @ Operating Voltage
| Axpert VM II 3.6kW | 60-450 VDC |
|---|---|
| Axpert VM II 5.6kW | 60-450 VDC |
Maximum Solar Charge Current
| Axpert VM II 3.6kW | 120A |
|---|---|
| Axpert VM II 5.6kW | 120A |
Maximum AC Charge Current
| Axpert VM II 3.6kW | 100A |
|---|---|
| Axpert VM II 5.6kW | 100A |
Maximum Charging Current
| Axpert VM II 3.6kW | 120A |
|---|---|
| Axpert VM II 5.6kW | 120A |
Maximum PV Input Current
| Axpert VM II 3.6kW | 107 x 322.6 x 420.3 |
|---|---|
| Axpert VM II 5.6kW | 107 x 322.6 x 420.3 |
PHYSICAL
Dimension, D X W X H (mm)
| Axpert VM II 3.6kW | 9.5 |
|---|---|
| Axpert VM II 5.6kW | 10.5 |
Net Weight (kgs)
| Axpert VM II 3.6kW | USB/RS232 |
|---|---|
| Axpert VM II 5.6kW | USB/RS232 |
Communication Port
| Axpert VM II 3.6kW | 5% to 95% Relative Humidity(Non-condensing) |
|---|---|
| Axpert VM II 5.6kW | 5% to 95% Relative Humidity(Non-condensing) |
OPERATING ENVIRONMENT
Operating Humidity
| Axpert VM II 3.6kW | -10℃ to 50℃ |
|---|---|
| Axpert VM II 5.6kW | -10℃ to 50℃ |
Operating Temperature
| Axpert VM II 3.6kW | -15℃ to 60℃ |
|---|---|
| Axpert VM II 5.6kW | -15℃ to 60℃ |
Storage Temperature
| Axpert VM II 3.6kW | -15℃ to 60℃ |
|---|---|
| Axpert VM II 5.6kW | -15℃ to 60℃ |
 |
