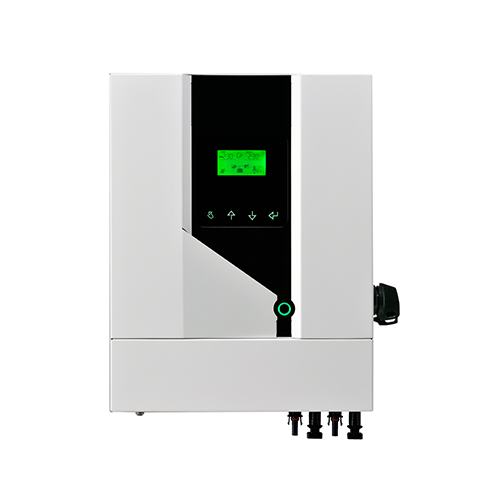

Axpert VM II Elite 6KP
6kw Solar Inverter, 2 Inputs & 2 smart outputs, super large charger
The Axpert VM II Elite 6KP is a solar inverter featuring dual inputs and outputs, supporting a maximum PV input current of 27A and power output of up to 10,000W, with a voltage range of 60VDC to 450VDC. It includes a built-in communication port for battery management systems (BMS) and integrated WiFi for remote monitoring and OTA firmware updates. Designed for efficiency and low noise, it has a pre-charge circuit to reduce inrush current, true reverse polarity protection, a built-in PV DC switch, and supports two strings of PV input. Additionally, it features a current transformer sensor for self-consumption applications, meter calibration, parallel output capabilities, and a metered second output, making it ideal for optimizing solar energy utilization.
Main Features
  • Dual outputs and dual inputs
  • Maximum PV input current increases to 27A and power up to 10000W
  • Wide PV input voltage range 60VDC~450VDC
  • Built-in communication port for BMS
  • Built-in WiFi with remote monitoring APP and OTA firmware upgrade
  • Built-in Pre-charge circuit to reduce inrush current
  • True battery reverse polarity protection
  • Low noise and no-load consumption
  • Built-in PV DC switch
  • 2 strings of PV input
  • Built-in current transformer sensor to meet self-consumption application
  • Built-in meter calibration function
  • Parallel output function included
  • Metered 2nd output
General
Rated Power
Axpert VM II ELITE 6KP6000VA/6000W
INPUT
Voltage
Axpert VM II ELITE 6KP230 VAC
Selectable Voltage Range
Axpert VM II ELITE 6KP170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Frequency Range
Axpert VM II ELITE 6KP50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)
Axpert VM II ELITE 6KP230 VAC ± 5%
Efficiency (Peak)
Axpert VM II ELITE 6KP0.93
Transfer Time
Axpert VM II ELITE 6KP10 ms (For Personal Computers); 20 ms (For Home Appliances)
Waveform
Axpert VM II ELITE 6KPPure Sine Wave
BATTERY
Battery Voltage
Axpert VM II ELITE 6KP48 VDC
Floating Charge Voltage
Axpert VM II ELITE 6KP54 VDC
Overcharge Protection
Axpert VM II ELITE 6KP63 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger type
Axpert VM II ELITE 6KPMPPT
Maximum PV Array Open Circuit Voltage
Axpert VM II ELITE 6KP500 VDC
Maximum PV Array Power
Axpert VM II ELITE 6KP10000W
MPPT Range @ Operating Voltage
Axpert VM II ELITE 6KP60 ~ 450 VDC
Maximum Solar Charge Current
Axpert VM II ELITE 6KP120A
Maximum AC Charge Current
Axpert VM II ELITE 6KP100A
Maximum Charging Current
Axpert VM II ELITE 6KP120A
Maximum PV Input Current
Axpert VM II ELITE 6KP27A
PHYSICAL
Dimension, D X W X H (mm)
Axpert VM II ELITE 6KP144 x 348 x 446
Net Weight (kgs)
Axpert VM II ELITE 6KP12.5
Communication Interface
Axpert VM II ELITE 6KPRS485/CAN/WiFi
OPERATING ENVIRONMENT
Operating Humidity
Axpert VM II ELITE 6KP5% to 95% Relative Humidity(Non-condensing)
Operating Temperature
Axpert VM II ELITE 6KP-10℃ to 50℃
Storage Temperature
Axpert VM II ELITE 6KP-15℃ to 60℃
Brochure Axpert VM II Elite 6K/6KP
Manual Axpert VM II Elite 6KP
