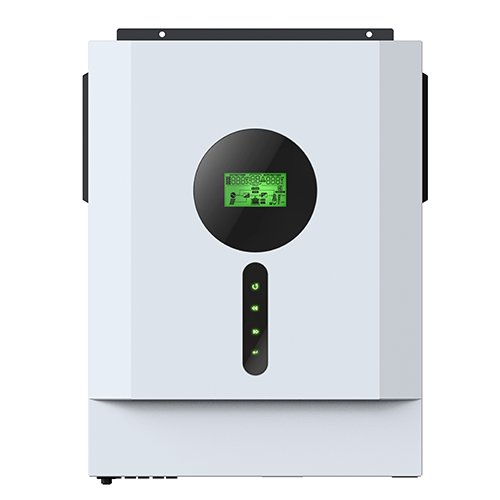

Axpert VM II-4K/6K TWIN-PV 5600/8000
Built-in 120A MPPT solar charger with Maximum PV input current 40A
Axpert VM II TWIN is a versatile solar power device designed for efficient energy management. Key features include high PV input capacity (up to 8000W), dual outputs for smart load distribution, built-in WiFi for mobile monitoring and easy updates, BMS communication for battery integration, and a battery-independent design for flexible system configurations. It also includes meter calibration for optimized performance and an anti-dust kit for durability. In short, its a powerful and adaptable solution for solar energy systems.
Add to Compare Add to Inquiry
Main Features
  • Increased PV power to 5600W and 8000W based on the model
  • Maximum PV input current 40A
  • Dual outputs, for smart load management
  • Built-in WiFi for mobile monitoring and OTA firmware upgrade. Supports USB On-the-Go function
  • Built-in BMS communication port
  • Built-in meter calibration for optimized system operation
  • Battery-independent design
  • Built-in anti-dust kit
General
Rated Power
VM II-4000 TWIN-PV 56004000VA/4000W
VM II-6000 TWIN-PV 80006000VA/6000W
INPUT
Voltage
VM II-4000 TWIN-PV 5600230 VAC
VM II-6000 TWIN-PV 8000230 VAC
Selectable Voltage Range
VM II-4000 TWIN-PV 5600170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
VM II-6000 TWIN-PV 8000170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Frequency Range
VM II-4000 TWIN-PV 560050 Hz/60 Hz (Auto sensing)
VM II-6000 TWIN-PV 800050 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)
VM II-4000 TWIN-PV 5600230 VAC ± 5%
VM II-6000 TWIN-PV 8000230 VAC ± 5%
Surge Power
VM II-4000 TWIN-PV 560093%
VM II-6000 TWIN-PV 800093%
Efficiency (Peak)
VM II-4000 TWIN-PV 560010 ms (For Personal Computers); 20 ms (For Home Appliances)
VM II-6000 TWIN-PV 800010 ms (For Personal Computers); 20 ms (For Home Appliances)
Transfer Time
VM II-4000 TWIN-PV 5600Pure Sine Wave
VM II-6000 TWIN-PV 8000Pure Sine Wave
Waveform
VM II-4000 TWIN-PV 56008000VA
VM II-6000 TWIN-PV 800012000VA
Dual Outputs
VM II-4000 TWIN-PV 5600Yes
VM II-6000 TWIN-PV 8000Yes
BATTERY
Battery Voltage
VM II-4000 TWIN-PV 560024 VDC
VM II-6000 TWIN-PV 800048 VDC
Floating Charge Voltage
VM II-4000 TWIN-PV 560027 VDC
VM II-6000 TWIN-PV 800054 VDC
Overcharge Protection
VM II-4000 TWIN-PV 560033 VDC
VM II-6000 TWIN-PV 800063 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type
VM II-4000 TWIN-PV 5600MPPT
VM II-6000 TWIN-PV 8000MPPT
Maximum PV Array Open Circuit Voltage
VM II-4000 TWIN-PV 5600500 VDC
VM II-6000 TWIN-PV 8000500 VDC
Maximum PV Array Power
VM II-4000 TWIN-PV 56005600W
VM II-6000 TWIN-PV 80008000W
MPPT Range @ Operating Voltage
VM II-4000 TWIN-PV 560060-450 VDC
VM II-6000 TWIN-PV 800060-450 VDC
Maximum Solar Charge Current
VM II-4000 TWIN-PV 5600120A
VM II-6000 TWIN-PV 8000120A
Maximum AC Charge Current
VM II-4000 TWIN-PV 5600100A
VM II-6000 TWIN-PV 8000100A
Maximum Charging Current
VM II-4000 TWIN-PV 5600120A
VM II-6000 TWIN-PV 8000120A
Maximum PV Input Current
VM II-4000 TWIN-PV 5600122 x 322.7 x 420.3
VM II-6000 TWIN-PV 8000122 x 322.7 x 420.3
PHYSICAL
Dimension, D X W X H (mm)
VM II-4000 TWIN-PV 56009.5
VM II-6000 TWIN-PV 800010.5
Net Weight (kgs)
VM II-4000 TWIN-PV 5600USB/RS232/RS485/Wi-Fi
VM II-6000 TWIN-PV 8000USB/RS232/RS485/Wi-Fi
Communication Port
VM II-4000 TWIN-PV 56005% to 95% Relative Humidity(Non-condensing)
VM II-6000 TWIN-PV 80005% to 95% Relative Humidity(Non-condensing)
OPERATING ENVIRONMENT
Operating Humidity
VM II-4000 TWIN-PV 5600-10℃ to 50℃
VM II-6000 TWIN-PV 8000-10℃ to 50℃
Operating Temperature
VM II-4000 TWIN-PV 5600-15℃ to 60℃
VM II-6000 TWIN-PV 8000-15℃ to 60℃
Storage Temperature
VM II-4000 TWIN-PV 5600-15℃ to 60℃
VM II-6000 TWIN-PV 8000-15℃ to 60℃
Brochure Axpert VM II TWIN
Manual Axpert VM II TWIN (40A)
