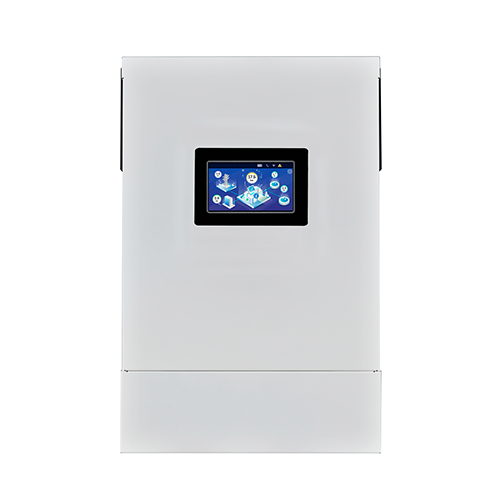

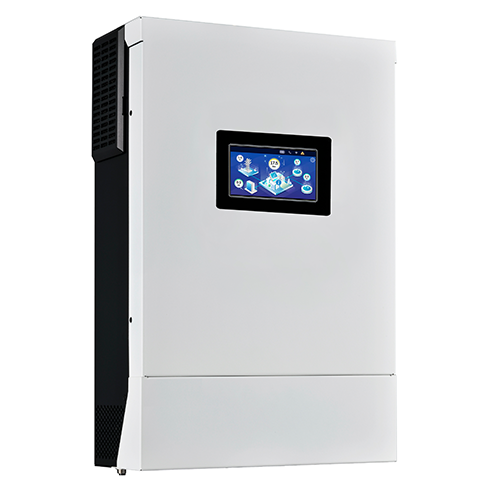

Axpert MKS 5 TWIN
Axpert MKS 5 TWIN features an increased PV power of 9000W and a maximum PV input current of 27A. It offers dual outputs for smart load management and a new colored 4.3 LCD with a user-friendly design. With a wide PV input range of 90- 450VDC, it also includes built-in WiFi with a mobile app for monitoring, a reserved communication port for BMS, a battery-independent function, and parallel operation capability with up to 6 units.
Add to Compare Add to Inquiry
Main Features
  • Increased PV power to 9000W
  • Maximum PV input current 27A
  • Dual outputs for smart load management
  • New colored 4.3 LCD with user-friendly design
  • Wide PV input range 90 ~ 450 VDC
  • Built-in WiFi with an app for mobile monitoring
  • Reserved communication port for BMS
  • Battery-independent function
  • Parallel operation with up to 6 units
General
Rated Power
Axpert MKS 5 TWIN6500VA/6500W
Parallel Capability
Axpert MKS 5 TWINYes, up to 6 units
INPUT
Voltage
Axpert MKS 5 TWIN230 VAC
Selectable Voltage Range
Axpert MKS 5 TWIN170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Frequency Range
Axpert MKS 5 TWIN50/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)
Axpert MKS 5 TWIN230 VAC ± 5%
Efficiency (Peak)
Axpert MKS 5 TWIN93%
Transfer Time
Axpert MKS 5 TWIN10 ms (For Personal Computers); 20 ms (For Home Appliances)
Waveform
Axpert MKS 5 TWINPure Sine Wave
Overload capacity
Axpert MKS 5 TWIN5s@150% load; 10s@110%~150% load; 100ms@≥200% load
BATTERY
Battery Voltage
Axpert MKS 5 TWIN48 VDC
Floating Charge Voltage
Axpert MKS 5 TWIN54 VDC
Overcharge Protection
Axpert MKS 5 TWIN66 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type
Axpert MKS 5 TWINMPPT
Maximum PV Array Open Circuit Voltage
Axpert MKS 5 TWIN500 VDC
Maximum PV Array Power
Axpert MKS 5 TWIN9000 W
MPPT Range @ Operating Voltage
Axpert MKS 5 TWIN90 VDC~450 VDC
Maximum Solar Charge Current
Axpert MKS 5 TWIN120A
Maximum AC Charge Current
Axpert MKS 5 TWIN120A
Maximum PV Input Current
Axpert MKS 5 TWIN27A
PHYSICAL
Dimension, D X W X H (mm)
Axpert MKS 5 TWIN140 x 295 x 468
Net Weight (kgs)
Axpert MKS 5 TWIN12
Communication
Axpert MKS 5 TWINRS232/RS485/WiFi
OPERATING ENVIRONMENT
Operating Humidity
Axpert MKS 5 TWIN5% to 95% Relative Humidity(Non-condensing)
Operating Temperature
Axpert MKS 5 TWIN-10℃ to 50℃
Storage Temperature
Axpert MKS 5 TWIN-15℃ to 60℃
Brochure Axpert MKS 5 TWIN
