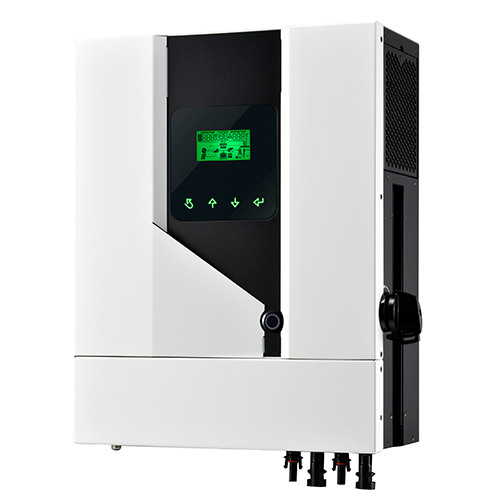

Axpert King II 5KVA/6KVA
Zero transfer time
Axpert King II is designed with zero transfer time perfect for critical devices such as servers and ATMs. It’s equipped with a powerful 100A solar charger, 80A MPPT solar charger, and 100A AC charger. Detachable LCD control module allows users to remotely monitor this inverter. It’s also able to expand power capacity to 45KW with 9 units in parallel operation.
Add to Compare Add to Inquiry
Main Features
  • Zero (0ms) transfer time to protect mission-critical loads such as servers and ATMs
  • High PV input voltage range
  • Removable LCD control module with multiple communications
  • Selectable high power charging current
  • Built-in Wi-Fi for mobile monitoring (App is available)
  • Configurable AC/Solar input priority via LCD setting
  • Reserved communication port for BMS (RS485 or CAN-BUS)
  • Parallel operation up to 9 units
General
Rated Power
Axpert KING II-5000-485000 VA / 5000 W
Axpert KING II-6000-486000 VA / 6000 W
Parallel Capability
Axpert KING II-5000-48Up to 9 units
Axpert KING II-6000-48Up to 9 units
INPUT
Voltage
Axpert KING II-5000-48230 VAC
Axpert KING II-6000-48230 VAC
Voltage Range
Axpert KING II-5000-48110-280 VAC
Axpert KING II-6000-48110-280 VAC
Frequency Range
Axpert KING II-5000-4860/50 Hz (Auto sensing) ± 4Hz
Axpert KING II-6000-4860/50 Hz (Auto sensing) ± 4Hz
OUTPUT
AC Voltage Regulation
Axpert KING II-5000-48230 VAC ± 5%
Axpert KING II-6000-48230 VAC ± 5%
Output THDv
Axpert KING II-5000-48≦ 3% THD( Linear load), ≦ 5% THD( non-linear load)
Axpert KING II-6000-48≦ 3% THD( Linear load), ≦ 5% THD( non-linear load)
Efficiency (Peak)
Axpert KING II-5000-4894 % at Line Mode, 98% at ECO Mode, 92% at Battery Mode
Axpert KING II-6000-4894 % at Line Mode, 98% at ECO Mode, 92% at Battery Mode
Transfer Time
Axpert KING II-5000-480 ms
Axpert KING II-6000-480 ms
Waveform
Axpert KING II-5000-48Pure Sine Wave
Axpert KING II-6000-48Pure Sine Wave
BATTERY
Battery Voltage
Axpert KING II-5000-4840~66 VDC
Axpert KING II-6000-4840~66 VDC
Floating Charge Voltage
Axpert KING II-5000-4854 VDC
Axpert KING II-6000-4854 VDC
Overcharge Protection
Axpert KING II-5000-4866 VDC
Axpert KING II-6000-4866 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger type
Axpert KING II-5000-48MPPT
Axpert KING II-6000-48MPPT
Maximum PV Array Open Circuit Voltage
Axpert KING II-5000-48500VDC
Axpert KING II-6000-48500VDC
Maximum PV Array Power
Axpert KING II-5000-486000 W
Axpert KING II-6000-486000 W
MPPT Range @ Operating Voltage
Axpert KING II-5000-48120 VDC~430 VDC
Axpert KING II-6000-48120 VDC~430 VDC
Maximum Solar Charge Current
Axpert KING II-5000-48100A
Axpert KING II-6000-48120A
Maximum AC Charge Current
Axpert KING II-5000-48100A
Axpert KING II-6000-48120A
PHYSICAL
Dimension, D X W X H (mm)
Axpert KING II-5000-48140 x 295 x 468
Axpert KING II-6000-48140 x 295 x 468
Net Weight (kgs)
Axpert KING II-5000-4812
Axpert KING II-6000-4812
Communication Port
Axpert KING II-5000-48USB/RS232/RS485/WI-FI/Dry-contact
Axpert KING II-6000-48USB/RS232/RS485/WI-FI/Dry-contact
OPERATING ENVIRONMENT
Operating Humidity
Axpert KING II-5000-485% to 95% Relative Humidity(Non-condensing)
Axpert KING II-6000-485% to 95% Relative Humidity(Non-condensing)
Operating Temperature
Axpert KING II-5000-48-10°C to 50°C
Axpert KING II-6000-48-10°C to 50°C
Storage Temperature
Axpert KING II-5000-48-15°C to 60°C
Axpert KING II-6000-48-15°C to 60°C
