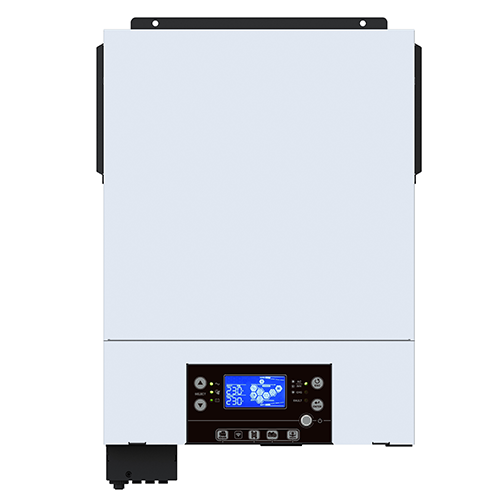

Axpert VM III TWIN 4KW/6KW
Dual outputs for smart load management
Axpert VM III TWIN is occupied with two outputs. The second output can be scheduled on/off, setting cut-off voltage or SOC and discharging time via LCD setting. It facilitates users smart load control. Designed with 27A PV input current, Axpert VM III TWIN is compatible with the market trend of increased Imp in solar panels. It also allows a wide PV input voltage range from 60VDC to 450VDC. These features allow fewer solar panels required in the system and save space.
Add to Compare Add to Inquiry
Main Features
  • • Detachable LCD control module with various communications
  • • Maximum PV input current 27A
  • • Dual output for smart load management
  • • Built-in WiFi for mobile monitoring (App is available)
  • • Supports USB On-the-Go function
  • • Reserved communication port (RS485, CAN-BUS or RS232) for BMS
  • • Battery independent design
  • • Battery equalization extends lifecycle
  • • User-friendly LCD operation
  • • Replaceable fan design for ease of maintenance
General
Rated Power
Axpert VM III TWIN 4K4000VA/4000W
Axpert VM III TWIN 6K6000VA/6000W
INPUT
Voltage
Axpert VM III TWIN 4K230 VAC
Axpert VM III TWIN 6K230 VAC
Selectable Voltage Range
Axpert VM III TWIN 4K170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Axpert VM III TWIN 6K170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Frequency Range
Axpert VM III TWIN 4K50 Hz/60 Hz (Auto sensing)
Axpert VM III TWIN 6K50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)
Axpert VM III TWIN 4K230 VAC ± 10%
Axpert VM III TWIN 6K230 VAC ± 10%
Surge Power
Axpert VM III TWIN 4K8000VA
Axpert VM III TWIN 6K12000VA
Efficiency (Peak)
Axpert VM III TWIN 4K90%~93%
Axpert VM III TWIN 6K90%~93%
Transfer Time
Axpert VM III TWIN 4K10 ms (For Personal Computers); 20 ms (For Home Appliances)
Axpert VM III TWIN 6K10 ms (For Personal Computers); 20 ms (For Home Appliances)
Waveform
Axpert VM III TWIN 4KPure Sine Wave
Axpert VM III TWIN 6KPure Sine Wave
BATTERY
Battery Voltage
Axpert VM III TWIN 4K24 VDC
Axpert VM III TWIN 6K48 VDC
Floating Charge Voltage
Axpert VM III TWIN 4K27 VDC
Axpert VM III TWIN 6K54 VDC
Overcharge Protection
Axpert VM III TWIN 4K33 VDC
Axpert VM III TWIN 6K63 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type
Axpert VM III TWIN 4KMPPT
Axpert VM III TWIN 6KMPPT
Maximum PV Array Open Circuit Voltage
Axpert VM III TWIN 4K500 VDC
Axpert VM III TWIN 6K500 VDC
Maximum PV Array Power
Axpert VM III TWIN 4K5000W
Axpert VM III TWIN 6K6000W
MPPT Range @ Operating Voltage
Axpert VM III TWIN 4K60-450 VDC
Axpert VM III TWIN 6K60-450 VDC
Maximum Solar Charge Current
Axpert VM III TWIN 4K120A
Axpert VM III TWIN 6K120A
Maximum AC Charge Current
Axpert VM III TWIN 4K100A
Axpert VM III TWIN 6K100A
Maximum Charging Current
Axpert VM III TWIN 4K120A
Axpert VM III TWIN 6K120A
PHYSICAL
Dimension, D X W X H (mm)
Axpert VM III TWIN 4K115 x 300 x 435
Axpert VM III TWIN 6K115 x 300 x 435
Net Weight (kgs)
Axpert VM III TWIN 4K9
Axpert VM III TWIN 6K10
Communication Port
Axpert VM III TWIN 4KUSB, RS-232,RS-485,WiFi,Dry-contact
Axpert VM III TWIN 6KUSB, RS-232,RS-485,WiFi,Dry-contact
OPERATING ENVIRONMENT
Operating Humidity
Axpert VM III TWIN 4K5% to 95% Relative Humidity(Non-condensing)
Axpert VM III TWIN 6K5% to 95% Relative Humidity(Non-condensing)
Operating Temperature
Axpert VM III TWIN 4K-10℃ to 50℃
Axpert VM III TWIN 6K-10℃ to 50℃
Storage Temperature
Axpert VM III TWIN 4K-15℃ to 60℃
Axpert VM III TWIN 6K-15℃ to 60℃
Brochure Axpert_VM_III_TWIN
Manual Axpert VM III-4K&6K-TWIN-off-grid-with-anti_manual
