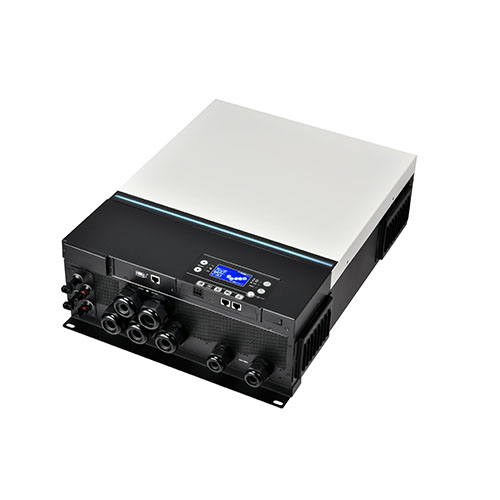

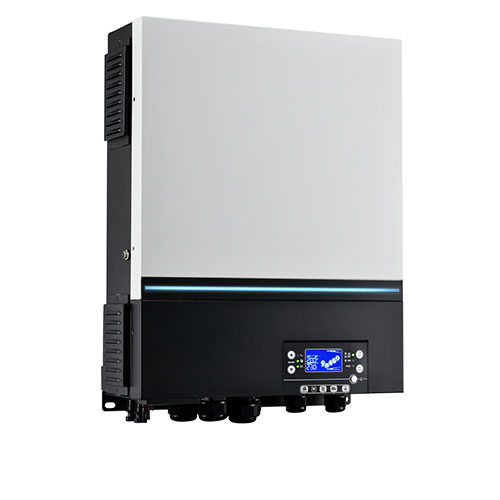

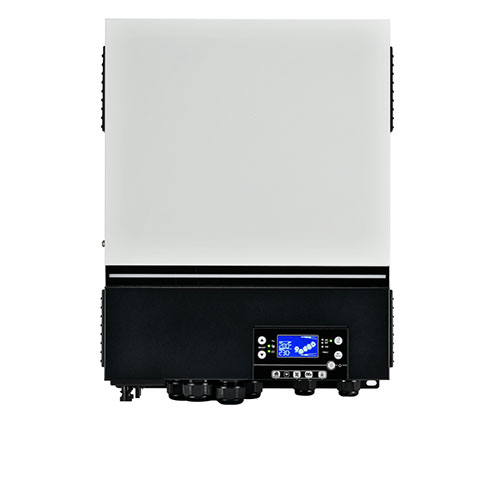

Axpert MAX TRI
Dual inputs and three outputs inverter
Axpert MAX TRI features dual inputs and triple outputs for smart energy management, with RGB lights for status indication. The 12K model now supports a maximum PV current of 60A. It offers built-in Wi-Fi for mobile monitoring, over-the-air (OTA) firmware updates, and USB On-the-Go functionality for log exporting and firmware upgrades. It includes a reserved communication port for BMS (RS485, CAN-BUS, or RS232), is battery-independent, and allows configurable AC/PV output usage timer and prioritization. An external CT sensor is built-in to ensure 100% self-usage applications, along with an anti-dust kit and parallel operation support for up to 6 units.
Add to Compare Add to Inquiry
Main Features
  • Dual inputs and three outputs for smart energy management
  • Status indication with RGB lights
  • Upgrade the maximum PV current to 60A for the 12K model
  • Built-in Wi-Fi for mobile monitoring and OTA firmware
  • Supports USB (Type-A or Type-C) On-the-Go function for exporting log and firmware upgrade
  • Reserved communication port for BMS (RS485, CAN-BUS, or RS232)
  • Battery-independent design
  • Configurable AC/PV output usage timer and prioritization
  • Built-in External CT sensor to guarantee 100% self-usage application
  • Built-in anti-dust kit
  • Parallel operation with 6 units
General
Rated Power
Axpert MAX TRI 11K11000 VA / 11000 W
Axpert MAX TRI 12K12000 VA / 12000 W
Parallel Capability
Axpert MAX TRI 11KYes, 6 units
Axpert MAX TRI 12KYes, 6 units
INPUT
Voltage
Axpert MAX TRI 11K230 VAC
Axpert MAX TRI 12K230 VAC
Voltage Range
Axpert MAX TRI 11K170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliance)
Axpert MAX TRI 12K170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliance)
Frequency Range
Axpert MAX TRI 11K50/60 Hz (Auto sensing)
Axpert MAX TRI 12K50/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation
Axpert MAX TRI 11K230 VAC ± 5%
Axpert MAX TRI 12K230 VAC ± 5%
Surge Power
Axpert MAX TRI 11K22000 VA
Axpert MAX TRI 12K24000 VA
Efficiency (Peak)
Axpert MAX TRI 11K93%
Axpert MAX TRI 12K93%
Transfer Time
Axpert MAX TRI 11K10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Axpert MAX TRI 12K10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform
Axpert MAX TRI 11KPure Sine Wave
Axpert MAX TRI 12KPure Sine Wave
DC Voltage
Axpert MAX TRI 11K12 VDC ± 5%, 100W
Axpert MAX TRI 12K12 VDC ± 5%, 100W
BATTERY
Battery Voltage
Axpert MAX TRI 11K48 VDC
Axpert MAX TRI 12K48 VDC
Floating Charge Voltage
Axpert MAX TRI 11K54 VDC
Axpert MAX TRI 12K54 VDC
Overcharge Protection
Axpert MAX TRI 11K63 VDC
Axpert MAX TRI 12K63 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger type
Axpert MAX TRI 11KMPPT
Axpert MAX TRI 12KMPPT
Maximum PV Array Open Circuit Voltage
Axpert MAX TRI 11K500 VDC
Axpert MAX TRI 12K500 VDC
Maximum PV Array Power
Axpert MAX TRI 11K12000W (6000W x 2)
Axpert MAX TRI 12K18000W (Max. 12000W per tracker)
MPPT Range @ Operating Voltage
Axpert MAX TRI 11K90~450 VDC
Axpert MAX TRI 12K90~450 VDC
Maximum Solar Charge Current
Axpert MAX TRI 11K150A
Axpert MAX TRI 12K200A
Maximum AC Charge Current
Axpert MAX TRI 11K150A
Axpert MAX TRI 12K200A
Maximum Charging Current
Axpert MAX TRI 11K150A
Axpert MAX TRI 12K200A
Maximum PV Input Current
Axpert MAX TRI 11K27A x 2 (MAX 40A)
Axpert MAX TRI 12K40A/27A (MAX 60A)
PHYSICAL
Dimension, D X W X H (mm)
Axpert MAX TRI 11K147.4 x 432.5 x 553.6
Axpert MAX TRI 12K147.4 x 432.5 x 553.6
Net Weight (kgs)
Axpert MAX TRI 11K18.5
Axpert MAX TRI 12K21
Communication Port
Axpert MAX TRI 11KUSB/RS232/RS485/Wifi/Dry-contact
Axpert MAX TRI 12KUSB/RS232/RS485/Wifi/Dry-contact
OPERATING ENVIRONMENT
Operating Humidity
Axpert MAX TRI 11K5% to 95% Relative Humidity(Non-condensing)
Axpert MAX TRI 12K5% to 95% Relative Humidity(Non-condensing)
Operating Temperature
Axpert MAX TRI 11K-10°C to 50°C
Axpert MAX TRI 12K-10°C to 50°C
Storage Temperature
Axpert MAX TRI 11K-15°C to 60°C
Axpert MAX TRI 12K-15°C to 60°C
STANDARD
Compliance Safety
Axpert MAX TRI 11KIEC 62109, IEC 61683, EN/IEC 61000-6-2, 61000-6-4, 61000-3-11, 61000-3-12
Axpert MAX TRI 12KIEC 62109, IEC 61683, EN/IEC 61000-6-2, 61000-6-4, 61000-3-11, 61000-3-12
